Quick Details
-
Brand Name:
-
E-TOUCH
-
Dimension(L*W*H):
-
13*5.2*1.5
-
Weight:
-
35 KG
-
size:
-
13*5.2*1.5
-
weight:
-
35T
-
Color:
-
Customers' Request
-
Power:
-
160kw
-
pipe diameter:
-
325/273
-
Working capacity:
-
80-110
-
Water flow:
-
550m3/h
-
Material:
-
Cr27
-
lift:
-
32m
-
mud transport distance:
-
600m
Quick Details
-
Dredging Depth:
-
6 m
-
Draught:
-
100 cm
-
Place of Origin:
-
China
-
Brand Name:
-
E-TOUCH
-
Dimension(L*W*H):
-
13*5.2*1.5
-
Weight:
-
35 KG
-
size:
-
13*5.2*1.5
-
weight:
-
35T
-
Color:
-
Customers' Request
-
Power:
-
160kw
-
pipe diameter:
-
325/273
-
Working capacity:
-
80-110
-
Water flow:
-
550m3/h
-
Material:
-
Cr27
-
lift:
-
32m
-
mud transport distance:
-
600m

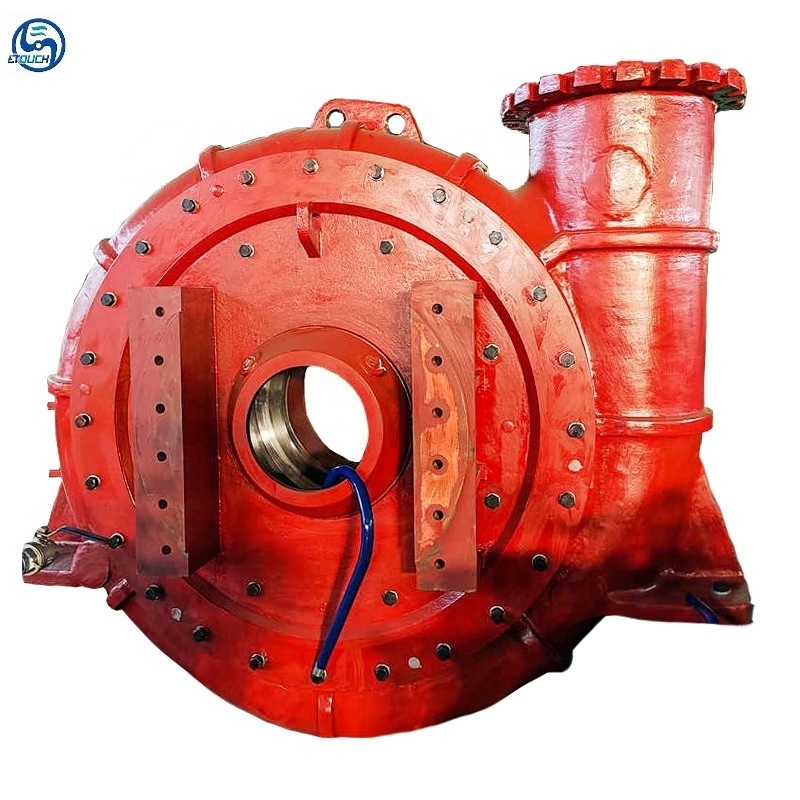

River Sand Small Solid Transfer Dredging Centrifugal Gold sand Mining Dredge 4 Inch Gravel Pump
Product Description
WN series of dredging pump,which is designed and researched by our company--E-Touch is one new type dredging pump,making full use of advanced CAD software,aiming to China's river,lake and sea situation,they are in great need to dredge and fill hydraulically.
This series of dredging pump has characteristic features:easy installation,long life service,high efficiency,reliable bearing
lining and good economical efficiency...This type of pump can meet dredging ship's requirements completely and each set of dredging pump has passed the inspection issued by CCS.
This series of dredging pump has characteristic features:easy installation,long life service,high efficiency,reliable bearing
lining and good economical efficiency...This type of pump can meet dredging ship's requirements completely and each set of dredging pump has passed the inspection issued by CCS.
Main Features
1) Advanced hydraulic model,CAD-aided design,high efficiency and remarkable energy-saving effect.
2) Strong flow capacity.The pump can pump gravel,high plastic clay lumps and so on.Dredge pump is generally equipped with three vanes or five vanes,used to handle different particle size respectively.
3) Strong matching capacity.The diesel engine and the motor are both available.
4) Small size,light weight.
The whole machine and every component of the dredge pump all adopt optimization design and strength analysis,this can greatly reduce the pump weight by minimizing unnecessary auxiliary structure and process structure on the premise of satisfying the performance and application requirements.
5) Stable running,small vibration and low noise.
6) Simple structure,easy to dismantle and maintain.
7) The parts have long service life.
8) Reliable seal,no leakage.
9) The whole machine has high reliability and remarkable economic benefits.
10) The steep drop type of performance curve.
The structural drawing of WN series ,wear-resistant dredging pump
Specifications
|
WN series dredge pump performance parameters
|
|
|
|
|
|
|
|
|
||||||||
|
Type
|
Capacity
(m3/h)
|
Head(m)
|
Speed
(r/min)
|
Efficiency(%)
|
NPSHr
(m）
|
Inlet Diameter(mm)
|
Outlet Diameter(mm)
|
Max. Diameter of Flowed Partice(mm)
|
||||||||
|
200WND
|
600-800
|
20-40
|
700-900
|
60-65
|
＜4.5
|
250
|
200
|
178
|
||||||||
|
200WN
|
750-1000
|
40-65
|
700-850
|
70-72
|
＜4
|
250
|
200
|
180
|
||||||||
|
250WND
|
950-1100
|
20-40
|
500-700
|
65-70
|
＜4
|
300
|
250
|
220
|
||||||||
|
250WN
|
1100-1300
|
40-65
|
500-650
|
70-74
|
＜4
|
350
|
250
|
144
|
||||||||
|
300WND
|
1500-1800
|
20-40
|
400-600
|
65-68
|
＜4
|
350
|
300
|
241
|
||||||||
|
300WN
|
1800-2200
|
40-65
|
400-550
|
74-78
|
＜4
|
450
|
300
|
241
|
||||||||
|
350WN
|
2600-3000
|
40-65
|
400-550
|
74-78
|
＜4.5
|
450
|
350
|
245
|
||||||||
|
400WN
|
2800-3200
|
20-40
|
400-550
|
74-78
|
＜4.5
|
450
|
400
|
250
|
||||||||
|
450WN
|
3200-3850
|
40-67
|
350-500
|
76-80
|
＜4.5
|
600
|
450
|
354
|
||||||||
|
500WND
|
3600-4200
|
20-40
|
220-320
|
72-75
|
＜4.8
|
600
|
500
|
330
|
||||||||
|
500WN
|
4500-5500
|
40-65
|
350-450
|
78-80
|
＜4.8
|
650
|
500
|
250
|
||||||||
|
600WN
|
5000-9000
|
55-80
|
280-420
|
81-85
|
＜6
|
660
|
600
|
220
|
||||||||
|
700WN
|
8000-12000
|
60-85
|
280-380
|
83-85
|
＜6
|
760
|
700
|
280
|
||||||||
|
900WN
|
12000-19000
|
50-75
|
280-330
|
85-87
|
＜6
|
960
|
900
|
320
|
||||||||
|
1000WN
|
16000-25000
|
23-76
|
181-290
|
85-87
|
＜6
|
1200
|
1000
|
350
|
||||||||
We continuously improve all aspects of our products technologies to push our boundaries by developing new value, adding services ,technologies & solutions on the Dredging, Marine, offshore industry. We dedicate to provide our clients reliable, innovative and cost effective products and services all over the world.
Our Advantages
Product Details
Pump parts
Our Company
SHANDONG E-TOUCH SHIPPING ENGINEERING Is on the base of first-rate ship technological to previde ships and dredgers for worldwide customers from dredging industry.We give support on dredging project analysis, assistance to help clients improving their working efficiency to get high rate profit return.We are managing up one stop purchase and service for international marine and engineering clients.
* Supporting international clients to get full solution on different dredgers, ships design and manufacturing assist in Clients local dockyard.
* Providing dredging project analysis, assistance and services to help overseas clients improving working efficient.
Workshop
Certifications
Customer Visit And Exhibition
Our Service
Pre-Sales Service
* 24H/7D online support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
FAQ
Q1:ho are we?
We are based in Shandong, China, start from 2018,sell to Southeast Asia(45%), Africa(20%),America(10%),Middle East(15%), Europe(7%),Domestic Market(3%).
Q2:Can we visit your factory?
Sure, we sincerely welcome you to visit and check our factory, we would show you around of our workshop.
Q3:What's your main products?
Dredgers, dredge pump, crane, dredging pipe, pump parts,etc.
Q4: Do you also supply the accessories of dredgers?
Yes, we have cooperated companies to supply you the pipes, floaters and other spare parts.
Q5:how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
Q6:why should you buy from us not from other suppliers?
We had exported more than 28 countries With a warm energetic professional service team.We have nearly 20 years experience in producing dredging rubber hose,dredging suction hose,dredging HDPE pipe and floaters. We are the best choice for the dredging pipeline supplier in the world. We have professional workshop and we could produce any specification,shape and size according to customers' requirements.
Q7:what services can we provide?
We believe in building a relationship with our customers and therefore SHANDONG E-TOUCH offers global service.Our service team consists of highly skilled and experienced professionals and dredging specialists who can provides the best desired dredgers and integrated dredging solutions according to the customer's specific project. E-TOUCH also provide technical supports such as operational skills training, repair technology teaching.
