Quick Details
-
Brand Name:
-
DEGUANG
-
Weight:
-
14000 kg
-
Dimension(L*W*H):
-
5300*4050*2600
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support
-
Certificate:
-
CE, ISO
-
unwinder loading:
-
hydraulic
-
max. width of material:
-
2600mm
-
max. diameter of material:
-
1800mm
-
max. rewind diameter:
-
1500mm
-
slitting speed:
-
500m/min.
-
Total power:
-
23kw
-
Marketing Type:
-
Top quality product
-
Certification:
-
CE, ISO
Quick Details
-
Voltage:
-
380/220V, 50Hz or Customized, 3 phase, 380V/50HZ or customized
-
Power:
-
39 kw
-
Place of Origin:
-
China
-
Brand Name:
-
DEGUANG
-
Weight:
-
14000 kg
-
Dimension(L*W*H):
-
5300*4050*2600
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support
-
Certificate:
-
CE, ISO
-
unwinder loading:
-
hydraulic
-
max. width of material:
-
2600mm
-
max. diameter of material:
-
1800mm
-
max. rewind diameter:
-
1500mm
-
slitting speed:
-
500m/min.
-
Total power:
-
23kw
-
Marketing Type:
-
Top quality product
-
Certification:
-
CE, ISO
Product Application

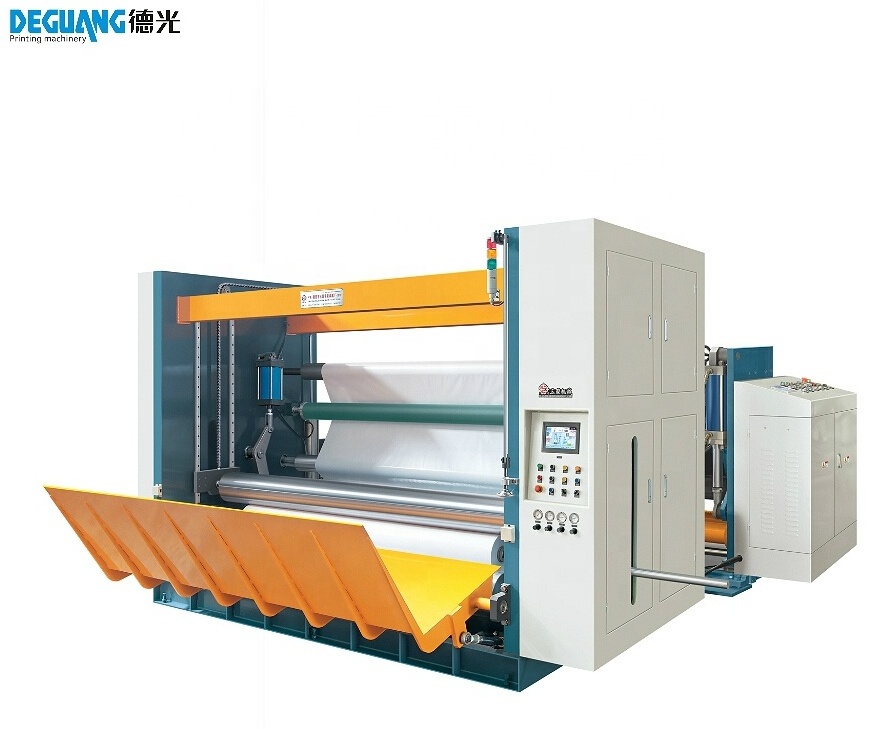

This machine is suitable for kraft paper, copperplate paper, art paper, and other kinds base paper slitting operation.
Main Features
1) Entire machine is controlled by PLC, man-machine interface, screen touch operation.
2) Unwind part adopts imported Italian pneumatic brake control,the rolling diameter is automatically calculated by PLC, to achieve constant tension control.
3) Rewind part of the discharge using pneumatic pusher, hydraulic lifting platform structure.
4) Unwind part adopts hydraulic power feed, shaftless, which can save much labour force, and shorten time.
5) Auto meter presetting, EPC error correction device is positive to assure accuracy. Optical correction can choose hydaulic.
6) The feature of machine is stability, security, efficient, etc.
