Quick Details
-
Rated Input Voltage:
-
220 V
-
Rated Output Current (MIG):
-
200A
-
Rated Output Voltage (MIG):
-
20 V
-
Wire Feeding Speed:
-
15 m/min
-
Place of Origin:
-
China
-
Brand Name:
-
Fengbao
-
Use:
-
welding
-
Weight (KG):
-
18 KG
-
Year:
-
2021
-
Non-load Voltage:
-
60V
-
LIFT TIG WELDING PROCESS:
-
YES
-
Duty cycle (%) @ 30℃:
-
60%
-
Efficiency:
-
85%
-
Class of Insulation:
-
F
-
Shell protection grade:
-
IP21S
-
Suggested Welding Wire Dia.:
-
0.6mm/0.8mm/1.0mm
-
Certification:
-
CE
-
Marketing Type:
-
NEW PRODUCT2021
Quick Details
-
Wire Melting Type:
-
Short Circuit Transfer
-
Max. Load Power Capacity:
-
6.5KW
-
Rated Duty Cycle @40°C (MIG):
-
60%
-
Rated Input Voltage:
-
220 V
-
Rated Output Current (MIG):
-
200A
-
Rated Output Voltage (MIG):
-
20 V
-
Wire Feeding Speed:
-
15 m/min
-
Place of Origin:
-
China
-
Brand Name:
-
Fengbao
-
Use:
-
welding
-
Weight (KG):
-
18 KG
-
Year:
-
2021
-
Non-load Voltage:
-
60V
-
LIFT TIG WELDING PROCESS:
-
YES
-
Duty cycle (%) @ 30℃:
-
60%
-
Efficiency:
-
85%
-
Class of Insulation:
-
F
-
Shell protection grade:
-
IP21S
-
Suggested Welding Wire Dia.:
-
0.6mm/0.8mm/1.0mm
-
Certification:
-
CE
-
Marketing Type:
-
NEW PRODUCT2021
Features
:

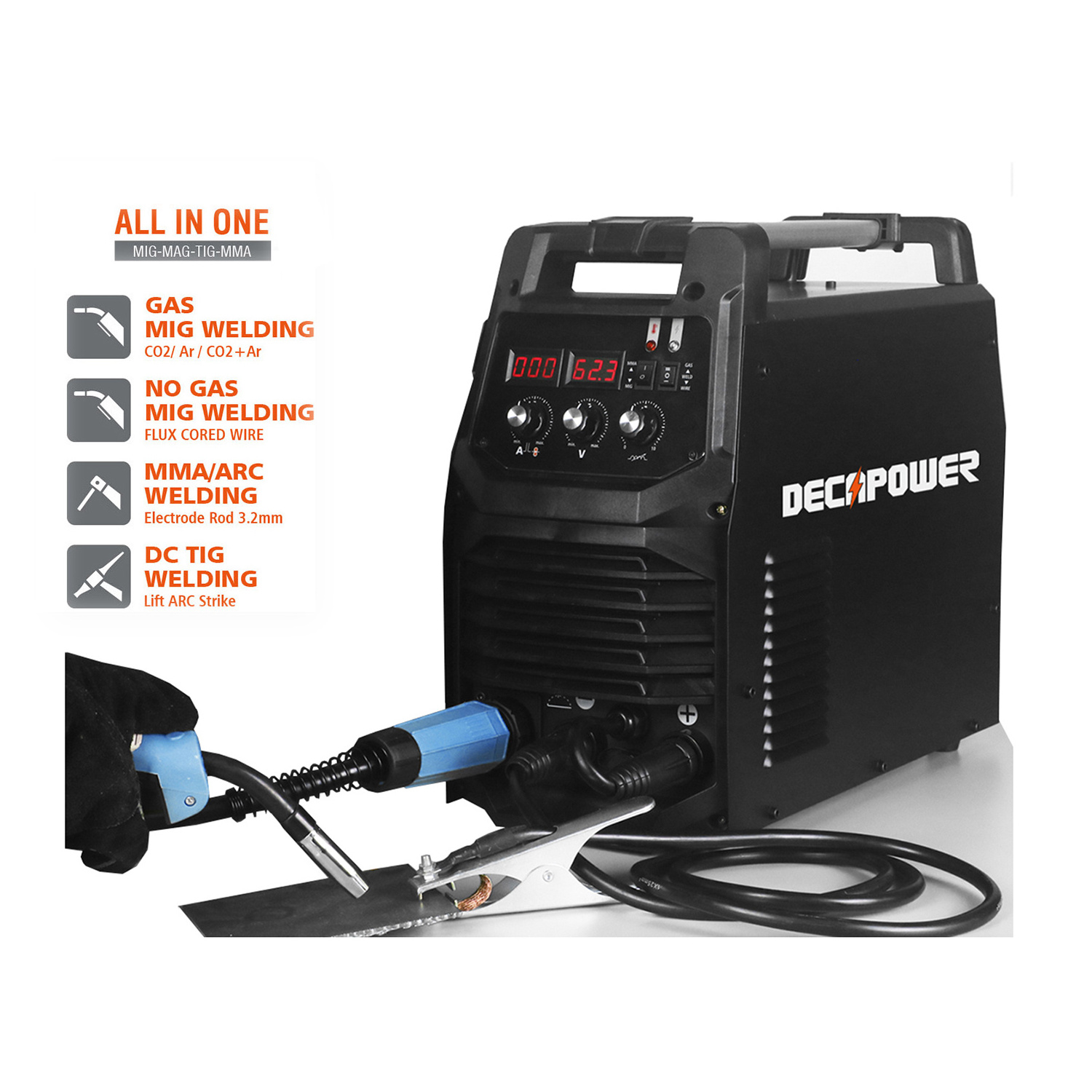

1.4-IN-1 Multi-Process
NEOMIG series welder combos with MIG/MAG, FLUX, MMA and DC LIFT TIG welding process in one unit.
A.Support Solid wire 0.6/0.8/1.0mm
B.Support Flux Cored Wire 0.8/1.0/1.2mm
C.Support Basic/Rutile/Cellulose electrode welding
2.FULL-BRIDGE Circuit Design
As to the Full-Bridge circuit design, it makes more smooth welding, higher working cycle, and longer service life.
3.Inductance Regulation for MIG/MAG welding
A.Adjust the welding softness for satisfying the user's welding habit.
B.Adjust the penetration, ensure the adhesion of the weld bead, realize the consistent penetration of the workpiece, and improve
the welding quality of the workpiece
4.GAS Detection & Quick Wire Feeding for MIG/MAG welding
A.Gas Detection: Check the gas flow before welding, make sure the smooth welding
B.Quick Wire Feeding: Speeding up the wire feeding after assembling the wire, saving the time.
5.Quick ARC-START and Wave Control for MIG/MAG welding
Stabilized the small current transition, Reduce the splash of large current by 70% ~ 80%,
The constant current arc starting improves the arc starting to 100%.
Adopt analog circuit high-speed and accurate control technology, to achieve precise control of each droplet transfer and
high-speed welding.
High penetration rate and excellent weld bridging ability, realize the wide gap welding and high weld quality.
Ultra-low heat input can control the formation of weld and minimize the deformation.
6.Optimize ARC-STOP
Optimize the ARC-STOP for precise control. The process of arc stopping is smooth and fast, it increases the contact area for next welding, and improves the continuity of welding process.
