Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Weight:
-
5000 KG
-
Product name:
-

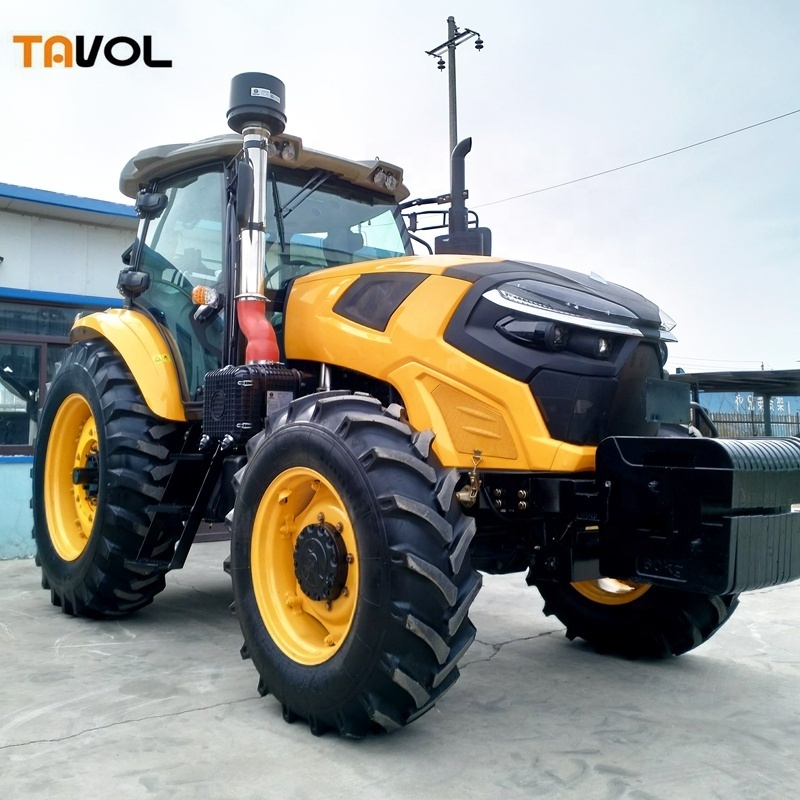

China Compact Tractors Cheap 4X4 Tractor
-
Engine:
-
Yuchai /Weichai/Xinchai
-
Steering:
-
Hydraulic steering
-
Accessories:
-
Front loader /backhoe/implements
-
Engine Model:
-
Diese engine
-
Optional Front/Rear Wheel:
-
Dryland/paddy/radial tire
-
Implements:
-
Supply Farm implements
-
Options:
-
Hood/color/tires
-
MOQ:
-
1 set
Quick Details
-
Rated Power (HP):
-
240HP
-
Brand Name:
-
Tavol
-
Place of Origin:
-
Shandong
-
Marketing Type:
-
Hot Product 2022
-
Weight:
-
5000 KG
-
Product name:
-
China Compact Tractors Cheap 4X4 Tractor
-
Engine:
-
Yuchai /Weichai/Xinchai
-
Steering:
-
Hydraulic steering
-
Accessories:
-
Front loader /backhoe/implements
-
Engine Model:
-
Diese engine
-
Optional Front/Rear Wheel:
-
Dryland/paddy/radial tire
-
Implements:
-
Supply Farm implements
-
Options:
-
Hood/color/tires
-
MOQ:
-
1 set
Product Description
Shandong Tavol Agricultural Machinery Co., Ltd. are Focused on Development Of the Characteristic Agricultural Machinery, Like Paddy Fields, Mountains, Hills etc; High-end Intelligence, Like Unmanned Driving and Beidou Precision Agriculture; also Automation like CVT and Power Gear Shift etc. Products range: 25hp-280hp Farm Tractors and Other Farm Machines.
Specification
|
Model
|
TL1504
|
|
|
|
Type
|
4x4
|
|
|
|
Dimensions(mm)
|
4910x2190x3120
|
|
|
|
Wheelbase(mm)
|
2630
|
|
|
|
Gearbox
|
16F+ 8R Creeper Shift
|
|
|
|
Clutch
|
double acting clutch
|
|
|
|
PTO Speed(r/min)
|
540/760(option: 540/1000 or 760/1000)
|
|
|
|
PTO power (KN)
|
93.8
|
|
|
|
Rated Traction( KN)
|
28
|
|
|
|
Track(mm) |
Front wheel
|
1790,1890,1990,2090
|
|
|
|
Rear wheel
|
1630-2285
|
|
|
Turning circle radius |
Unilateral braking
|
5.2 ±0.3
|
|
|
|
Not unilateral braking
|
6.8±0.3
|
|
|
Weight (KG)
|
6396
|
|
|
|
Minimum ground clearance(mm)
|
495
|
|
|
|
Cylinder
|
6
|
|
|
|
Tire |
Front wheel
|
14.9-26/13.6-24/380-85R26/380-85R26
|
|
|
|
Rear wheel
|
18.4-38/16.9-34/460-85R38/520-70R38
|
|
|
Braking system |
Service brake
|
Wet, disc, hydrostatic
|
|
|
|
Parking brake
|
Independent hand brake
|
|
Assembly Process
Assembly Process: Professional factory, advanced production equipment. The management system is perfect, the source process is firmly grasped, and the product quality is controlled. Strict quality control process: laser blanking-stamping-processing-electrophoresis-coating-assembly.
Tractor Workshop
Packing photo
Main application
Customer site application:
It is widely used for ploughing, rotary-cultivating, sowing, irrigation, spraying, harvesting and transportation etc. In paddy fields, dry land, arid land, orchard and plastic greenhouse.
It is widely used for ploughing, rotary-cultivating, sowing, irrigation, spraying, harvesting and transportation etc. In paddy fields, dry land, arid land, orchard and plastic greenhouse.
Company information
Shandong Tavol Agricultural Machinery Co., Ltd
The Mission of Tavol Group is to Assemble the Best Tractors With the Best of Heart, and Strive for the Smiles of One billion Farmers; With the Values of Tolerance, Openness and Win-Win, Adopt Strict Production Technology and Inspection Standards, Select the Best Quality Brand Tractor Parts. To ensure a 100% Quality Standard, We will Independent Development and Production the Core Tractor Parts, Continue to Increase Investment in New Models and Technologies.
Certifications
Tavol Group is a High-tech Groups Companies, Which Engage in High-end Agricultural Equipment Manufacturing, Construction Machinery and High-precision Monitoring Sensors. Tavol Group is Located at the Foot of the World-famous Mountain Taishan. Has Passed ISO9001, CE, SGS, BV, AAA, WIPO Madrid International Trademark, High-tech Enterprise Certification and Special Equipment Manufacturing License etc.
CE
Angola CNCA
Madrid Trademark
