Quick Details
-
Weight (KG):
-
85 KG
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
380V ,415
-
Power (kW):
-
4 kW
-
Applicable Industries:
-
Chemical industry, Environmental friendly
-
Product name:
-
Hyperboloid mixer
-
Motor:
-
380V/415V
-
Speed:
-
20-50rpm
-
Motor power:
-
4-7.5kw
Quick Details
-
Barrel Volume (L):
-
10000
-
Max. Loading Volume (L):
-
10000 L
-
Range of Spindle Speed(r.p.m):
-
20 - 40 r.p.m
-
Weight (KG):
-
85 KG
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
380V ,415
-
Power (kW):
-
4 kW
-
Applicable Industries:
-
Chemical industry, Environmental friendly
-
Product name:
-
Hyperboloid mixer
-
Motor:
-
380V/415V
-
Speed:
-
20-50rpm
-
Motor power:
-
4-7.5kw
Product information
Submersible Sewage Hyperboloid Industrial Mixer Agitator

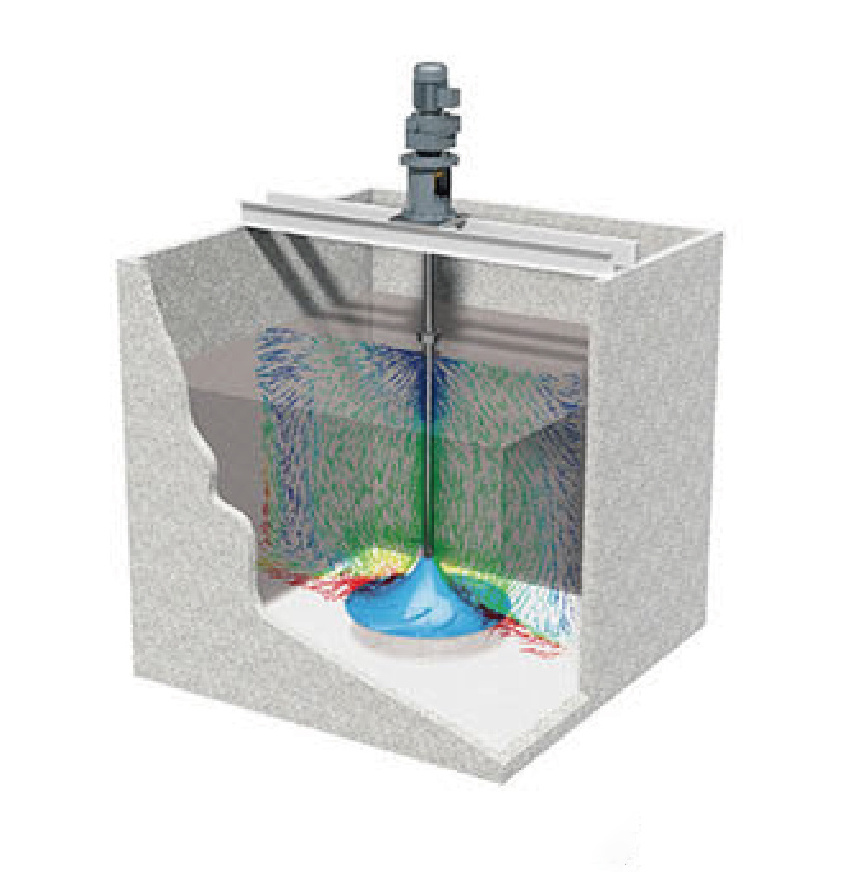

The Hyperboloid Agitator Mixers, the upper surface of the curved impeller body is hyperbolic, and the hyperboloid structure formed by the generatrix rotating around the impeller body line. Its structure and the installation position close to the pool determine its anti-settling effect and large- area water exchange. it was developed and designed especially for applications in the area of water and wastewater treatment.
In addition, Hyperboloid Industrial Mixer can provide optimal solution for mixing and agitating where the solid, liquid and gas need interflowing, like precipitation tank, equalization tank, anaerobic tank, nitration tank, and denitrifying tank. It is widely applied in wastewater treatment, chemistry , energy and light industry.
Working Conditions
.
1、The temperature of the liquid is generally 0-42°C;
2、The PH range: 5-9;
3、The density of the liquid does not exceed 1150kg/m3;
4、The maximum working depth generally does not exceed 10 meter;
5、The minimum working depth is not less than 0.9 meter;
6、Interval start time is not less than 10min.
Product Details
Advantage
Complete mixing, high efficiency, low energy consumption and no dead angle.
Simple structure, easy to install and maintain.
Used for various water treatment processes, more superior mixing effect.
Large specific surface area impeller with small motor, more energy saving.
The stirring shaft is spray-coated with fiberglass material, which is light and corrosion-resistant.
|
Model
|
SQM1500
|
SQM2000
|
SQM2500
|
|
Impeller diameter(mm)
|
1500
|
2000
|
2500
|
|
Rotary speed(rpm)
|
30-60rpm
|
20-40rpm
|
20-40rpm
|
|
Power(kW)
|
1.5-4kw
|
3-5.5KW
|
4-7.5kw
|
|
Service area(m)
|
3-6m
|
6-14m
|
10-18
|
