according to customer requirements.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
5.5kw
-
Weight (KG):
-
540
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KL
-
Voltage:
-
380V
-
Power:
-
5.5kw
-
Weight (KG):
-
540
Product Description

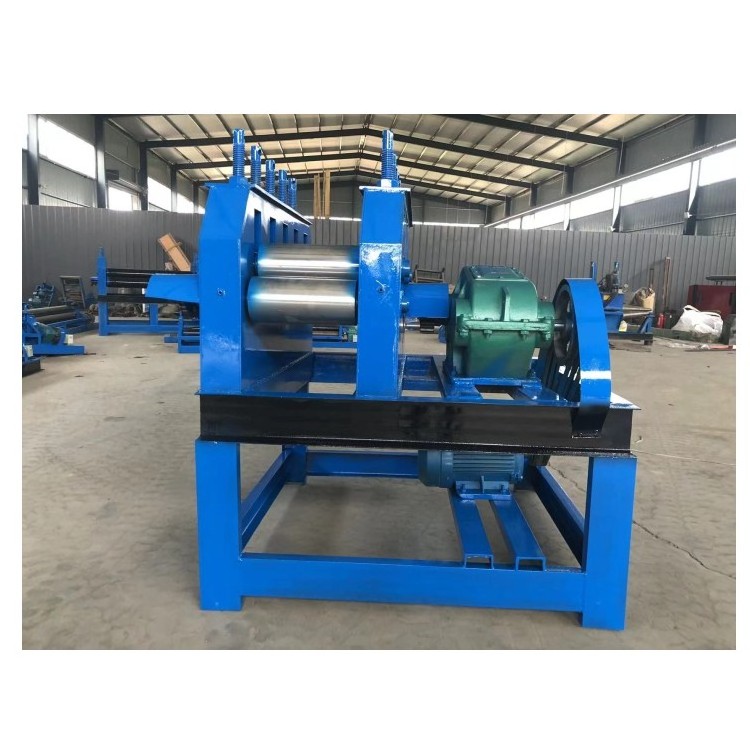

Steel Plate Leveling Machine
The Steel plate leveling machine is also called a straightening machine. It is placed between the material rack (or cutting and welding machine) and the feeder. The shape of the leveling machine mainly depends on the thickness, material and requirements of thestrip to be calibrated. The thicker the material The required structural rigidity is better, the fewer the number of series, the larger the diameter, the greater the power, and viceversa.There are many types of leveling machines to choose from, and you can chooseaccording to your needs.
Steel plate leveling machine
Suitable for the leveling of cold-rolled sheets, galvanized sheets, stainless steel sheets and other metal plates.
Specification
|
Model
|
KLF-1300
|
KLF-1600
|
|
Voltage
|
380v
|
380v,50hz,3phase
|
|
Motor
|
1.5kw
|
5.5kw
|
|
Speed reducer
|
80 model
|
250 model
|
|
Shaft length
|
1.3m
|
1.6m
|
|
Shaft outer diameter
|
90
|
133
|
|
Processable steel plate thickness range
|
1-6mm
|
1-6mm
|
Product Details
There are two types of rollers: solid and hollow. The hollowmaterial has a variety of wall thicknesses, and it can also be made into rubber rollers, all of which are customized
Low noise and small vibration, stable operation and not easyto damage.
It is used for deceleration in the machine, and can also be used to increase the speed in combination with the motor to reducethe output torque.
Resistor regulator
Gears are transmission parts, used to transmit power andmovement, and have the functon of changing the speed andsteering.
Machine display
Packing & Delivery
