Quick Details
-
Input Voltage:
-
12V
-
Current Draw:
-
12V/500mA
-
Singnal Output:
-
Without
-
Lock Size:
-
250L*48W*25H(mm)
-
Armature Plate:
-
180L*38W*11H(mm)
-
Suitable for:
-
Wooden door, Glass door, Metal door, Fireproof door
-
Weight:
-
1.95 kg
-
Warranty:
-
3 Year
-
Certification:
-
CE / Rohs
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Nordson
-
Holding Force:
-
280 kg / 600 lbs
-
Input Voltage:
-
12V
-
Current Draw:
-
12V/500mA
-
Singnal Output:
-
Without
-
Lock Size:
-
250L*48W*25H(mm)
-
Armature Plate:
-
180L*38W*11H(mm)
-
Suitable for:
-
Wooden door, Glass door, Metal door, Fireproof door
-
Weight:
-
1.95 kg
-
Warranty:
-
3 Year
-
Certification:
-
CE / Rohs

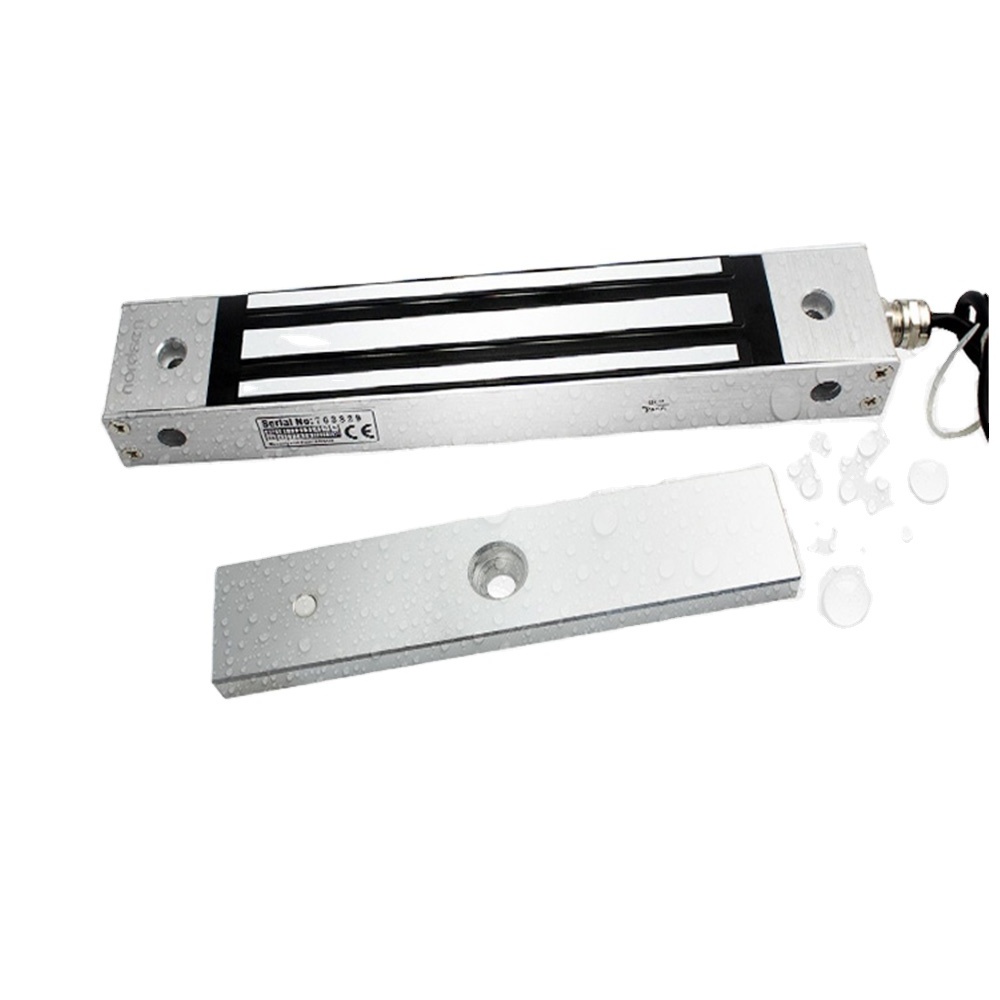

Waterproof Gate lock of Electric Magnetic, 600 Lbs Holding Force
Product Description
| Holding Force | 280kg(600Lbs) |
| Waterproof grade | IP65 |
| LED | NO |
| Lock Status Sensors | Dry contact NO,NC,COM |
| Rated Operating Voltage | 12/24VDC |
| Current consumption | 12V/500mA 24V/250mA |
| Optional Functions | Relock Delay Timer,Buzzer |
| Surface finish for magnet | Zinc plated |
| Surface finish for armature plate | Zinc plated |
| Ambient temperature in °C | -10~+55℃(14-131F) |
| Suitable for | Wooden & Aluminum & Glass & Fireproof &Metal |
| Magnets Dimensions(L x W x D) | 250Lx48Wx25H(mm) |
| Armature Plate Dimensions(L x W x D) | 180L*38W*11H(mm) |
| Weight in kg | 2.0kg |
| CE-mark for building | Yes |
| Rohs-mark for building | Yes |
1.Waterproof,outdoor magnetic lock,passed 600lbs super static linear tension tests.
2.Anti-residual magnetic design,keep constant tension.
3.Built-in reverse current protection device (MOV), performance stability ,safety coefficient is higher.
4.Wear materials, durable.
5.waterproof, whole sealing treatment.
6.Suitable for Indoor and outdoor.
7.Electromagnetic suction work completely, there is no mechanical failure.
8.Shell with high strength alloy material, anode hardening treatment.
9.lock body with double insulation treatment.
10.Through the European CE and ROHS, MA certification in China.
