Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
PAMAENS
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
0.2 KG
-
Working Temperature Range:
-
-50 - 950 ℃
-
Material:
-
Cartridge Heater with Built in Thermocouple, SUS304/SUS316L/Incoloy 800/Titanium etc
-
Core Components:
-
Cartridge Heater with Built in Thermocouple
-
Product name:
-
Cartridge Heater with Built in Thermocouple
-
Insulation of cartridge heater:
-
Compacted magnesium Oxide
-
Heating conductor:
-
NiCr8020
-
Power density:
-
Maxi 50W/CM2
-
Temperature resistance:
-
800 centi degree
-
Size tolerance:
-
Less than 0.6mm
-
Thermocouple (optional):
-
J type, K type etc
Quick Details
-
Type:
-
Cartridge Heater with Built in Thermocouple
-
Power Source:
-
Electric
-
Voltage:
-
6v to 650v, 6V to 650v
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
PAMAENS
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
0.2 KG
-
Working Temperature Range:
-
-50 - 950 ℃
-
Material:
-
Cartridge Heater with Built in Thermocouple, SUS304/SUS316L/Incoloy 800/Titanium etc
-
Core Components:
-
Cartridge Heater with Built in Thermocouple
-
Product name:
-
Cartridge Heater with Built in Thermocouple
-
Insulation of cartridge heater:
-
Compacted magnesium Oxide
-
Heating conductor:
-
NiCr8020
-
Power density:
-
Maxi 50W/CM2
-
Temperature resistance:
-
800 centi degree
-
Size tolerance:
-
Less than 0.6mm
-
Thermocouple (optional):
-
J type, K type etc
Cartridge Heater with Built in Thermocouples are used largely used to heat liquid, solid or gas, the application in plastic industry is very wide, such as hot runner system,smallmould heating ,plastic package ,Medical equipment plastic ,plastic injection molding machine nozzle heating, Package and cartridge is also used in the cigarette industry, footwear industry, thermoforming machinery.
240v, 400w swaged cartridge heater is swaged for maximum heat transfer, which provides optimum temperature control. This heater is built for greater efficiency, featuring a stainless steel sheath that is ideal for oxidation resistance for many environments. The cartridge heater also features a magnesium oxide interior for maximum dielectric strength and thermal conductivity. Various sizes available. Top of the line design guarantees a long product life. Cartridge heaters are commonly used in the packaging and injection molding industries but are also suitable for applications involving hot-melt glue sealing machines, 3-D printing, mass spectrometry, tank heating, HVAC compressors, air ducts, food service, and more.
Datasheet of Cartridge Heater with Built in Thermocouple
| Sheath material | SUS304,321,316,Incoloy800,840 |
| Wattage Tolerance | +5%, -10% |
| Resistance tolerance | +10%, -5% |
| Voltages available | 380V,240V, 220V,110V,36V,24V or 12V |
| Max operating temp | 950ºC |
| Length tolerance | ±1 mm |
| Diameter tolerance | -0.02mm |
| Standard Cold Zone | 5-10mm |
| Thermocouple Location | type J or K are available |
| Insulation resistance (cold) | ≥ 500 MΩ |
| Maximum leakage current (cold) |
≤ 0.5 mA
|
-
Tube diameter: Φ3mm-Φ30mm
-
Tube Material: SS304, SS316, SS321 and NICOLOY800 etc
-
Insulation Material: High-purity MgO
-
Conductor Material: Ni-Cr or Fe-Cr-Al Resistance Heating Wire
-
Wattage density: high/middle/low (5-25w/cm2)
-
Lead Connection Option: Crimped or Swaged leads
-
Lead wire type: 10" Standard (Teflon/silicone high temperature fiberglass)
-
Injection moulding - Internal heating of nozzles
-
Hot runner systems - Heating of manifolds
-
Packaging industry - Heating of cutting bars
-
Packaging industry - Heating of hot stamps
-
Laboratories - Heating of analytical equipment
-
Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
-
Telecommunications: Deicing, Enclosure Heater
-
Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
-
Food Service: Steamers, Dish Washers,
-
Industrial: Packaging Equipment, Hole Punches, Hot Stamp.

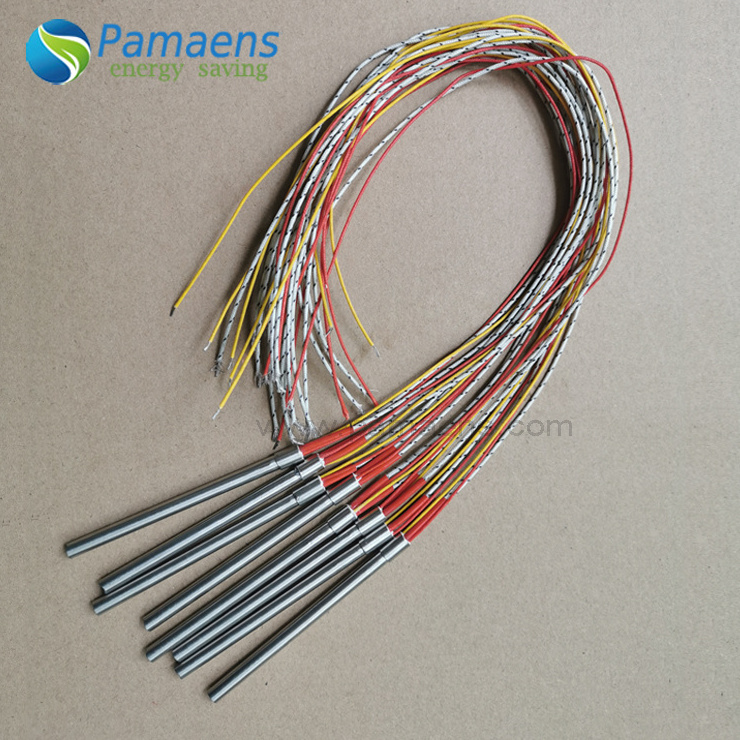

Products Showcase of Cartridge Heater with Built in Thermocouple
|
|
|
|
