> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HengDa
-
Model Number:
-
HDM60-300w
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1650*991*35mm
-
Cell Type:
-
Mono156.75*156.75mm
-
Weight:
-
18.6 Kg (41.0 Lb)
-
Output Cables:
-
Length 900mm,4.0mm2
-
No.of Cells:
-
60(6*10)
-
Front Glass:
-
3.2mm High Transmission,Low Iron Tempered Glass
-
Frame:
-
Anodised Aluminium
-
Junction box:
-
IP67,3 Bypass Diodes
-
Solar cell:
-
Mono 156*156 Cell
-
Color:
-
Blue Ad Black
-
Certificate:
-
CE and RoHS
Quick Details
-
Type:
-
PERC, All Black
-
Panel Efficiency:
-
22.6%
-
Warranty:
-
25 years
-
Brand Name:
-
HengDa
-
Model Number:
-
HDM60-300w
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1650*991*35mm
-
Cell Type:
-
Mono156.75*156.75mm
-
Weight:
-
18.6 Kg (41.0 Lb)
-
Output Cables:
-
Length 900mm,4.0mm2
-
No.of Cells:
-
60(6*10)
-
Front Glass:
-
3.2mm High Transmission,Low Iron Tempered Glass
-
Frame:
-
Anodised Aluminium
-
Junction box:
-
IP67,3 Bypass Diodes
-
Solar cell:
-
Mono 156*156 Cell
-
Color:
-
Blue Ad Black
-
Certificate:
-
CE and RoHS
Product Description

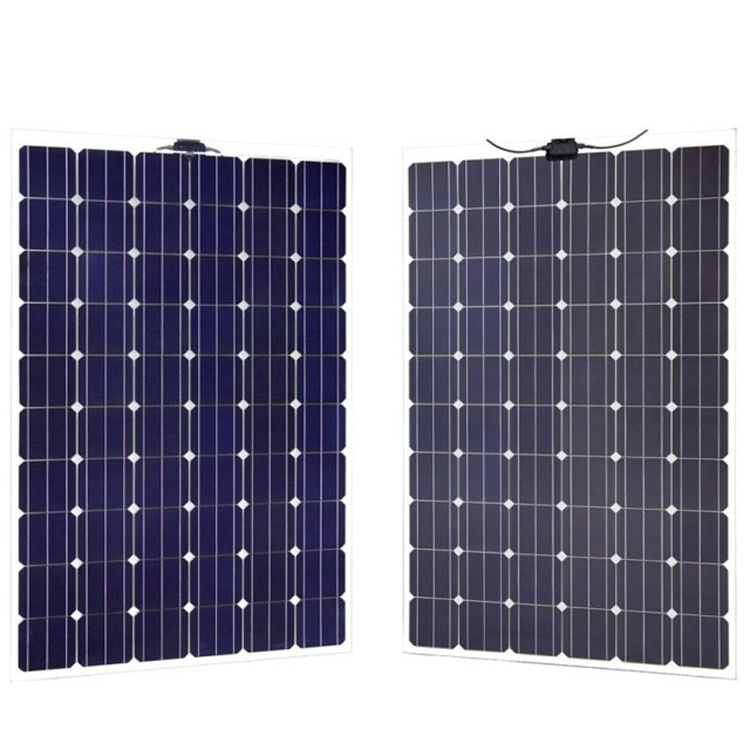

HDM60
290W-310W
Monocrystalline PV module
290W-310W
Monocrystalline PV module
|
Mechanical Specification
|
Mono156.75×156.75mm
|
|
|
Cells Type
|
Mono156.75×156.75mm
|
|
|
Weight
|
18.6kg
|
|
|
Dimension(L×W×T)
|
1650×991×35mm
|
|
|
Output Cables
|
TUV，Length900mm，4.0mm²
|
|
|
No.of Cells
|
60（6×10）
|
|
|
Front Glass
|
3.2mm High Transmission,Low Iron Tempered Glass
|
|
|
Frame
|
Anodised Aluminium
|
|
|
Junction box
|
IP67，3 Bypass Diodes
|
|
|
Connector
|
MC4 or MC4 Compactible
|
|
|
Packing Configuration
|
|
|
|
|||
|
Container
|
20GP
|
40GP
|
40HC
|
|||
|
PCS per pallet
|
30
|
30
|
30
|
|||
|
PLT per container
|
14
|
28
|
28
|
|||
|
PCS per container
|
400
|
840
|
924
|
|||
|
Operating Parameters
|
|
|
|
Maximum system voltage
|
DC1000V
|
|
|
Operating Temperature(℃)
|
-40 ~+85℃
|
|
|
Maximum series fuse rating
|
15A
|
|
|
Snow load,frontside
|
5400Pa
|
|
|
Wind load，backside
|
2400Pa
|
|
|
Nominal operating cell temperature (NOCT)
|
45℃±2℃
|
|
|
Application level
|
Class A
|
|
|
Electrical Characteristics (Standard Test Conditions)
|
|
|
|
|
|
|||||
|
Module Type
|
HDM60-290
|
HDM60-295
|
HDM60-300
|
HDM60-305
|
HDM60-310
|
|||||
|
Maximum Power(Pmax)
|
290W
|
295W
|
300W
|
305W
|
310W
|
|||||
|
Open-circuit Voltage（Voc）
|
38.9V
|
39.6V
|
39.8V
|
40.0V
|
40.2V
|
|||||
|
Maximum Power Voltage（Vmp）
|
32.2V
|
32.5V
|
32.6V
|
32.9V
|
33.1V
|
|||||
|
Short-circuit Current（Isc）
|
9.66A
|
9.68A
|
9.77A
|
9.85A
|
9.94A
|
|||||
|
Maximum Power Current(Imp)
|
9.01A
|
9.08A
|
9.19A
|
9.28A
|
9.37A
|
|||||
|
Module Efficiency(%)
|
17.7%
|
18%
|
18.3%
|
18.6%
|
18.9%
|
|||||
|
PowerTolerance
|
0～+3%
|
|
|
|
|
|||||
|
Standard Test Environment
|
Irradiance 1000w/m², Cell temperature 25℃, Spectrum AM1.5
|
|
|
|
|
|||||
Details Images
GLASS
Packing & Delivery
|
By sea
|
Delivery from Shanghai or Ningbo seaport
|
|
By air
|
Departure from Shanghai Pudong Airport
|
|
By express
|
By TNT/DHL
|
|
（60 cells panels)Container
|
20GP
|
40GP
|
40HC
|
|
Pcs/Pallet
|
30
|
30
|
30
|
|
Pallets/Container
|
14
|
28
|
28
|
|
Pcs/Container
|
400
|
840
|
924
|
