Quick Details
-
Product Name:
-
Electronic Motor Lock
-
Size:
-
81.4x79.4x16.9mm
-
Unlock Mode:
-
Smart Automatic
-
Material:
-
Zinc Alloy + Stainless Steel
-
Application:
-
Refrigerated Lockers/Storage Cabinets/Parcel Cabinets/Mailbox
-
Working Voltage:
-
DC 7~24V
-
Working Current:
-
6mA when idle; 200mA when working
-
Working Temperature:
-
-20°C~+70°C
-
Working Life:
-
200,000 Times of Open-close with 30-second Interval
-
Housing Test:
-
Pass 48-hour Salt-spraying Test
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Headleader
-
Model Number:
-
HLD6920
-
Product Name:
-
Electronic Motor Lock
-
Size:
-
81.4x79.4x16.9mm
-
Unlock Mode:
-
Smart Automatic
-
Material:
-
Zinc Alloy + Stainless Steel
-
Application:
-
Refrigerated Lockers/Storage Cabinets/Parcel Cabinets/Mailbox
-
Working Voltage:
-
DC 7~24V
-
Working Current:
-
6mA when idle; 200mA when working
-
Working Temperature:
-
-20°C~+70°C
-
Working Life:
-
200,000 Times of Open-close with 30-second Interval
-
Housing Test:
-
Pass 48-hour Salt-spraying Test
Product Paramenters
|
Product Name
|
Inteligent Motor Lock
|
|
Item No.
|
HLD6920
|
|
Material
|
201 stainless steel
|
|
Working Voltage
|
DC 7V~24V
|
|
Working Current
|
6mA in standby mode; 200mA in the process of locking/unlocking
|
|
Working Temperature
|
-20℃~ +70℃
|
|
Reaction Time
|
Less than 0.2msec
|
|
Working Life
|
200,000 times of open-close with intervals of 30s
|
|
Housing Test
|
Pass 48-hour salt-spraying test
|
|
Manner of Working
|
Open after power on
|
|
Working Humidity
|
5% ~ 95% RH
|
|
Signal Detection
|
Lock status feedback
|
|
Emergency Unlock
|
Two mounts
|
|
Relock Type
|
Auto & Delayed
|
|
Certification
|
CE, ISO9001, ROHS
|
Product Application
Locker Display Cabinet Express Cabinet
Product Description
-
Product Description
1. HLD motor lock HLD6920 adopts 201 stainless steel housing, Stable and durable, shock-proof and theft-proof.
2. Dustproof and waterproof, suitable for all kinds of high-end smart cabinets.
3. HLD6920 is suitable for various intelligent control systems. For example, by connecting HLD lock control board, it can make intelligent unlocking possible.
4. It can be unlocked by pulse signal with merely 200mA working current. I t will send lock feedback indication a fter the process of unlocking .
5. Two mounts for convenient mechanical override enables manual release during power failure.
Products Show

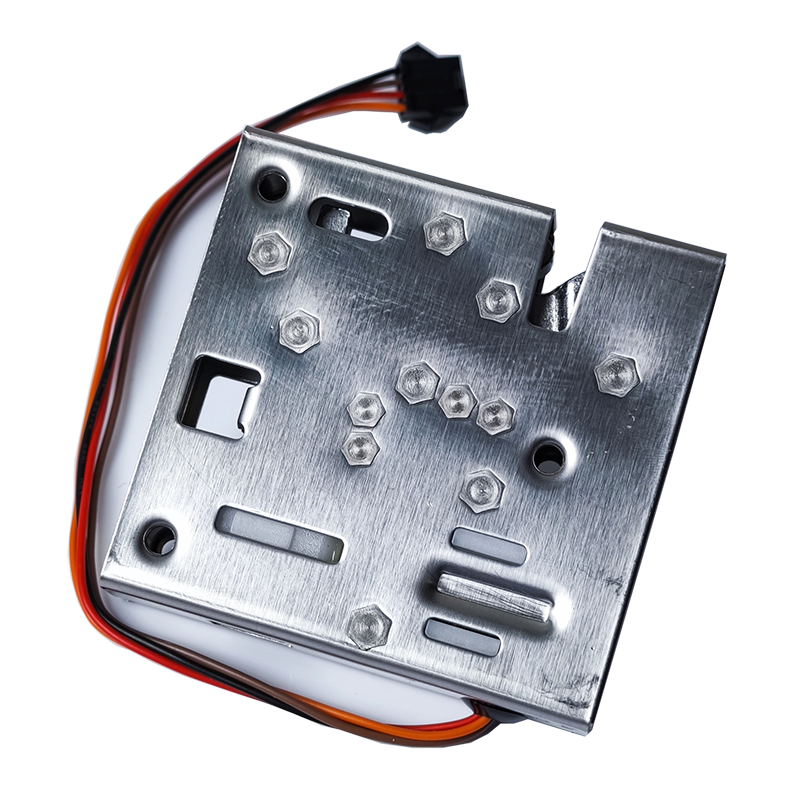

201 Stainless Steel Housing.
Sturdy and Stable.
Using Powder Metallurgy Support Block.
High Strength Torsion Spring
ECS is protected by environmental protection glue.
Product Usage
-
-
Product Usage Introduction
-
The unlocking signal is a pulse (the latch will pop-up
automatically
), and the general current of unlocking signal does not exceed 200mA.
When the electric lock receives the unlock command, the electric motor rotates. The latch spring out of the lock. The unlock
status is sent. After the latch spring out, the electric motor rotates back and be ready for next unlocking process. I t can be easily locked with a gentle push when necessary .
status is sent. After the latch spring out, the electric motor rotates back and be ready for next unlocking process. I t can be easily locked with a gentle push when necessary .
When the door gets stuck and the lock cannot be unlocked, the motor will invert and
automatically
get the door relocked after 3 minutes to prevent items from being stolen.
Topological Diagram
(
Lock Control System)
We provide a complete set of mature lock control system, and the main control board is connected to the Internet through WIFI, TCP/IP, etc. External LCD display, IC card reading and writing module and the
terminal motor lock
can also be connected to it.
Company Introduction
Headleader
is a hi-tech company located in Xiamen, which is
an important port city of
China. Since the establishment in 2009, Headleader has always been working on the development of IOT control systems. We stick to the principle of “Being professional, focusing on quality and always improving efficiency”, keep on delivering our customers the appropriate solutions for their requests.
Headleader specializes in designing and manufacturing electronic intelligent l ocks and lockers and various kinds of control systems. Headleader’s intelligent lockers, control system and electronic rotary lock are patented. The intelligent locker and its main parts are CE and UL certified. From the software to hardware, all major components are designed by Headleader itself. Headleader has distributed more than 6000 intelligent lockers and over 9000 control system kits to Europe, Asia and North America, providing solutions to logistics and storage industry, medical device industry, home automation industry, remote monitoring industrial purposes, etc.
Headleader majors in ODM & OEM, offering innovative and o ptimized solutions in the technology field of remote temperature controlling, UV application, refrigerated control system, customized HAVC devices, etc. High-quality products, stable delivery time, timely aftersales service, these advantages make us stood out from the market and win a great popularity among our clients worldwide.
Headleader specializes in designing and manufacturing electronic intelligent l ocks and lockers and various kinds of control systems. Headleader’s intelligent lockers, control system and electronic rotary lock are patented. The intelligent locker and its main parts are CE and UL certified. From the software to hardware, all major components are designed by Headleader itself. Headleader has distributed more than 6000 intelligent lockers and over 9000 control system kits to Europe, Asia and North America, providing solutions to logistics and storage industry, medical device industry, home automation industry, remote monitoring industrial purposes, etc.
Headleader majors in ODM & OEM, offering innovative and o ptimized solutions in the technology field of remote temperature controlling, UV application, refrigerated control system, customized HAVC devices, etc. High-quality products, stable delivery time, timely aftersales service, these advantages make us stood out from the market and win a great popularity among our clients worldwide.
Xiamen Headleader Intelligent Technology Co., Ltd. has invested heavily in technology research since its establishment. Headleader
attached much importance to technology upgrading, and obtained many patents in the field of intelligent cabinet system. At the
same time, Headleader gained ISO9001 certification in 2013, and its products have obtained UL, CE, ROHS and some other
certifications.
Related Products
FAQ
1. Q: What’s the most advantages of your company?
A: Our company have own R&D team to provide ODM & OEM services to our customers.
2. Q: What kinds of lock control systems could be customized and supported by your company?
A: TCP/IP, WiFi, 4G, Lora and other communication methods can be customized and supported.
3. Q: What is your sample policy?
A: Sample could be sent to test within 7 days after customers buy it on line directly, with the same privilege of technology supported.
4. Q: What are the merits of Electric Locks compared with Solenoid Lock?
A: Motor driver, lower power consumption, stability, safety, durability, water-proof and anti-vandalism etc.
5. Q: How does the smart locker work?
A: It’s well designed and controlled by the lock control system, please browse our Topological Diagram on each product details page.
A: Our company have own R&D team to provide ODM & OEM services to our customers.
2. Q: What kinds of lock control systems could be customized and supported by your company?
A: TCP/IP, WiFi, 4G, Lora and other communication methods can be customized and supported.
3. Q: What is your sample policy?
A: Sample could be sent to test within 7 days after customers buy it on line directly, with the same privilege of technology supported.
4. Q: What are the merits of Electric Locks compared with Solenoid Lock?
A: Motor driver, lower power consumption, stability, safety, durability, water-proof and anti-vandalism etc.
5. Q: How does the smart locker work?
A: It’s well designed and controlled by the lock control system, please browse our Topological Diagram on each product details page.
