Quick Details
-
Use:
-
clean and grade corn seed
-
Name:
-
Corn seed cleaning machine
-
Capacity:
-
5000 KG/H
-
Power:
-
12.74 KW
-
Weight:
-
1600 KG
-
Function:
-
Cleaning corn seeds millet sorghum
-
Application:
-
Corn maize seed cleaning machine
-
Keywords:
-
Seed cleaner
-
Usage:
-
Grain seed cleaner
-
Supply range:
-
Seed cleaner machine
-
Feature:
-
With cyclone dust separator
-
Certification:
-
ISO9001-2008, CE
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SYNMEC
-
Type:
-
corn seed cleaning machine
-
Use:
-
clean and grade corn seed
-
Name:
-
Corn seed cleaning machine
-
Capacity:
-
5000 KG/H
-
Power:
-
12.74 KW
-
Weight:
-
1600 KG
-
Function:
-
Cleaning corn seeds millet sorghum
-
Application:
-
Corn maize seed cleaning machine
-
Keywords:
-
Seed cleaner
-
Usage:
-
Grain seed cleaner
-
Supply range:
-
Seed cleaner machine
-
Feature:
-
With cyclone dust separator
-
Certification:
-
ISO9001-2008, CE

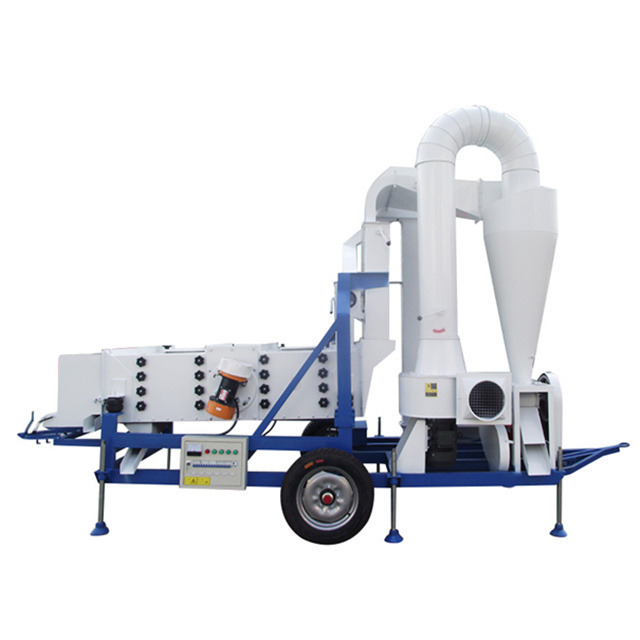

Corn Seed Cleaning Machine / Maize Thresher
Feature of Corn Seed Cleaning Machine / Maize Thresher
The Corn Seed Cleaning Machine / Maize Thresher is equipped with a maize thresher. This corn cleaning machine has multifunction maize threshing, seed cleaning and seed grading.
Application of Corn Seed Cleaning Machine / Maize Thresher
The Corn Seed Cleaning Machine / Maize Thresher is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc.
Working principle of Corn Seed Cleaning Machine / Maize Thresher
After being processed by the Maize Thresher, the maize seed will enter into Windsieve where light impurities can be sucked out by air cleaning system. And then the left materials enter into vibratory sieving trunk, the large and small impurities will be removed and at the same time the maize seed will be separated into different levels.
The grading and cleaning functions of vibratory sieve based on the geometrical size characteristic of seed, and change the sieves you can processing all kinds of seeds.
The sieves has Rubber Balls inside for the self-cleaning.
Specification of Corn Seed Cleaning Machine / Maize Thresher :
|
Model No. |
Capacity(T/H) |
Power(KW) |
Weight(KG) |
Sieve Size |
Dimensions(MM) |
Optional |
|
5XZC-3B cleaning machine |
3 |
8.5 |
1200 |
1250 × 800 |
3750 × 1950 × 2750 |
Equipped With Maize Thresher |
|
5XZC-5DH corn cleaning machine |
5 |
12.74 |
1.6 |
2000 × 1000 |
4650 × 2120 × 3100 |
|
|
5XZC-15 corn cleaning machine |
10 |
20.93 |
2.2 |
2400 × 1500 |
5400 × 2450 × 3250 |
