Quick Details
-
Model Number:
-
GD-3200
-
Product name:
-
Transformer Oil Water Moisture Content Analyzer
-
Standard:
-
ASTM D1744, ASTM D6304
-
Power supply:
-
AC(220±10%)V, 50Hz
-
Usage:
-
Water Content Tester
-
Test method:
-
Coulometric karl fisher titration method
-
measurement range:
-
3 ~ 999.9 mcg
-
Resolution:
-
0.1 mcg
-
single/double unit:
-
single
-
sample quantity:
-
1
-
Auto-calculate , print and USB port:
-
Yes
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
GOLD
-
Model Number:
-
GD-3200
-
Product name:
-
Transformer Oil Water Moisture Content Analyzer
-
Standard:
-
ASTM D1744, ASTM D6304
-
Power supply:
-
AC(220±10%)V, 50Hz
-
Usage:
-
Water Content Tester
-
Test method:
-
Coulometric karl fisher titration method
-
measurement range:
-
3 ~ 999.9 mcg
-
Resolution:
-
0.1 mcg
-
single/double unit:
-
single
-
sample quantity:
-
1
-
Auto-calculate , print and USB port:
-
Yes
GD-3200 Transformer Oil Water Moisture Content Analyzer
General description:
Transformer Oil moisture content analyzer is the newly developed full-digital intelligent trace water tester by fully taking reference of the advantages of domestic and foreign similar instruments.
Based on coulometric titration principle, by adopting many advanced technologies and processes as well as brand new circuit topology structure design, Transformer Oil moisture content analyzer is in accordance with many domestic and foreign standards, with advantages of high accuracy, quick electrolysis speed, short equilibrium time, accurate dummy deduct as well as accurate
and reliable analysis result.
Technical parameter:
|
Product name |
GD-3200 Transformer Oil moisture content analyzer |
|
Electrolytic current |
400mA maximum |
|
Measurement range |
3 – 999.9 mcg |
|
Instrument resolution ratio |
0.1 mcg |
|
Accuracy |
3mcg water ±20% 10mcg water±10% 100mcg water±1% more than 100mcg ±0.5% (sample introduction error is not included) |
|
Display |
7 inch high definition true color touch screen (1024*600) |
|
Printing |
wide line thermal printing |
|
Power supply |
AC220V±10% 50Hz±5% |
|
Power |
100W |
|
Environment temperature |
0 - 50℃ |
|
Environment humidity |
≤85% |
|
Volume |
390*270*220 |
|
Weight |
6kg |
Constructional feature:

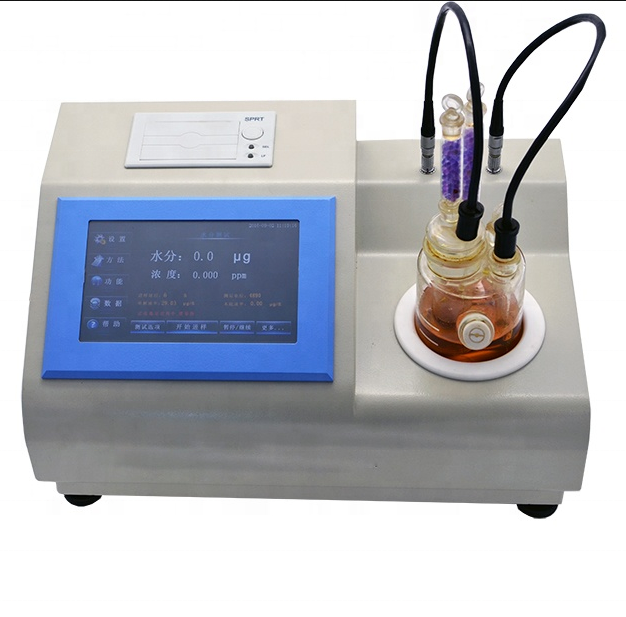

1.Front view:(Figure 1)
2. Back view: (Figure 2)
Detail Images:
About Our Company:
C hongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil tester,laboratory instrument,road building instrument.
