Product name:
-

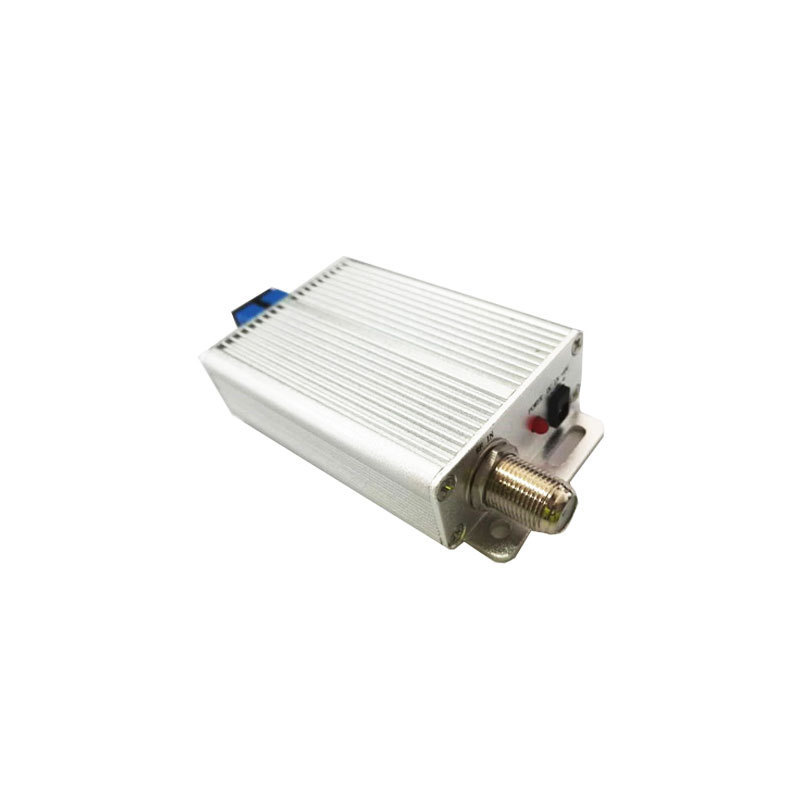

Mini CATV rf Optical Transmitter 1550nm node
-
Wavelength:
-
1550±15nm
-
Working bandwidth:
-
40~860MHz
-
RF input level:
-
65~90dBuV
-
Output power:
-
6mw
-
Optical connector:
-
SC/APC
-
Laser type:
-
DFB laser
-
Optical modulation:
-
Direct light intensity modulation
-
Power supply:
-
+9V DC
-
Application:
-
CATV/HFC/FTTH
Quick Details
-
Model Number:
-
VX-DOT5006M
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VXAR
-
Product name:
-
Mini CATV rf Optical Transmitter 1550nm node
-
Wavelength:
-
1550±15nm
-
Working bandwidth:
-
40~860MHz
-
RF input level:
-
65~90dBuV
-
Output power:
-
6mw
-
Optical connector:
-
SC/APC
-
Laser type:
-
DFB laser
-
Optical modulation:
-
Direct light intensity modulation
-
Power supply:
-
+9V DC
-
Application:
-
CATV/HFC/FTTH
Product Description
1550nm Mini CATV optical transmitter is improved better in power consumption, output accuracy and high reliability, it is mainly used in optical fiber Transmission of Television Image Signal, Digital Signal, Television ,Telephone, Voice Signal Data (or Compressed Data) Signal.
With all property technology data meeting international demands and pay attention to product cost 1310nm CATV optical transmitter is first choice of building small and medium size optical transmission network of CATV equipment.
Product Features
1.With excellent heat dissipation and appearance.
2.The bandwidth 47-862MHz, also 1000MHz can be customized.
3.Adopt world top brand laser with wide bandwidth and high output power.
4.Advanced multi-frequency RF pre-distortion technology, RF GaAs devices and complete SMT structure effectively improve the C/N, CTB and CSO parameters in the CATV system.
5.RF driving circuit adopts the RF power digital automatic processing technology. According to RF input signal level and the input channels number, automatically handles the driveing level, in order to keep the C / CTB, C / CSO and C / N parameters always in the best status.
6.RF output power detector and the RF relay shutdown function effectively prevent the damage of the laser when the signal is too high.
2.The bandwidth 47-862MHz, also 1000MHz can be customized.
3.Adopt world top brand laser with wide bandwidth and high output power.
4.Advanced multi-frequency RF pre-distortion technology, RF GaAs devices and complete SMT structure effectively improve the C/N, CTB and CSO parameters in the CATV system.
5.RF driving circuit adopts the RF power digital automatic processing technology. According to RF input signal level and the input channels number, automatically handles the driveing level, in order to keep the C / CTB, C / CSO and C / N parameters always in the best status.
6.RF output power detector and the RF relay shutdown function effectively prevent the damage of the laser when the signal is too high.
Product application
Single-mode fiber 1550 amplification network/ FTTH network/CATV network/PON network
Product Paramenters
|
Item
|
Unit
|
Technical Parameters
|
|
Optical wavelength
|
nm
|
1550±10
|
|
Optical output power
|
dBm
|
3-10
|
|
Laser type
|
|
DFB laser
|
|
Connector type
|
|
SC/APC
|
|
Bandwidth
|
MHz
|
47-862(1000MHz customized)
|
|
RF input power
|
dBuV
|
65-85
|
|
Flatness
|
dB
|
±0.5
|
|
Input port isolation
|
dB
|
≥50
|
|
Output impedance
|
Ω
|
75
|
|
CN
|
dB
|
≥52
|
|
C/CTB
|
|
≥65
|
|
C/CSO
|
|
≥60
|
|
Supply voltage
|
V
|
DC+9V DC Adaptor
|
|
Consumption
|
W
|
1.5
|
|
Operating Temperature
|
℃
|
-5 ~ +55
|
|
Power LED Indicator
|
|
Red Color LED
|
|
Net weight
|
kg
|
0.7
|
|
Size
|
mm
|
110x60x30
|
Product disply
Order Guide
(1)Output power:3mw/6mw/8mw/10mw
