Quick Details
-
Filling Accuracy:
-
±1-3ml
-
Voltage:
-
220V/380V coffee canning machine
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Mic machinery
-
Dimension(L*W*H):
-
1800mm*1300mm*1950mm
-
Weight:
-
1800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Filling Types:
-
Gravity filling and nitrogen dosing
-
Packing Types:
-
Aluminum can, tinplate can, pet can
-
Capacity:
-
30-40CPM based on 250ml
-
Filling Range:
-
330ml, 250ml, 500ml, 12oz, 16oz, 0.1-1L
-
Material:
-
Food grade stainless steel 304/316
-
Function:
-
Rinser Filler Seamer
-
Control System:
-
Automatic control with HMI interface
Quick Details
-
Machinery Capacity:
-
4000BPH, Other, 6000BPH, 400BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH
-
Packaging Material:
-
Metal, Plastic, Cold Coffee Filling Machine
-
Filling Material:
-
Beer, Juice, Coffee, Cold coffee
-
Filling Accuracy:
-
±1-3ml
-
Voltage:
-
220V/380V coffee canning machine
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Mic machinery
-
Dimension(L*W*H):
-
1800mm*1300mm*1950mm
-
Weight:
-
1800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Filling Types:
-
Gravity filling and nitrogen dosing
-
Packing Types:
-
Aluminum can, tinplate can, pet can
-
Capacity:
-
30-40CPM based on 250ml
-
Filling Range:
-
330ml, 250ml, 500ml, 12oz, 16oz, 0.1-1L
-
Material:
-
Food grade stainless steel 304/316
-
Function:
-
Rinser Filler Seamer
-
Control System:
-
Automatic control with HMI interface

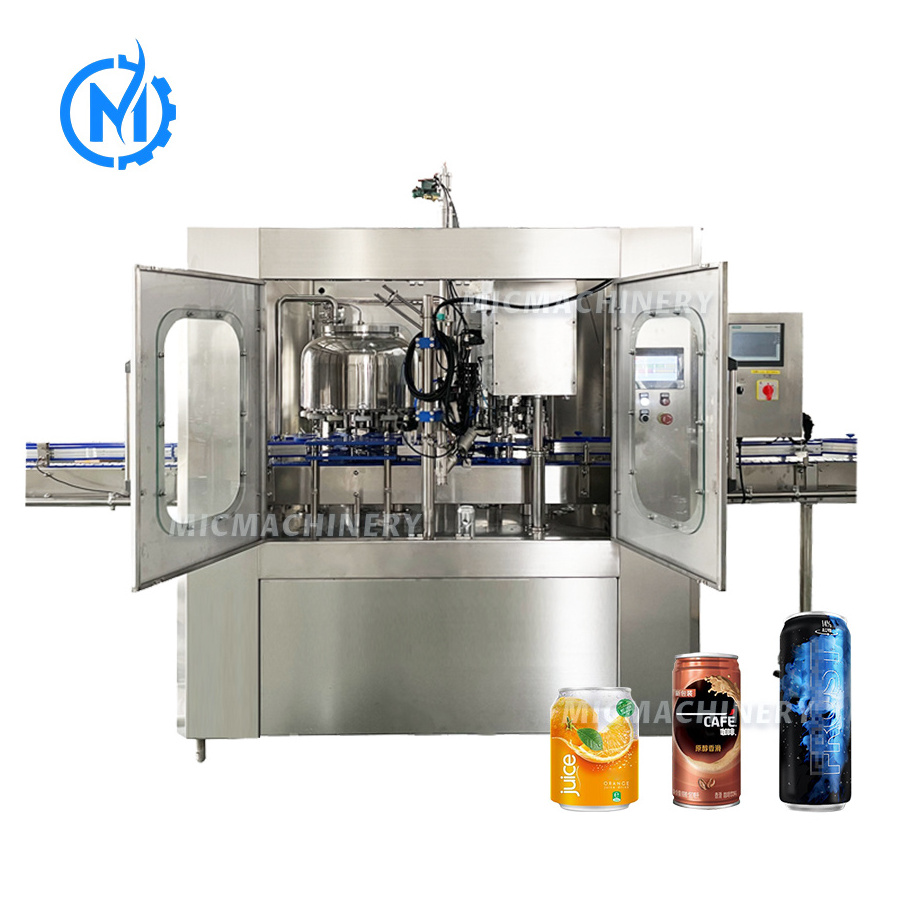

Mic 12-1 beverage can filling seaming machine adopts normal pressure filling system which is applicable for fruit juice, cold brew coffee, energy drink, herbal tea, alcoholic beverages and other canned non-carbonated drinks (Cold filling temperature at 0-4 degrees Celsius or hot filling temperature at 80-85 degrees Celsius.)
— MACHINE APPLICATION —
Mic 12-1 beverage can filling machine is in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and seaming part is the overall designed, in order to ensure that both the absolute synchronization and coordination.
It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip CIP system according to the customers’ request. It is the preferred equipment for the small beverage plant.
— TECHNICAL PARAMETER —
|
Power
|
1.1Kw
|
|
Filling heads
|
12piece
|
|
Sealing heads
|
1piece
|
|
Production capacity
|
1000-2000CPH based on 330ml
|
|
Filling temperature
|
0-4 ℃
|
|
Can diameter range
|
Ф40-90MM
|
|
Can height
|
92-168MM
|
|
Dimension
|
1800*1300*1950mm
|
|
Weight
|
1800Kg
|
|
Model/Parameter
|
MIC-12/1
|
MIC-32/8
|
|||||||
|
Application
|
Fruit juice, cold coffee, energy drink, alcoholic beverage, herbal tea,
non-carbonated drinks and so on
|
|
|
|
|
||||
|
Packing Type
|
Aluminum cans, tin cans, pet cans, etc
|
|
|
|
|
||||
|
Capacity
|
1000-2000CPH
|
1500-2500CPH
|
4000-7000CPH
|
5000-8000CPH
|
8000-12000CPH
|
||||
|
Filling Range
|
180ml, 250ml, 330ml, 355ml, 440ml, 500ml, 8oz,
12oz, 16oz, 1L and so on (0.1-1L)
|
|
|
|
|
||||
|
Power
|
1.1KW
|
1.5KW
|
2.5KW
|
3.5KW
|
4.2KW
|
||||
|
Size
|
1.8M*1.3M*1.95M
|
1.9M*1.3M*1.95M
|
2.3M*1.4M*1.9M
|
2.58M*1.7M*1.9M
|
2.8M*1.7M*1.95M
|
||||
|
Weight
|
1800KG
|
2100KG
|
2500KG
|
3000KG
|
3800KG
|
||||
— DETAILS IMAGES —
— OTHER RECOMMEND PRODUCTS —
— FACTORY VIEW —
— FAQ —
Q1.Are you trading company or manufacturer ?
>>
We are factory. Our factory is located in Zhangjiagang near Shanghai.
Q2.What is the payment of your company?
>>
100% T/T, 30% of prepaid contracts entered into force, 70% paid before delivery. L/C is supported also.
Q3.Do you provide a complete production line and customized services?
>>
We are a company that provides a complete production line. We can design the machine according to your requirements (material, power, filling type, bottle type, etc), and we will give you our professional advice. As you know, we have beenin this industry for many years.
Q4.If we buy your machine, what is your guarantee or quality assurance?
>>
We provide you with high- quality machines with 1 year warranty and lifetime technical support.
Q5.How long does it take to install?
>>
According to your machine order, we will send one or two engineers to your factory, about 10 days. Customers need to provide round-trip air tickets, visa fees, local transportation, accommodation, food, 120 US dollars/ day / person.
Q6.What kind of after-sales service is provided?
>>
After the production is completed, we will debug the production line, take photos, video and send to customers via email or instant tools. After the commissioning is completed, we will package and ship the equipment according to the standard export packaging. Operating manuals will be sent with machine or by email. According to the customer' s requirements, we can arrange our engineers to the customer's factory for installation and training. Engineers, sales managers, and after-sa les service managers form an after-sales team to follow up on customer projects online and offline.
