Quick Details
-
Weight:
-
4700 KG
-
Marketing Type:
-
Hot Product 2023
-
Mobility:
-
Move by crawler
-
Model:
-
BDM-200SM
-
Dimension:
-
4350*1600*2450mm
-
The weight:
-
4700KGS
-
The hole diameter:
-
140-254mm
-
Drilling depth:
-
200m
-
Air consumption:
-
17-31m³/min
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BDM
-
Dimension(L*W*H):
-
4350*1600*2450mm
-
Weight:
-
4700 KG
-
Marketing Type:
-
Hot Product 2023
-
Mobility:
-
Move by crawler
-
Model:
-
BDM-200SM
-
Dimension:
-
4350*1600*2450mm
-
The weight:
-
4700KGS
-
The hole diameter:
-
140-254mm
-
Drilling depth:
-
200m
-
Air consumption:
-
17-31m³/min
100m 200m 300 meters 400 meters water well drilling rig custom perforation drilling rig price

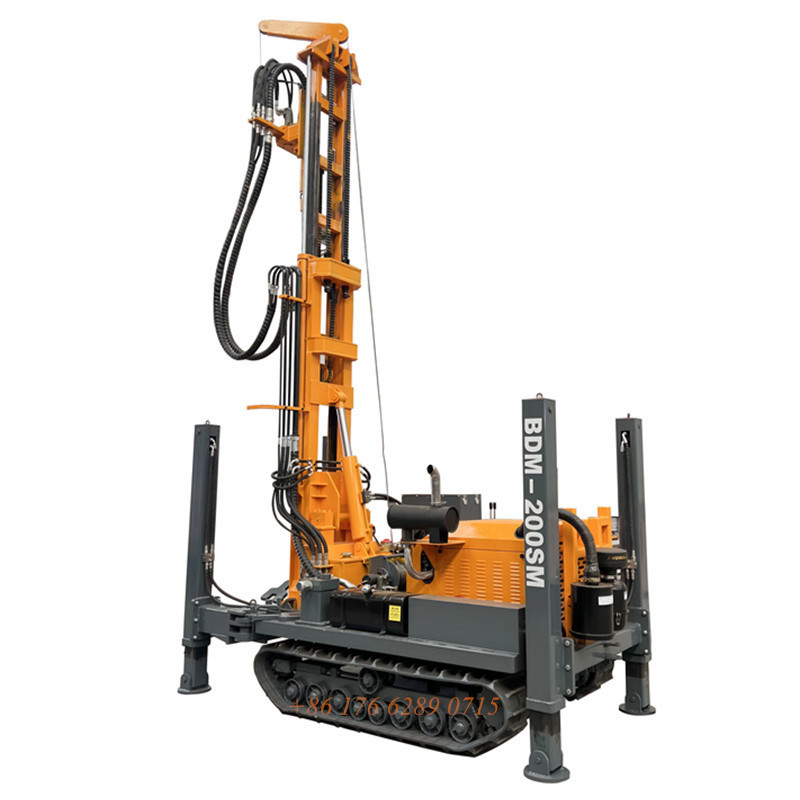

BDM-200SM model water well-drilling rig uses full hydraulic control and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.
Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.
Machine details show :
1. Easy to install, you can start drilling in half a day
2. Fully hydraulic, high drill coring efficiency, 200 meters of drilling can be achieved in 2days.
3. Crawler chassis, short outriggers, more stable work.
4. Factory direct sales, affordable price.
5. Remote control walking, safer and more reliable during working.
Technical Specifications :
|
Model |
BDM-200SM |
|
Drilling depth |
200m |
|
Drilling diameter |
140-254mm |
|
Working air pressure |
1.7-2.5Mpa |
|
Air consumption |
17-31m³/min |
|
One time propelling length |
3.3m |
|
Diesel engine power |
65kw |
|
Walking speed |
20-40km/h |
|
Climbing ability |
Max. 30° |
|
Rotary speed |
45-65rpm |
|
Rotary torque |
3400-4700N.m |
|
Max. lifting force |
13T |
|
Dimension |
4350*1600*2450mm |
|
Weight |
4700kgs |
|
Mud pump |
Optional |
|
Foam Pump |
Optional |
