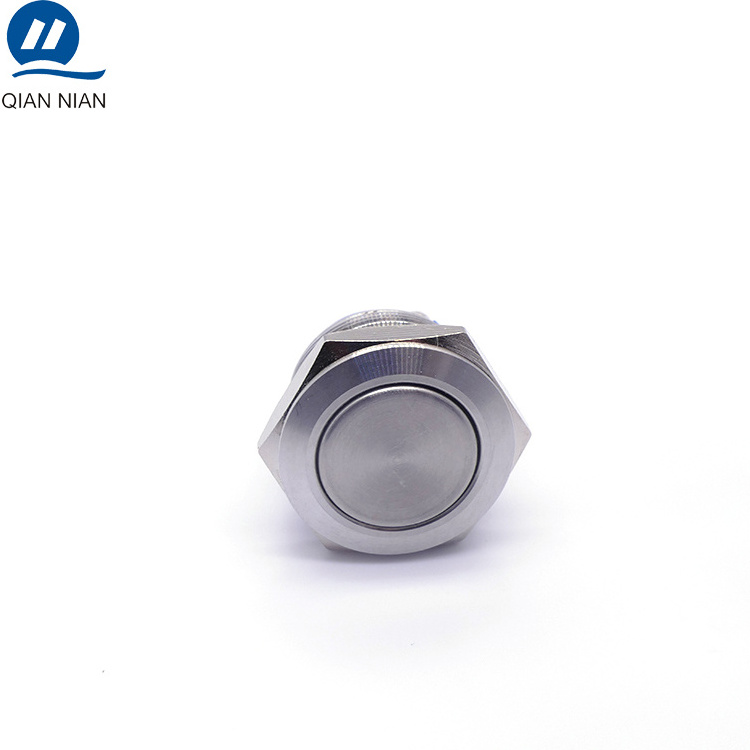

momentary push button switch
momentary push button switch
momentary push button switch
momentary push button switch
momentary push button switch
momentary push button switch

momentary push button switch

FOB Reference Price: Get Latest Price
≥10 Pieces
US $0.75
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Zhejiang, China
Item:
QN16-A5
Mounting hole size:
16MM
pin type:
terminal pin
Operation type:
momentary
Head shape:
Round
MOQ:
free
package:
50PCS/BOX
Certificate:
CE,CQC,REACH,ROHS,TUV
Material:
stainless steel / nickel plated brass/aluminum

Quick Details

Protection Level:
IP65,IK08
Max. Current:
3A
Max. Voltage:
250VAC
Place of Origin:
Zhejiang, China
Item:
QN16-A5
Mounting hole size:
16MM
pin type:
terminal pin
Operation type:
momentary
Head shape:
Round
MOQ:
free
package:
50PCS/BOX
Certificate:
CE,CQC,REACH,ROHS,TUV
Material:
stainless steel / nickel plated brass/aluminum

Product Description

1.Product Name Metal button switch
2. Product model QN16-A5
3.Electrical parameters 3A/250VAC
4.Use temperature range -20℃~+55℃
5. Switch combination 1NO
6.Operation Typ Resetable
7.Protection grade IP65, IK08
8.Led life NO light
Mechanical properties project Test conditions specifications
Operating limits Press down the vertical direction of the switch head 2±0.1
Operating force Slowly apply the load along the vertical direction to the start About 4 ~ 5 N
Mechanical life In the case of no load, at 30 times/min speed Operation cycles up to 100,000 times
weldability Soldering temperature to 230 + 5 ℃ dipping time 3 + / - 0.5 S The tin area is more than 90% of the dip range
Heat resistance Soldering temperature to 260 ± 5 ℃ dipping time 5 ± 1 s No abnormal electrical and mechanical properties
Electrical properties Contact resistance 3V.DC ≤50mΩ
Insulation Resistance 500V.DC,For 1 min ≥100MΩ
Voltage endurance test The test conditions requirements
Micro disconnect 1000 vac / 50 hz, for 1 min No flashover, no breakdown
The basic insulation 1000 vac / 50 hz, for 1 min
Endurance test Overload test 3A/250VAC,6-10 / min,10000 + Function is normal
The temperature test 3A keep the power on for 1h until the temperature rises steadily. Connect Wire specification: 18AWG Terminal temperature ≤55K
Product size
