Products Description

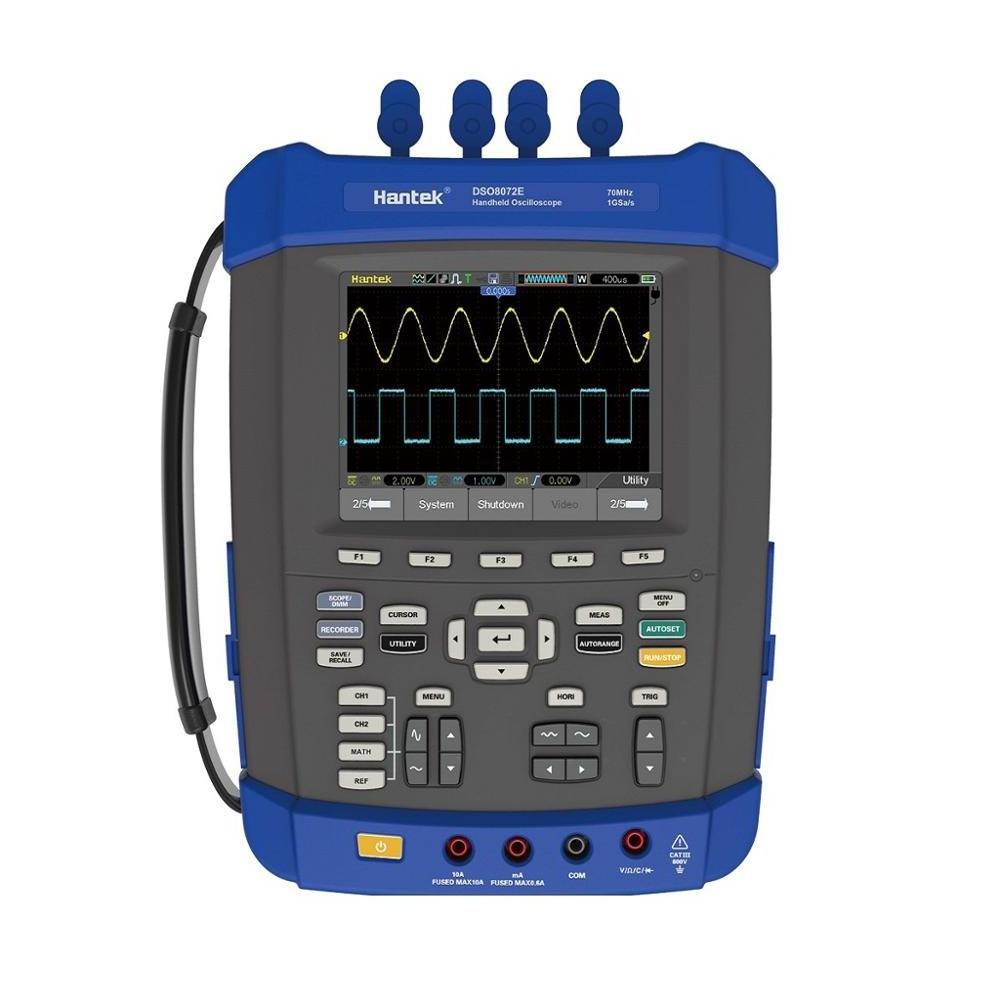

Hantek DSO8202E Precision Professional 2-Channel 200Mhz Storage Depth Portable Student Handheld Digital Oscilloscope Analog
Six in one: Oscilloscope/Recorder/DMM/ Spectrum Analyzer/Frequency Counter/Arbitrary Waveform generator.
IP-51 rated for dust, drip and shake proof to withstand harsh environments.
Large fuse confirms to European Safety Standard.
Battery indicator with easy-changed connect points. Selectable 18650 battery box for matching 18650 battery by yourself.
Anti-theft lock hole, tripod fixed hole, hang rope, FLASH light that can be used in darkness.
Replaceable BNC safety joints, and additional one set of joints.
High bandwidth 70MHz-200MHz Oscilloscope, 1GSa/s sample rate, 2M Memory depth.
25Mz Arb. Waveform Generator, 200 Mesa/s DDS, 12 bit vertical resolution, easy for simulating transducer
6000 Counts DMM, AC/DC voltage, AC/DC current, resistance, break, capacitance, and diode function.
FFT spectral analysis; Waveform Math: add, subtract, multiply and divide; X-Y mode; more than 20 automatic measurements; PASS/FAIL Check function, apply to engineering application.
Abundant trigger function, double timebase sampling, easy to observe two waveforms in different frequency.
Record and replay of more than 1000 waveforms.
Large 5.6 inch TFT Color LCD Display; High Resolution(640*480)
USB Host/Device 2.0 full-speed interface; support removable disk; WIFI/LAN Option, easy to control by PC or long-distance.
Waveform data can be output in WORD,EXCEL, BMP, JPG as time and voltage.
|
Model
|
DSO8072E
|
DSO8102E
|
DSO8152E
|
DSO8202E
|
||||
|
Acquisition
|
|
|
|
|
||||
|
Sample Modes
|
Real-Time Sample
|
|
|
|
||||
|
Acquisition Modes
|
|
|
|
|
||||
|
Normal
|
Normal data only
|
|
|
|
||||
|
Peak Detect
|
High-frequency and randon glith capture
|
|
|
|
||||
|
Average
|
Wavefom Average, selectable 4,8,16,32,64,128
|
|
|
|
||||
|
Inputs
|
|
|
|
|
||||
|
Inputs Coupling
|
AC, DC, GND
|
|
|
|
||||
|
Inputs Impendance
|
1MΩ±2% 20pF±3pF
|
|
|
|
||||
|
Probe Attenuation
|
1X, 10X
|
|
|
|
||||
|
Supported Probe Attenuation Factor
|
1X, 10X, 100X, 1000X
|
|
|
|
||||
|
Maximum Input Voltage
|
CAT I and CAT II: 300VRMS (10×), Installation Category;
CAT III: 150VRMS (1×) |
|
|
|
||||
|
Horizontal System
|
|
|
|
|
||||
|
Sample Rate Range
|
1GS/s
|
|
|
|
||||
|
Waveform Interpolation
|
(sin x)/x
|
|
|
|
||||
|
Record Length
|
2M
|
|
|
|
||||
|
SEC/DIV Range
|
4ns/div~2000s/div, in a 2, 4, 8 sequence
|
|
2ns/div~2000s/div, in a 2, 4, 8 sequence
|
|
||||
|
Sample Rate and
Delay Time Accuracy |
±50ppm over any ≥1ms time interval
|
|
|
|
||||
|
Scanning Speed Range
|
4ns/div to 8ns/div; (-8div x s/div) to 40ms;
20ns/div to 80μs/div;(-8div×s/div) to 40ms; 200μs/div to 40s/div;(-8div×s/div) to 400s; |
|
2ns/div to10ns/div;(-4div×s/div) to 20ms;
|
|
||||
|
Delta Time Measurement Accuracy
(Full Bandwidth) |
Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns);
>16 averages:± (1 sample interval + 100ppm × reading + 0.4ns); Sample interval = s/div ÷ 200 |
|
|
|
||||
|
Vertical System
|
|
|
|
|
||||
|
Vertical Resolution
|
8-bit resolution, all channel sampled simultaneously
|
|
|
|
||||
|
Volts Range
|
2mV/div to 100V/div at input BNC
|
|
|
|
||||
|
Bandwidth
|
70MHz
|
100MHz
|
150MHz
|
200MHz
|
||||
|
Rise Time at BNC( typical)
|
5ns
|
3.5ns
|
2.3ns
|
1.8ns
|
||||
|
Analog Bandwidth in
Normal and Average modes at BNC or with probe, DC Coupled |
±400V(100V/div-20V/div);
±50V(10V/div-5V/div); ±40V(2V/div-500mV/div); ±2V(200mV/div-50mV/div); ±400mV(20mV/div-2mV/div); |
|
|
|
||||
|
Math
|
+, -, *, /, FFT
|
|
|
|
||||
|
FFT
|
Windows: Hanning, Flatop, Rectamgular, Bartlett, Blackman; 1024 sample point
|
|
|
|
||||
|
Bandwidth Limit
|
20MHz
|
|
|
|
||||
|
Low Frequency Response (-3db)
|
≤10Hz at BNC
|
|
|
|
||||
|
DC Gain Accuracy
|
±3% for Normal or Average acquisition mode, 100V/div to 10mV/div.
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div. |
|
|
|
||||
|
DC Measurement Accuracy,
Average Acquisition Mode |
Measurement Type: Average of ≥16 waveforms with vertical position at zero
Accuracy: ± (3% × reading + 0.1div + 1mV) when 10mV/div or greater is selected. Measurement Type: Average of ≥16 waveforms with vertical position not at zero Accuracy: ± [3% × (reading + vertical position) + 1% of vertical position + 0.2div]. |
|
|
|
||||
|
Volts Measurement Repeatability,
Average Acquisition Mode |
Delta volts between any two averages of ≥16 waveforms acquired under same setup and ambient conditions
|
|
|
|
||||
