Quick Details
-
Brand Name:
-
ELITE&OEM
-
Applicable Industries:
-
Laser industry, Industrial Inspection, Measurement, 3D Scan, machine vision, AGV robot
-
Weight (KG):
-
0.05 KG
-
Wavelength:
-
405nm-980nm
-
Output Power:
-
≤25W
-
Laser Drive Modes:
-
Analog Modulation, Digital Modulation
-
Operating Temperature:
-
-10°C ~ 40℃
-
Storage Temperature:
-
-40°℃~80℃
-
Lens:
-
Optical Glass Lens
-
MTBF:
-
>10,000 Hours
-
MOQ:
-
1 Piece
-
Customization:
-
Accept
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
Laser Module
-
Marketing Type:
-
New Product 2023
-
Brand Name:
-
ELITE&OEM
-
Applicable Industries:
-
Laser industry, Industrial Inspection, Measurement, 3D Scan, machine vision, AGV robot
-
Weight (KG):
-
0.05 KG
-
Wavelength:
-
405nm-980nm
-
Output Power:
-
≤25W
-
Laser Drive Modes:
-
Analog Modulation, Digital Modulation
-
Operating Temperature:
-
-10°C ~ 40℃
-
Storage Temperature:
-
-40°℃~80℃
-
Lens:
-
Optical Glass Lens
-
MTBF:
-
>10,000 Hours
-
MOQ:
-
1 Piece
-
Customization:
-
Accept

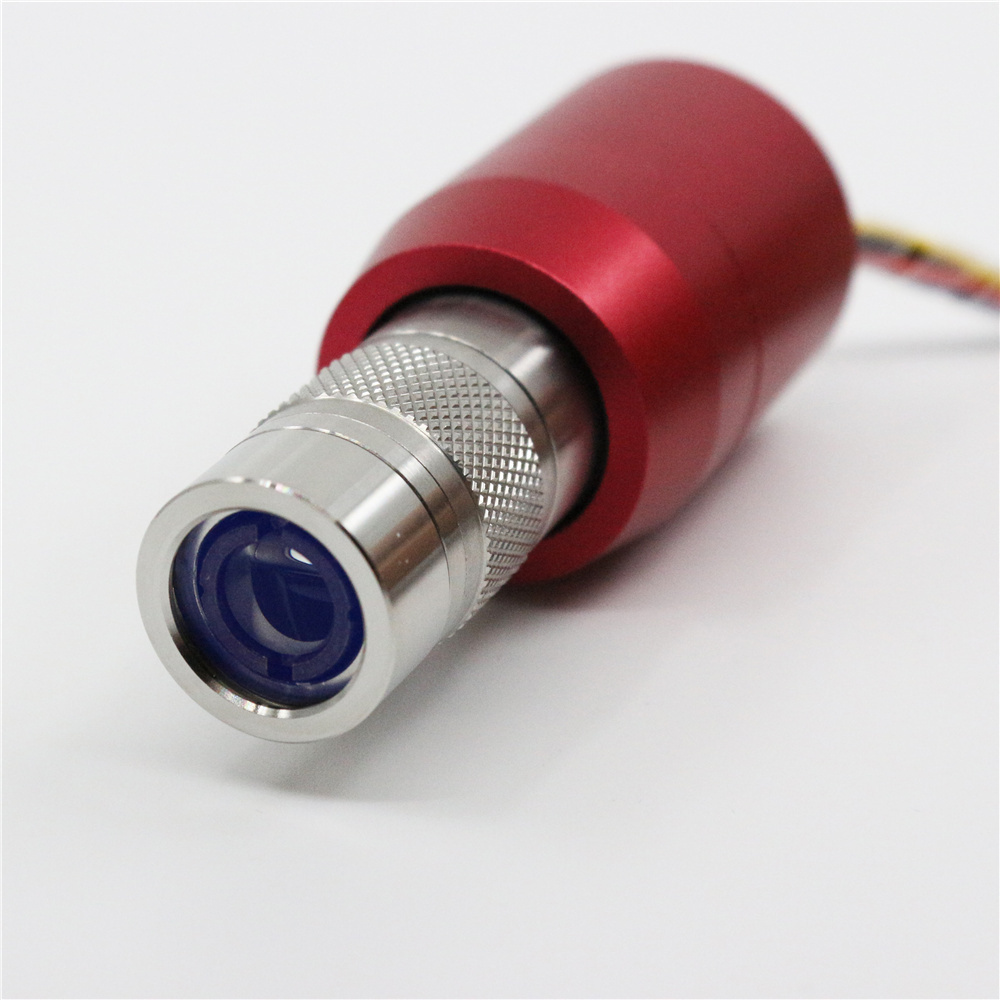

Elite Optoelectronics Uniform line laser includes "Special lens" and "Powell lens" are the high-performance laser line generator(projector). "Powell lens" is the standard uniform line laser solution in the market. Elite "Special Lens" Uniform Line Laser is an exclusive patent, provides better uniform line width and intensity. This special solution has solved "bright spot" at both ends of the laser line and improved beam quality, Therefore, the sharpness and resolution of scanning can be improved. "Special lens" Uniform line laser extensively using in Machine Vision, 3D Scanning, and Industrial inspection.
Available in wavelengths at 405, 450, 488, 505, 635, 650, 685, 785, 808, 830, and 850 nm
with output powers including 1 , 5, 10, 20, 35, 50, 75, 80, 100, 150 and 200mW.
Elite provides, a better solution, the uniformity of the line is better and there is less stray light, and no obvious"bright spots" will appear at the ends of the line. Therefore, the sharpness and resolution of the scan can be improved.ELITE customized service provides high-quality products and solutions for machine vision and measurement industry.
|
Absolute Maximum
|
|
|
|
|||
|
Parameter
|
Symbol
|
Ratings
|
Unit
|
|||
|
Optical Output Powe
|
P
0
|
≤500.0
|
mW
|
|||
|
Operating Temperature
|
T
opr
|
-20 to +50
|
°C
|
|||
|
Storage Temperature
|
T
stg
|
-40 to +85
|
°C
|
|||
|
Operating Humidity (none condensing)
|
RH
opr
|
90
|
%
|
|||
|
Optical and Electrical Characteristics
|
|
|
||
|
Parameter
|
Specifications
|
Test Conditions
|
||
|
Wavelength
|
640±5nm
|
T
c
= 25°C
|
||
|
Output Power
|
0-500mw
|
Signal = 0-5.0V (Yellow wire)
|
||
|
Line Width (1/e2)
|
≤110μm (@380mm)
|
Factory fixed @ 380mm
|
||
|
|
≤130μm (@380±10mm)
|
|
||
|
|
≤150μm (@380±20mm)
|
|
||
|
Fan Angle
|
75° (uniform line)
|
/
|
||
|
Divergence
|
1.20mrad
|
T
c
= 25 ±3°C
|
||
|
Optics
|
Glass lens
|
/
|
||
|
Operating Current
|
<1800mA
|
T
c
= 25±3°C
|
||
|
Operating Voltage
|
12.0VDC
|
/
|
||
|
CDRH Class
|
Class II
|
/
|
||
|
MTBF
|
>8000 Hrs.
|
T
c
= 25±3°C
|
||
|
Mechanical Characteristics
|
|
|
|
Parameter
|
Specifications
|
|
|
Dimensions
|
130x52x48mm (with computer interface)
|
|
|
Case Material
|
Aluminum black anodized
|
|
|
Vibration
|
DIN EN 60068-2-6 Standard
|
|
|
Shock
|
DIN EN 60068-2-29 Standard
|
|
