Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
VSELE
-
Model Number:
-
VSE-F210
-
Product name:
-
Wire Connector
-
Material:
-
PC
-
Contact material:
-
Copper Tin Plated
-
Certificate:
-
CE ROHS
-
Connector type:
-
Crimp
-
Rated Voltage:
-
400V
-
Rated Current:
-
32A
-
Size:
-
39.8*57.2*14.5mm
-
Package:
-
100pcs/box
-
Function:
-
Connected
Quick Details
-
Type:
-
connector
-
Application:
-
connecting wire
-
Gender:
-
Female
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
VSELE
-
Model Number:
-
VSE-F210
-
Product name:
-
Wire Connector
-
Material:
-
PC
-
Contact material:
-
Copper Tin Plated
-
Certificate:
-
CE ROHS
-
Connector type:
-
Crimp
-
Rated Voltage:
-
400V
-
Rated Current:
-
32A
-
Size:
-
39.8*57.2*14.5mm
-
Package:
-
100pcs/box
-
Function:
-
Connected
Products Description
Handle color display
|
Item No.
|
Number of incoming lines
|
Number of outlets
|
Part No.
|
①Shell colour
|
②③④Handle colour
|
Dimensions (mm)
|
||||||
|
VSE-T11
|
1
|
2
|
VSE-T11①②
|
W:Transparent white
A：Gray
|
O:Orange
B:Blue
K:Black
Y:Yellow
G:Green
R:Red
N:Brown
|
26.2*39.8*14.5
|
||||||
|
VSE-F12
|
1
|
2
|
VSE-F12①②
|
|
|
39.8*13.9*14.5
|
||||||
|
VSE-F13
|
1
|
3
|
VSE-F13①②
|
|
|
39.8*18.9*14.5
|
||||||
|
VSE-F14
|
1
|
4
|
VSE-F14①②
|
|
|
39.8*23.9*14.5
|
||||||
|
VSE-F15
|
1
|
5
|
VSE-F15①②
|
|
|
39.8*29*14.5
|
||||||
|
VSE-F24
|
2
|
4
|
VSE-F24①②③
|
|
|
39.8*27.2*14.5
|
||||||
|
VSE-F26
|
2
|
6
|
VSE-F26①②③
|
|
|
39.8*37.2*14.5
|
||||||
|
VSE-F28
|
2
|
8
|
VSE-F28①②③
|
|
|
39.8*47.2*14.5
|
||||||
|

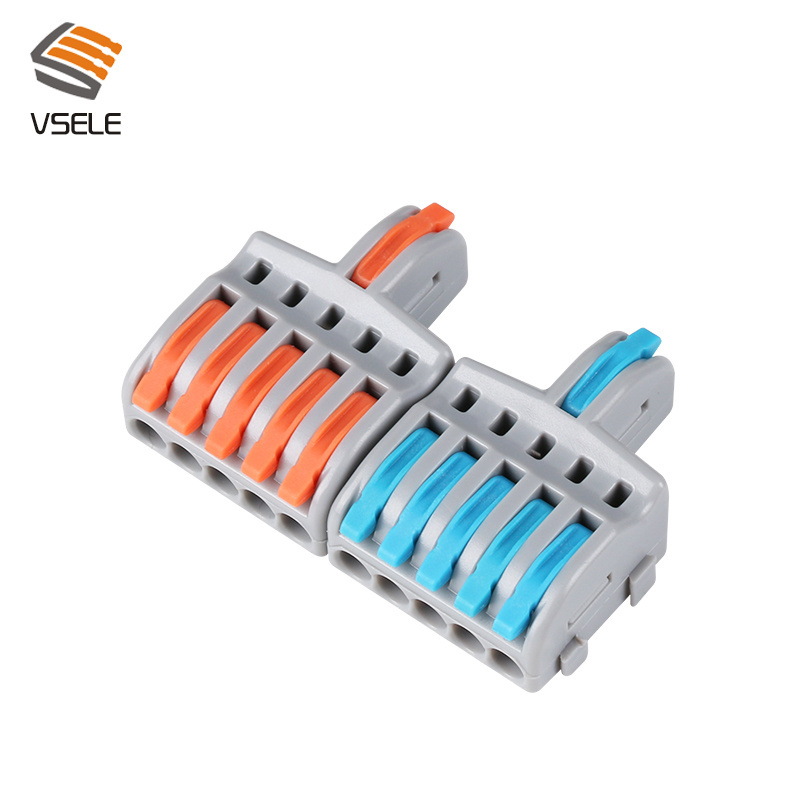

VSE-F210
|
2
|
10
|
VSE-F210①②③
|
|
|
39.8*57.2*14.5
|
||||||
|
VSE-F36
|
3
|
6
|
VSE-F36①②③④
|
|
|
39.8*40.1*14.5
|
||||||
|
VSE-F39
|
3
|
9
|
VSE-F39①②③④
|
|
|
39.8*55.3*14.5
|
||||||
|
Electrical parameters:400V/32A
|
|
|
|
|
|
|
||||||
|
Wire diameter:0.08-4.0mm²/28-11AWG
|
|
|
|
|
|
|
||||||
|
The conventional handle colors are : orange, blue,yellow, if you need other colors, you need to customize
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
1.
Quick connection
Main line in, branch line out
2.Stitching design
The terminals have grooves and convex grooves for easy splicing and assembly
3.Measuring hole design
There is a test hole on the top of the terminal, which is convenient for testing the current after the wiring is completed
4.Mounting hole design
There is a mounting hole on the top of the terminal, you can install the bracket and match the screw to fix the terminal
T type
1.Strip conductor to 10mm/0.4
in
2.
Pull the handle to 90° ,and put the wire into the wiring hole
3.
After inserting the wire, put the handle down
4.
After wiring,test it at the buttom
F type
1.Strip conductor to 10mm/0.4
in
2.
Pull the handle to 90° ,and put the wire into the wiring hole
3.
After inserting the wire, put the handle down
4.
After wiring,test it at the buttom
Product packaging
Our normal packing is 100 pcs per bag,one bag in a box,carton outside.
①
②
③
④
Other packaging
We also can pack as customers’ requirement
