Quick Details
-
Feed Mechanism:
-
Drop Feed
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
TOPEAGLE
-
Power:
-
550W
-
Overall Dimensions:
-
265x125MM
-
Weight (KG):
-
37 KG
-
Zigzag width:
-
12mm
-
Press foot lift:
-
8.5MM
-
Puller:
-
optional
-
Needle type:
-
134ZZ/265/438 / DPx438
-
Oiling system:
-
manual
-
Certification:
-
CE/ISO9001
Quick Details
-
Type:
-
Industrial Sewing Machine
-
Max. Sewing Thickness:
-
14MM
-
Stitch Length:
-
5.5MM
-
Feed Mechanism:
-
Drop Feed
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
TOPEAGLE
-
Power:
-
550W
-
Overall Dimensions:
-
265x125MM
-
Weight (KG):
-
37 KG
-
Zigzag width:
-
12mm
-
Press foot lift:
-
8.5MM
-
Puller:
-
optional
-
Needle type:
-
134ZZ/265/438 / DPx438
-
Oiling system:
-
manual
-
Certification:
-
CE/ISO9001

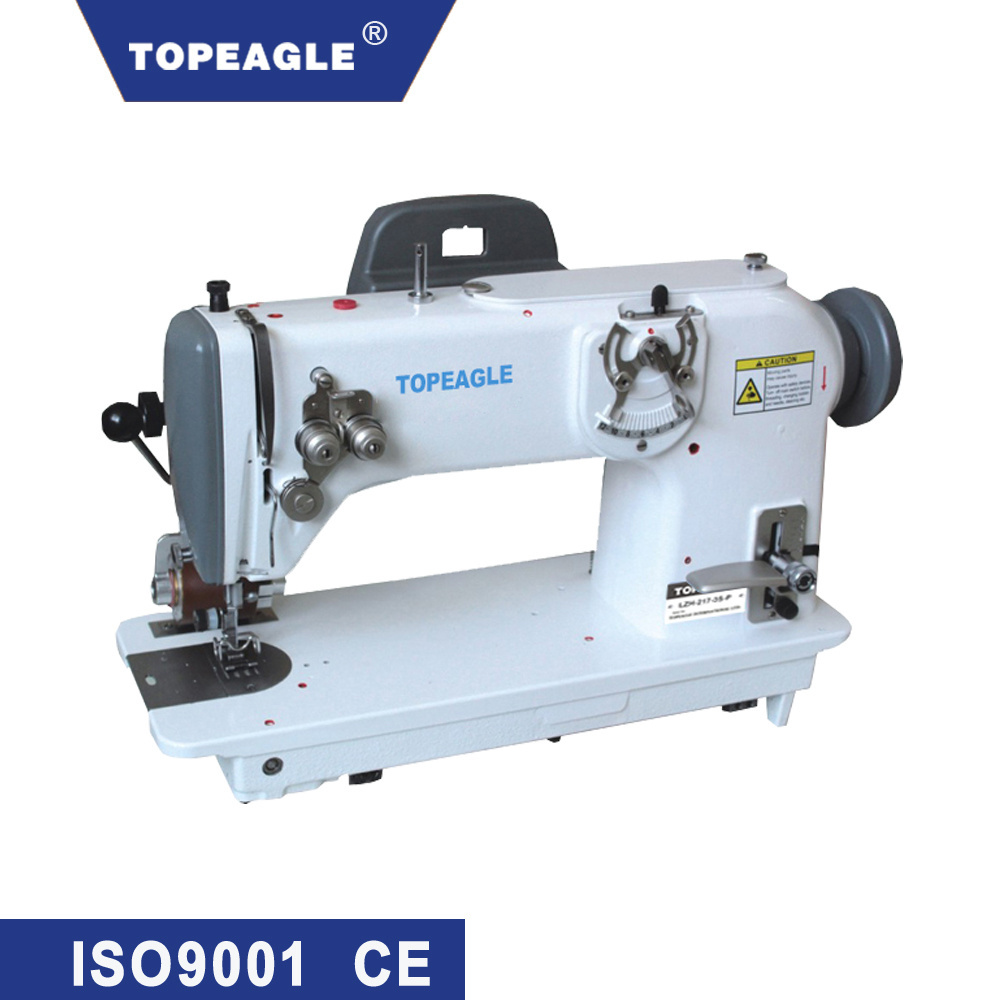

LZH-217-3S-P single needle zigzag industrial sewing machine with rear puller
Function introduction:
This machine is our company ’ s newly launched multi-function sewing machine, which is with modern structure, stitch stability, durable and precision, integrated zigzag stitch, seaming and lockstitch sewing.
Features :
1. The usage of triangular cam mechanism guarantees smooth and stable zigzag stitch, the maximum sewing width can reach 12 mm.
2. Through a unique switching mechanism, it can be switched from 2 to 3-step 4 point stitch, without changing the cam manually.
3. The external cam can achieve multi-pattern effect, the machine is with inverted sewing function, toggle lever to transfer from the left, middle and right position.
4. The unique structure of puller for the machine guarantees stable cloth feeding.
Application:
The machine is suitable foe medium-heavy materials, light materials, such as denim, glove cloth, leather, synthetic leather, and gauze etc. , suitable for shoes, gloves, bags, sofa products, sports products, hats, and other materials.
Technical data:
|
Model |
LZH-217 |
LZH-217-3S |
LZH-217-3S-P |
|
Max sewing speed |
2200rpm |
2200rpm |
2200rpm |
|
Zigzag stitch width |
12mm |
12mm |
12mm |
|
Stitch length |
5.5mm |
5.5mm |
5.5mm |
|
Presser height |
8.5mm |
8.5mm |
8.5mm |
|
Needle type |
DPx438 |
DPx438 |
DPx438 |
|
Needle size |
Nm 70-120 |
Nm 70-120 |
Nm 70-120 |
|
Working space |
265x128mm |
265x128mm |
265x128mm |
|
Stitch type |
4 step / 3 stitch |
4 step / 3 stitch |
4 step / 3 stitch |
