WITMOTION GPS-RTK Module UM982 High-precision Centimeter-level Differential Relative Positioning and Orientation UM960

WITMOTION GPS-RTK Module UM982 High-precision Centimeter-level Differential Relative Positioning and Orientation UM960

FOB Reference Price: Get Latest Price

≥1 Pieces

US $62.78

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Country of Origin:: China

Brand:: Witmotion

Maximum Output Frequency:: 20HZ

Input Voltage:: DC 3.6-6V, typical: 5.0V

Position Accuracy:: PosiHorizontal 0.8cm+1ppm, Elevation 1.5cm+1ppm.tioning orientation

Size:: 25*2.6*0.6cm

Channel:: 1408

Interface:: Type-C

Support:: 3*UART,1*I2C*, 1*SPI, 1*CAN

Baud rate:: 4800-921600-default115200

After-Sale Service:: Lifetime Technical Support

Feature:: Dual-axis inclination monitoring

Quick Details

Model Number:: WT-RTK982

Chipset:: UM980

Application:: drones, precision agriculture, robots.

Country of Origin:: China

Brand:: Witmotion

Maximum Output Frequency:: 20HZ

Input Voltage:: DC 3.6-6V, typical: 5.0V

Position Accuracy:: PosiHorizontal 0.8cm+1ppm, Elevation 1.5cm+1ppm.tioning orientation

Size:: 25*2.6*0.6cm

Channel:: 1408

Interface:: Type-C

Support:: 3*UART,1*I2C*, 1*SPI, 1*CAN

Baud rate:: 4800-921600-default115200

After-Sale Service:: Lifetime Technical Support

Feature:: Dual-axis inclination monitoring

Type	Channel	Antenna	Frequency Point	PPP	Orientation	RTCM
WTRTK-982	1408channel	Dual antennd	All frequency points	√	√	√
WTRTK-980	1408channel	Single antenna	All frequency points	√
WTRTK-960	1408channel	Single antenna	All frequency points

****WTRTK-982 and WTRTK-980 shipping packaging also include: SMA female--MMCX

****WTRTK-960 shipping packaging also include: SMA female-- IPEX1

**WTRTK-982 doc: https://drive.google.com/drive/folders/1USGufd-EMizzeMTHkAZF2xCDaathZwX6?usp=drive_link

**WTRTK-980 doc: https://drive.google.com/drive/folders/1RP-g-l8X-KwJOpTcQYS-juQpOMaA7P9b?usp=drive_link

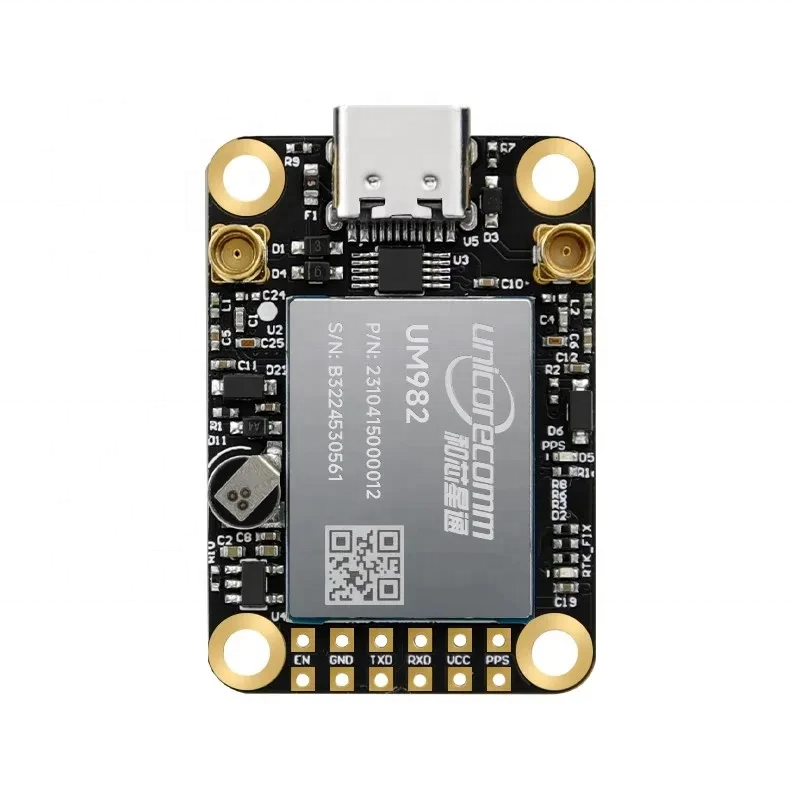

WT-RTK982 UM982 module is the general name of the series of high-performance BDS/GNSS full constellation high-precision positioning and orientation modules with the size of 26x 38mm.
The module products are all basedon the design of a new generation of Rf baseband and high-precision algorithm integrated chip-GNSS So Cindependently developed NebulaslV hexinxingtong.
The main antenna and the secondary antennasimultaneously track the full-frequency points of the whole system including the Beidou three-sphere signal torealize on-chip RTK positioning and dual-antenna directional calculation.
lt has Dual-RTK enginetechnology and diferential input RTCM format adaptive recognition function.
The built-in advanced anti-interference unit ensures that the module can still provide reliable and accurate positioning accuracy even incomplex electromagnetic environment.
lt is aimed at high-precision navigation and positioning fields such asunmanned aerial vehicles, autonomous machines, precision agriculture and intelligent driving. (GPS-RTK UM980 ZED-F9P)
