- Product Details
- {{item.text}}
Quick Details
-
Max Input Power:
-
15KW
-
Weight:
-
40kg
-
Dimension(L*W*H):
-
600*260*500mm
-
Soft Cable Length:
-
4-10m
-
Oscillation frequency:
-
20-50KHZ
-
Heating Head Weight:
-
2.3kg
-
Heating Head Diameter:
-
60mm
-
Heating Head Length:
-
160mm
Quick Details
-
Place of Origin:
-
Henan, China
-
Product name:
-
portable handheld induction brazing machine
-
Working Voltage:
-
3 phase 380V, 50/60HZ or customized
-
Max Input Power:
-
15KW
-
Weight:
-
40kg
-
Dimension(L*W*H):
-
600*260*500mm
-
Soft Cable Length:
-
4-10m
-
Oscillation frequency:
-
20-50KHZ
-
Heating Head Weight:
-
2.3kg
-
Heating Head Diameter:
-
60mm
-
Heating Head Length:
-
160mm

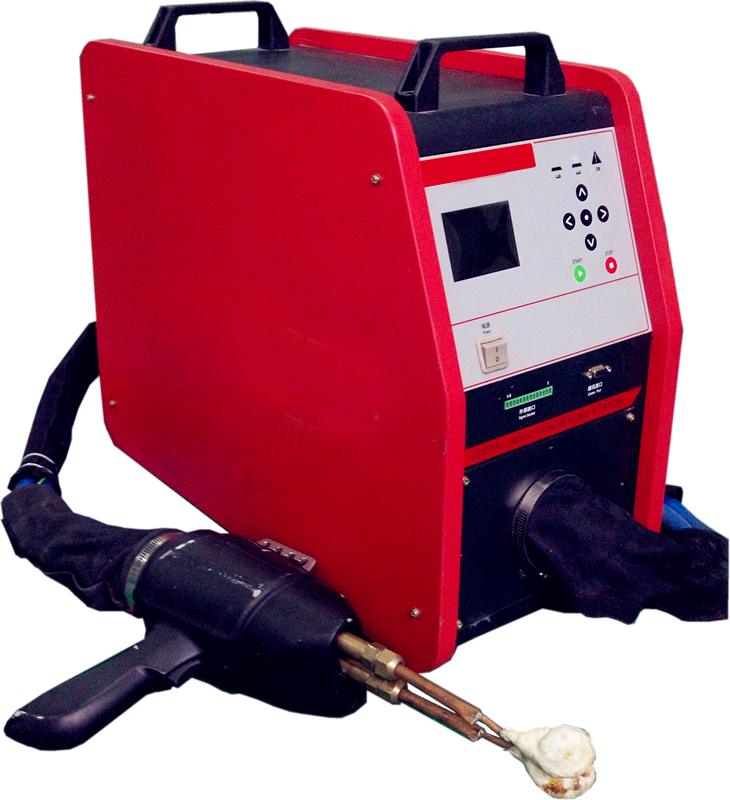

small portable induction brazing machine with soft cable
Features of small portable induction brazing machine
1. Soft cable length 3-10m, convenient to use.
2. Compared with many flame heating or welding, more safe and environment friendly, which can effectively improve the working environment and meet the demands of modern factory.
3. Compared with electron tube equipment, more energy-saving and cost-saving.
4. Can realize automated brazing working together with automatic equipments.
5. Easy to operate. New workers can operate well after simple training.
6. 24 hours continuous working.
Applications of portable handheld induction brazing machine
(1)
metal tube brazing
, such as copper tube, steel tube, and aluminum tube.
(2)
alloy cutter brazing
, such as lathe tool, milling tool, planer, saw blades, reamer, boring knife.
(3)
mining tools brazing
, such as drill bits, cutting picks.
(4)
carbide saw blade brazing
: cutter blade, serrated blade, diamond saw blade, marble saw blade, woodworking saw blade.
(5)
metal welding
: auto-accessories, motor accessories, metal terminals, hardware pieces, electric heating tube parts and fasteners.
Pre-sale service:
1. Immediate reply to your inquiry.
2. Experienced sales answer all questions in fluent English.
3. Customized design is available.
4. Detailed information of our products, and our company if needed.
After-sale service:
1. Technical support, or alternative accessories if necessary.
2. Freely guide installation, commissioning and test run.
3. One year's warranty. Once there is a trouble within one year, professional engineers and sales will be promptly appointed to help.
As for packing:
1. Induction brazing machine is always wrapped with a film layer for waterproof, and then packed with foam around for shockproof.
2. Then put the wrapped machine into a wooden case (Standard exporting ctn), and nailed at last.
As for shipping:
1. If you have a shipper in China around, we can send the induction brazing machine directly to him or her for free.
2. If you want us to send the induction brazing machine to you directly, we can send it to any main port of China promptly.
1. Zhengzhou Lanshuo Electronics Co., Ltd is located in Zhengzhou, Henan Province.
2. 15-year experience in the R&D, production and sale of high frequency and medium frequency induction heating machines.
3. Leading products include high frequency induction heating machine, super audio frequency induction heating machine, CNC quenching machine tool, medium frequency induction melting furnace, open type water cooling tower, closed loop water cooling tower, water chiller, etc.
4. Our products have been exported to more than 40 countries all over the world.
5. We have senior engineers and technical researchers. Engineers are available to service overseas if needed.
If you are interested in our products, please feel free to contact us. We will offer you the best products and service.
