Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Drilling Diameter:
-
90-130mm
-
Drilling Depth:
-
24m
-
Mobility:
-
portable
-
Drill pipe diameter(mm):
-
76*3,000 mm
-
Drilling diameter:
-
90-130 mm
-
Parameter of air compressor:
-
17 m³/min 17 bar
-
Rotary torque (Max):
-
2800 N.m
-
Traveling speed:
-
2.5-4 KM/h
-
Number of rods:
-
7+1
-
DTH hammer:
-
K40
-
Method of dust collecting:
-
Dry type (hydraulic cyclonic laminar flow)
-
Speed of rotary:
-
0-120 rpm
-
Climb ability:
-
25°
Quick Details
-
Place of Origin:
-
Henan, China
-
Dimension(L*W*H):
-
7800*3000*3300/3600mm
-
Weight:
-
12500 KG
-
Marketing Type:
-
Hot Product 2023
-
Drilling Diameter:
-
90-130mm
-
Drilling Depth:
-
24m
-
Mobility:
-
portable
-
Drill pipe diameter(mm):
-
76*3,000 mm
-
Drilling diameter:
-
90-130 mm
-
Parameter of air compressor:
-
17 m³/min 17 bar
-
Rotary torque (Max):
-
2800 N.m
-
Traveling speed:
-
2.5-4 KM/h
-
Number of rods:
-
7+1
-
DTH hammer:
-
K40
-
Method of dust collecting:
-
Dry type (hydraulic cyclonic laminar flow)
-
Speed of rotary:
-
0-120 rpm
-
Climb ability:
-
25°
Products Description

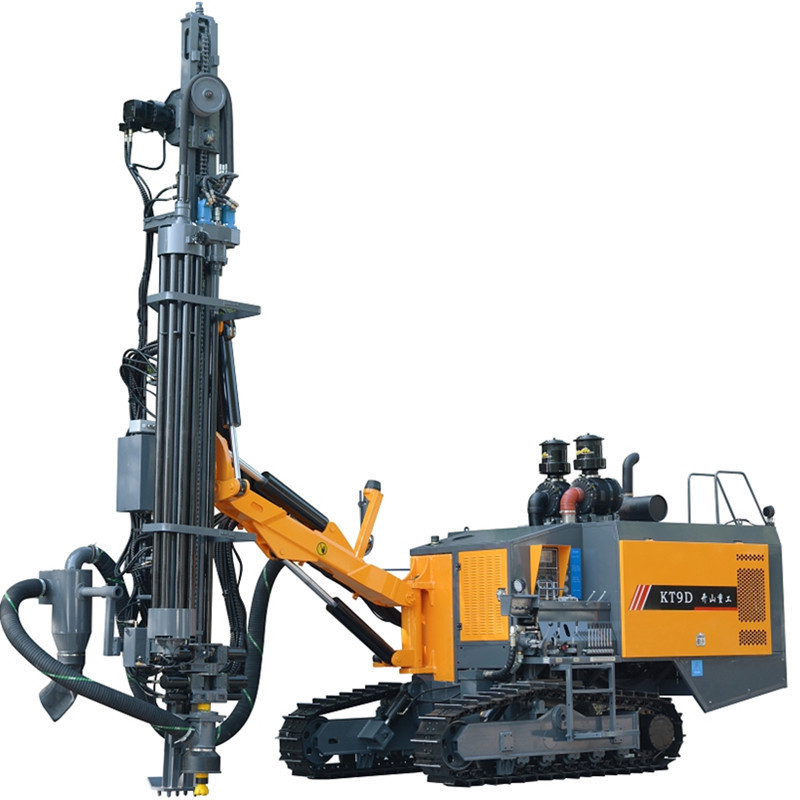

Advantages of KT9D products
▶ 1. Large displacement of the hydraulic pump directly installed on the engine after force mouth, concise structure reduces the fault source.
▶ 2. Large scale range of drill arm system can meet the needs of various working conditions is different, especially to low level hole.
▶ 3. Highly integrated hydraulic control system, and arrange centralized operation platform, a workstation can freely control the whole machine.
▶ 4. The rotary drill rig configuration to promote fast switching valve, according to the different characteristics and different working conditions, drilling and rock can be adjusted, drilling speed, a high porosity.
▶ 5. The machine is equipped with real time monitoring system and the stability of the ego to protect system, accurately reflect and control the working state of the drill rig, exceeds the scope and failure can be automatic stop.
▶ 6. Efficient two-stage dry dust collection system, greatly improve the working environment, accord with energy conservation and environmental protection concept.
▶ 2. Large scale range of drill arm system can meet the needs of various working conditions is different, especially to low level hole.
▶ 3. Highly integrated hydraulic control system, and arrange centralized operation platform, a workstation can freely control the whole machine.
▶ 4. The rotary drill rig configuration to promote fast switching valve, according to the different characteristics and different working conditions, drilling and rock can be adjusted, drilling speed, a high porosity.
▶ 5. The machine is equipped with real time monitoring system and the stability of the ego to protect system, accurately reflect and control the working state of the drill rig, exceeds the scope and failure can be automatic stop.
▶ 6. Efficient two-stage dry dust collection system, greatly improve the working environment, accord with energy conservation and environmental protection concept.
|
item
|
value
|
|
Applicable Industries
|
Building Material Shops, Farms, Home Use, Retail, Construction works , Energy & Mining, Other
|
|
Showroom Location
|
None
|
|
Condition
|
New
|
|
Type
|
Rotary Drilling Rig
|
|
Power Type
|
Diesel
|
|
Place of Origin
|
China
|
|
Brand Name
|
Kaishan
|
|
Usage
|
blasting
|
|
Voltage
|
380V
|
|
Dimension(L*W*H)
|
7800*3000*3300/3600mm
|
|
Weight
|
12500KG
|
|
Warranty
|
1 Year
|
|
Marketing Type
|
Other
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Pump, Bearing, Engine
|
|
Key Selling Points
|
Easy to Operate
|
|
Drilling Diameter
|
100mm, 90-130mm
|
|
Drilling Depth
|
24m
|
|
Mobility
|
Crawler
|
|
Drilling hardness
|
f=6-20
|
|
Diesel engine
|
Yuchai /Cummins.
|
|
Power
|
194KW/205KW/2200rpm
|
|
Air consumption
|
17m³/min
|
|
Working pressure
|
17bar
|
|
Rotate speed
|
0-120r/min
|
|
Rotational torque(Max)
|
2800N.m
|
|
Feed force
|
25KN
|
|
DTH hammer
|
K40
|
|
Method of dust removal
|
Dry(hydraulic cyclonic laminar flow)/wet(optional)
|
Details Display
Centralized operating platform
.
The highly centralized control console is simple and convenient in layout, and can judge the status of the drill truck more intuitively and clearly. All action instructions are clear and easy to operate.
Powerful rotary head. Stronger engineering track. Efficient dust collection system.
It can effectively rotate with powerful rotary head. It can The engineering track is equipped with frame leveling oil cylinder, which has strong climbing ability and is suitable for all kinds of rough roads. It is equipped with a dry high-efficiency dust collection system to provide a comfortable working environment.
Packaging & Delivery
FAQ
1. WHAT IS THE ADVANTAGE ABOUT YOUR COMPANY?
Our company has professional team and professional production line
2. HOW CAN WE GUARANTEE THE QUALITY?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. WHAT CAN YOU BUY FROM US?
Water well drilling rig,mining drilling rig,screw air compressor,construction machine,drilling tools
4. WHAT SERVICE CAN WE PROVIDE?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery；Accepted Payment Currency: USD, EUR, CNY; Accepted Payment Type: T/T, L/C, D/P D/A, Money Gram, Western Union,Cash; Language Spoken:English, Chinese, Spanish, Russian
5. THE LOGO AND THE COLOR CAN BE CUSTOMIZED?
Yes, we welcome you to sample custom.
Our company has professional team and professional production line
2. HOW CAN WE GUARANTEE THE QUALITY?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. WHAT CAN YOU BUY FROM US?
Water well drilling rig,mining drilling rig,screw air compressor,construction machine,drilling tools
4. WHAT SERVICE CAN WE PROVIDE?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery；Accepted Payment Currency: USD, EUR, CNY; Accepted Payment Type: T/T, L/C, D/P D/A, Money Gram, Western Union,Cash; Language Spoken:English, Chinese, Spanish, Russian
5. THE LOGO AND THE COLOR CAN BE CUSTOMIZED?
Yes, we welcome you to sample custom.
