Quick Details
-
Product name:
-

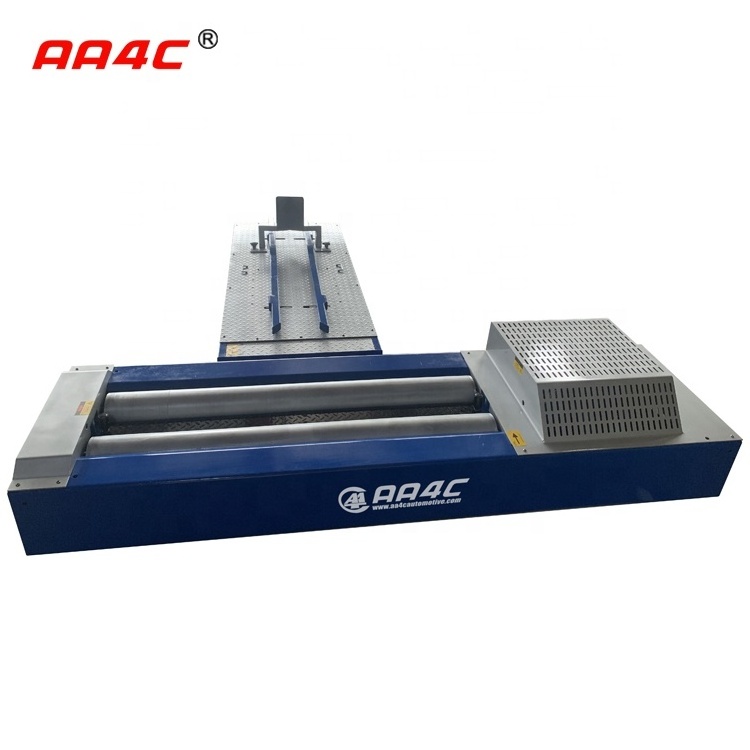

AA4C Motorcycle Chassis dynamometer
-
Applicable motorcycle type:
-
For 2 wheels
-
Maximum axle-load mass (kg):
-
300KGS
-
Axle Distance(mm):
-
850-1500
-
Range of engine capacity(cc):
-
50cc-650cc
-
Min. height from floor(mm:
-
90
-
Max. testing speed(km/h):
-
120
-
Payment term:
-
T/T 30% Deposit
-
MOQ:
-
1 Set
-
Power:
-
3KW
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
AA4C
-
Warranty:
-
12 Months
-
Product name:
-
AA4C Motorcycle Chassis dynamometer
-
Applicable motorcycle type:
-
For 2 wheels
-
Maximum axle-load mass (kg):
-
300KGS
-
Axle Distance(mm):
-
850-1500
-
Range of engine capacity(cc):
-
50cc-650cc
-
Min. height from floor(mm:
-
90
-
Max. testing speed(km/h):
-
120
-
Payment term:
-
T/T 30% Deposit
-
MOQ:
-
1 Set
-
Power:
-
3KW
Products Description
Introduction
other professional equipment that need stable constant speed, constant force and constant power conditions to test motorcycles.
In the system of motorcycle chassis dynamometer, the friction in the drum can be measured more accurately by the test of parasitic
power (internal loss) coasting, which makes the measurement of the external force exerted by the motorcycle on the drum more
accurate. The system also has the function of simulating the friction coefficient of different road, and measuring the output
power and torque of motorcycle engine under different road conditions. The system can also force the motorcycle back to the set
speed, measure the output power under the speed and the power torque curve formed by connecting each speed point. The equipment
has the advantages of superior performance, complete functions, reliable quality and easy operation. The motorcycle chassis
dynamometer is the first choice for motorcycle manufacturers to test the performance of motorcycles.
Features
* The rugged design of the power absorption system also ensures long service life in the most demanding test environments
* Which can do constant speed test (Customizable test point); constant drive power test (Customizable test point); vehicle
speedometer calibration; acceleration time test; coasting time and distance test; starting acceleration test; exceeding
acceleration test; climbing performance test, etc.
* The user can connect the motorcycle ECU to analyze the driving performance, structural design and other relevant data of the
motorcycle under the working condition created by the dynamometer
* Double safety insurance mechanism to ensure the safety of test. With self-protection function, emergency stop and software
over limit protection
* All real-time data during detection can be saved 10 times per second
* It has a variety of emission test functions
* Equipped with automatic cooling system, i.e. axial flow fan, which can be controlled automatically, manually or separately
Technical parameters
Model CTMTDCG-300
Applicable motorcycle type
For 2 wheels
Max. axle load（kg）300
Axle Distance（mm） 850-1500
Wheel base（mm）
Range of engine capacity（cc）50cc-650cc
Min. height from floor（mm）90
Max. testing speed（km/h）120
Max. absorption power of eddy current（KW）160
Measurable rated torque（NM）1600
Motor Power（kw） 3
Clamping Method
Pneumatic centering
Clamping Range（mm）50-230
Applicable motorcycle type
For 2 wheels
Max. axle load（kg）300
Axle Distance（mm） 850-1500
Wheel base（mm）
Range of engine capacity（cc）50cc-650cc
Min. height from floor（mm）90
Max. testing speed（km/h）120
Max. absorption power of eddy current（KW）160
Measurable rated torque（NM）1600
Motor Power（kw） 3
Clamping Method
Pneumatic centering
Clamping Range（mm）50-230
Related products
Certifications
Trade Information
|
Trade Terms
|
FOB / CFR
|
|
MOQ
|
3UNITS (USD200.00 extrally charged for LCL shipment to cover the inland freight + custom declaration fee)
|
|
Port
|
SHANGHAI
|
|
Shipment
|
BY SEA /AIR
|
|
Payment Terms
|
T/T
|
|
Payment condition
|
30% prepayment,balanced againt BL copy&L/C at sight.
|
|
Supply Capability
|
1000units/month
|
|
Sample Availability
|
Yes ,But all freight(Inland freight +seafreight) covered by buyer
|
|
Sample package
|
Post :2900*500*720mm ; Power unit: 940X280X370mm
|
|
Sample Time
|
5-10days(depends on whether have in stock)
|
|
Lead Time
|
25-30days(Rush season 5-10days longer)
|
|
Packing
|
Metal frame&Carton
|
|
Delivery time
|
30-45days shipping time (depends on destination position)
|
|
Service
|
1% free parts;1year warranty after port of destination
|
