Quick Details
-
Brand Name:
-
UT-King
-
Use:
-
FTTH
-
Warranty Time:
-
1 Year
-
Product name:
-
Fiber optic Patch Panel
-
Ports:
-
12/24/48/144 prots or customized
-
Name:
-
Fiber Optical terminal box
-
Connector:
-
SC/LC/ST/FC
-
Size:
-
430*250*1U
-
Weight:
-
4kg/pcs
-
Material:
-
Cold rolled steel sheet
-
Package:
-
5pcs/carton
-
Application:
-
FTTH FTTB FTTX Network
Quick Details
-
Type:
-
Racks & Enclosure
-
Model Number:
-
FPP02
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UT-King
-
Use:
-
FTTH
-
Warranty Time:
-
1 Year
-
Product name:
-
Fiber optic Patch Panel
-
Ports:
-
12/24/48/144 prots or customized
-
Name:
-
Fiber Optical terminal box
-
Connector:
-
SC/LC/ST/FC
-
Size:
-
430*250*1U
-
Weight:
-
4kg/pcs
-
Material:
-
Cold rolled steel sheet
-
Package:
-
5pcs/carton
-
Application:
-
FTTH FTTB FTTX Network

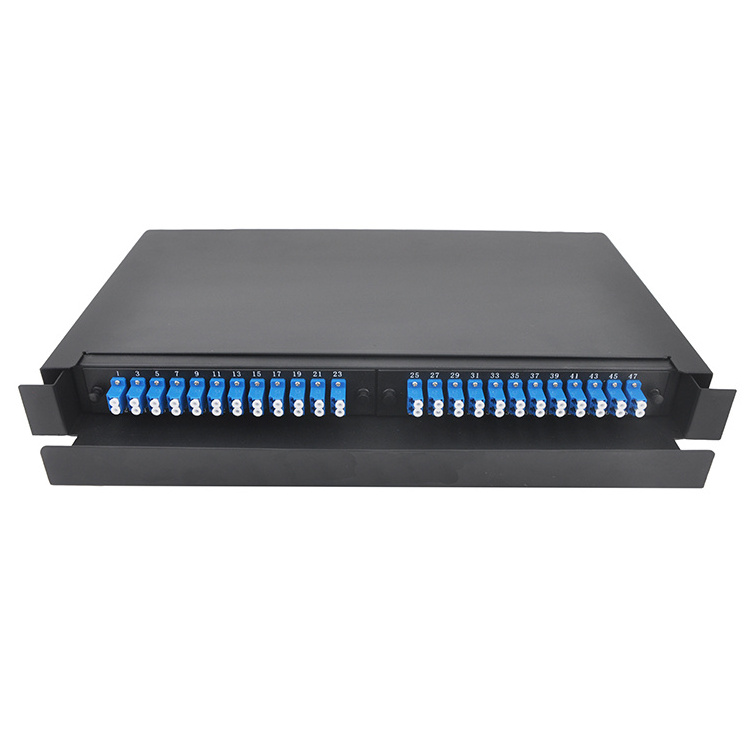

Sliding type terminal box 1U 12/24/48 ports SC/LC/ST/FC Rack Mount Fiber Optic Patch Panel
GPZ/JJ series can be applied in the branch connection of fiber termination,working as distribution box;19" standard structure rack mounted;Available for the installation of FC,SC,ST,LC adaptors.
1. Application
Rack mount serial dustproof cover optical fiber terminal box can be applied in the storage of indoor optical cable, distribution and terminal of various optical fiber system. Available for the rack installation of adaptors for FC, SC, ST, LC and so on. Revolving structure, easy for operation.
2.Features
l The body make use of cold rolling steel,and the surface use the technique of dim plastic.strong
adhesive force,artistic and durable ;
l Standard size, light weight and reasonable structure ;
l Splice tray inside changeable ;
l Can be used in 19'', 23'' standard distribution frame ;
l Suitable for ribbon and single fiber ;
l SC/ST/FC/LC ports is available ;
l Front mark on the plate is easy for identification and operation ;
l 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and a dapters;
l Easy for management and operation .
3. Performance for fiber optic terminal box
n External size 480 x250x 1U, 2U,
n Fiber capacity from 12 cores to 48 cores
n Insertion loss: <0.3dB
n Return loss: PC< 40 dB, UPC<50dB, APC< 60dB
n Winding radius ≥40mm
n Working temperature -25°C~+45°C
n Atmosphere pressure 70~106Kpa
n Insulated Resistance 2×10MΩ/500V(DC)W
n Voltage- resistance : Under the effect of 3kv/DC/1min, non-puncture, and no arc-over.
