- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
Specification
-
Weight:
-
2 kg
-
Product name:
-
pulse bag dust collector
-
Color:
-
Blue,Yellow ,Red or as you required
-
Pressure(Mpa):
-
0.4-0.6
-
Wind capacity(m3/h):
-
1500-21600
-
Air consumption(m3/min):
-
1.5-7.5
-
Spare parts:
-
Supply by us
-
Structure:
-
Advanced
-
Application:
-
Dust Collect
-
Name:
-
Industrial Dust Collector
-
Price:
-
best price
Quick Details
-
Minimum Particle Size:
-
0.5 Micron
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hongji
-
Dimension(L*W*H):
-
Specification
-
Weight:
-
2 kg
-
Product name:
-
pulse bag dust collector
-
Color:
-
Blue,Yellow ,Red or as you required
-
Pressure(Mpa):
-
0.4-0.6
-
Wind capacity(m3/h):
-
1500-21600
-
Air consumption(m3/min):
-
1.5-7.5
-
Spare parts:
-
Supply by us
-
Structure:
-
Advanced
-
Application:
-
Dust Collect
-
Name:
-
Industrial Dust Collector
-
Price:
-
best price

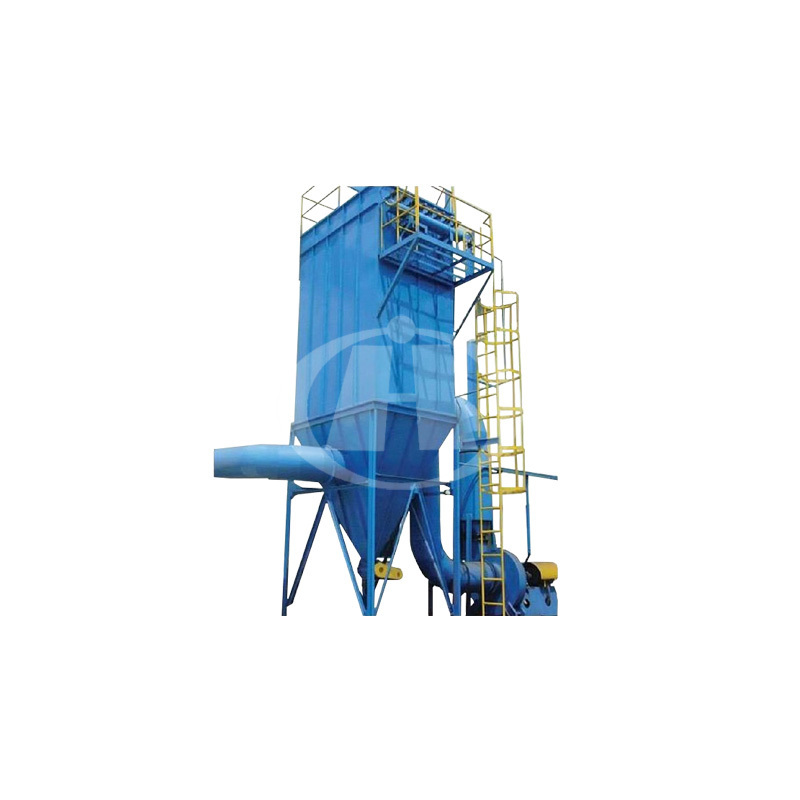

dust collector blower for Power Plant or Cement Plant
1. Company Introduction:
Our factory is a manufacturer and exporter of mining machinery in China.
Our main products are grinding mill, briquetting machine, sand making production line, stone production line, magnetic separating production line, Flotation separating production line, cement production line, crusher, dryer, rotary dryer, rotary kiln, coal gasifier, conveyor, ball mill and so on .
All of them are ISO9001:2008 confirmed.
2.Description of dust collector blower:
DMC dust collector makes the compressed air as driving force for cleaning air, uses pulse injection organization releases the compressed air instantly and induces the severalfold secondary air into the filter bag at high speed to make the bags expand rapidly so as to impact,shake and reverse flow to clean the dust.
The products are a series of products with the filter bag for a set number 12, mainly in 24 bags, 36 bags, 48 bags, 60 bags, 72 bags, 84 bags, 96 bags, 112 bags, 120 bags.
3.Application of dust collector blower:
It is widely used to collect dust in grinder, crusher, packing machine, silo top, matching materials of cement industry. It can clean not only air with common dust, but air with high density (even 1300g/Nm³), so it can collect final product of vertical mill and 0-sepa separator. It can be also widely used in grain, light industry, electric power, chemical industry, metallurgy, etc.
4.Futures of dust collector blower:
1) High Purification efficiency, ability to handle large gas
2)Stable performance,long service life
3)Convenient operation and maintenance
4)Suitable for dust removing of a variety of multiple points of dust producing
5.Main technical parameters of dust collector blower:
|
Model |
Wind capacity (m3/h) |
Filtration area (m2) |
Wind filtration speed
|
Bag number (strip) |
Running resistence
|
Thickness of feeding
|
Thickness of exit
|
|
DMC-32 |
1500-2100 |
24 |
1-1.5 |
32 |
below1200 |
below200 |
below50 |
|
DMC-48 |
2100-3200 |
36 |
1-1.5 |
48 |
|||
|
DMC-64 |
2900-4300 |
48 |
1-1.5 |
64 |
|||
|
DMC-80 |
4000-6000 |
60 |
1-1.7 |
80 |
|||
|
DMC-96 |
5200-7000 |
72 |
1.2-1.7 |
96 |
|||
|
DMC-112 |
6000-9000 |
84 |
1.2-1.8 |
112 |
|||
|
DMC-120 |
10800-21600 |
96 |
1.5-4.0 |
120 |
|
|
Pressure (mpa) |
Under pressure
|
Consume air
|
Blower power |
Electro
|
A model (with head) |
B Model (without head) |
|
DMC-32 |
0.4-0.6 |
5000 |
0.1 |
1.5 |
4 |
1350 |
1220 |
|
DMC-48 |
0.14 |
3.0 |
6 |
1620 |
1470 |
||
|
DMC-64 |
0.20 |
3.0 |
8 |
1850 |
1670 |
||
|
DMC-80 |
0.24 |
5.5 |
10 |
2400 |
2150 |
||
|
DMC-96 |
0.29 |
5.5 |
12 |
2800 |
2540 |
||
|
DMC-112 |
0.34 |
7.5 |
14 |
3200 |
2880 |
||
|
DMC-120 |
0.45 |
7.5 |
20 |
4200 |
6. Export country of dust collector blower:
Russia,India, Vietnam, Kazakhstan, Mongolia, Pakistan, Ecuador, middle east, Oceania, Europe , America and other countries and areas.
