Tenet parking lot paper ticket printing system management machine vending machine

Tenet parking lot paper ticket printing system management machine vending machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $290

≥50 Pieces

US $240

≥500 Pieces

US $190

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 Years

Loading Capacity:: 1

Product Name:: ticketing machine system

Application:: Parking access control box

model:: TPM-0630-T10-1 (in) TPM-0630-T10-2 (out)

LAN interface:: 1, 100/10mbps, connecting gateway

Dimensions:: 480 X 1380 X 320mm

Working power supply:: AC/220V, 50~60Hz

Maximum power consumption:: 90W

Installation method:: erected

Color:: Yellow

Communication:: RS485 TCP/IP

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Tenet

Model Number:: T10

Warranty:: 1 Years

Loading Capacity:: 1

Product Name:: ticketing machine system

Application:: Parking access control box

model:: TPM-0630-T10-1 (in) TPM-0630-T10-2 (out)

LAN interface:: 1, 100/10mbps, connecting gateway

Dimensions:: 480 X 1380 X 320mm

Working power supply:: AC/220V, 50~60Hz

Maximum power consumption:: 90W

Installation method:: erected

Color:: Yellow

Communication:: RS485 TCP/IP

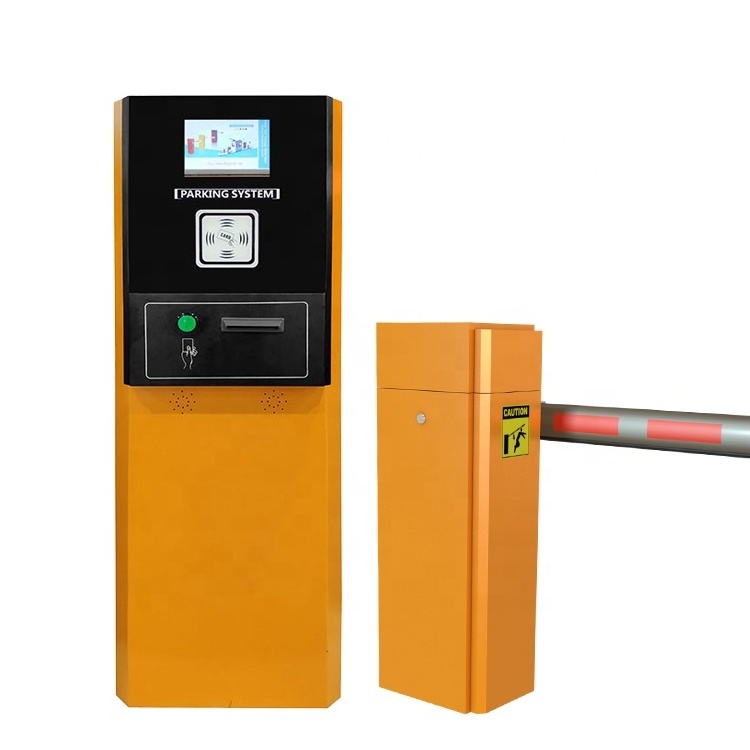

Tenet best selling Parking Ticket Machine Parking Card Dispenser Car Parking

T6/T10 card/ticket dispenser machine Intelligent Car Parking System with Rfid Dispenser is for managing pay-to-park facilities with high traffic flow, for both temporary visitor and registered members. It is ideal solution for parking lots of premises such as shopping center, exhibition center, hospitals, airports etc.

Product Name	Tenet Vehicle Paper Ticket Parking Access Control terminal Box
Application	Parking access control system/parking card/ticket system
Equipment model	TPM-0630-T10-1 (in) TPM-0630-T10-2 (out)
LAN interface	1, 100/10mbps, connecting gateway
Dimensions	480 X 1380 X 320mm
Working power supply	AC/220V, 50~60Hz

How does card dispenser machine for Parking System works?

1. A vehicle approaches entry and triggers Loop Coil of Entry Station

2. The visitor presses ticket button of Entry Station to get a proximity card

3. Entry Barrier opens automatically, and it closes automatically after the vehicle passes loop coil of EntryBarrier

4. He walks to the charging point which is located in central place instead of the exit, and gives the card to the cashier
5. payment information will be shown on the display

6. The visitor pays cash, then the cashier return back the card to him
7.Within given time he drives to the exit and inserts the card into unmanned Exit Station, and then Exit Barrier open

8.Exit Barrier closes automatically after the vehicle passes the loop coil of Exit Barrier

Main Feature

1.TCP/IP communication & data transmission;
2.32-bit ARM dual-core processing technology;
3.Easy to install, debug and maintain; modular structure, high integration
4.RS232/485, Wiegand 26/34 various RFID interface are available in one control board
5.Nesting function available;Speaker available; Off-line working available;
6.Extendible long distance read function;.Extendible plate-number identification and auto-printing;
7.Multiple charging mode, charging standards can be defined as user;
8.Flexible system configuration, can be extended to multi-level parking lot management system;
9. IP44 waterproof, dustproof and rustproof
10. EM/Mifare Proximity card, UHF card available;

Main Features

1.Used for parking lot access control, temporary parking dispen card，a utomatic card dispenser; collect card ; long term car swipe card to entry and exit

2.8-inch color LCD screen,3.Advertisement function available.
