Quick Details
-
Brand Name:
-
XHF
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
applicable for circulating filtration of electroplating solutions
-
Material:
-
PP plastic steel with injection moulding or acryl
-
Filter media:
-
Filter element/ Filter tube /Carambola filter / Filter paper
-
Voltage:
-
220V/380V
-
Frequency:
-
50/60HZ
-
Filter Capacity:
-
15-600L/min
-
Feature:
-
Long Service Life
-
After Warranty Service:
-
Video technical support
Quick Details
-
Applicable Industries:
-
industry plating, Chemical plating filter, Electrophoresis filter, nickel plating factory, Electroplating chrome solution filter, Acid copper plating filter
-
Weight (KG):
-
70
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XHF
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
applicable for circulating filtration of electroplating solutions
-
Material:
-
PP plastic steel with injection moulding or acryl
-
Filter media:
-
Filter element/ Filter tube /Carambola filter / Filter paper
-
Voltage:
-
220V/380V
-
Frequency:
-
50/60HZ
-
Filter Capacity:
-
15-600L/min
-
Feature:
-
Long Service Life
-
After Warranty Service:
-
Video technical support

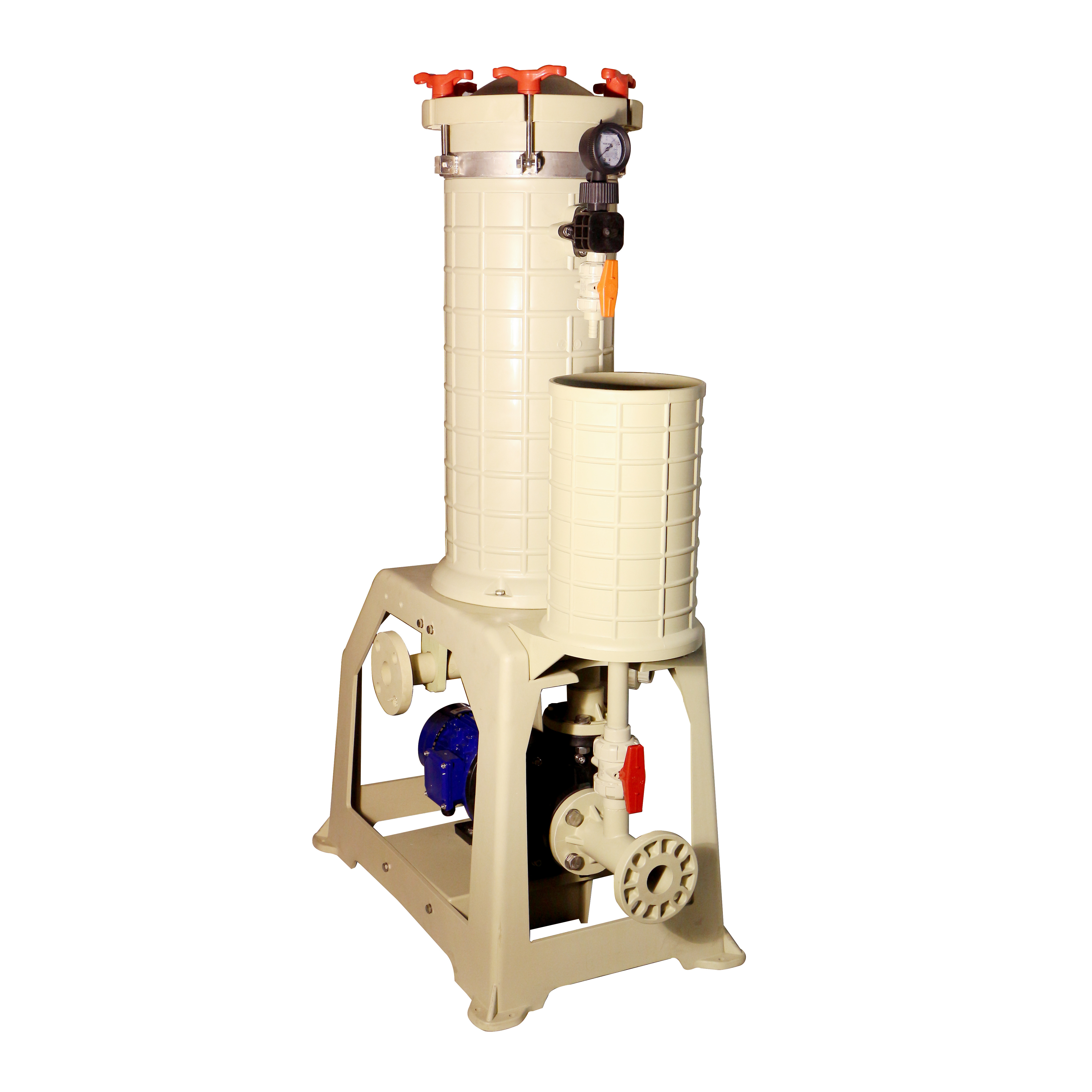

China Supplier Acid And Alkaline Resistant Chemical Liquid Filter Durable Plating Filter
This filter is mainly suitable for filtering the following solution.
1. Various hardware accessories plating solution.
2. PCB plating solution and PCB etching solution.
3. Surface treatment liquid.
4. chemical liquid.
5. Nitric acid and sulfuric acid and hydrochloric acid.
Features:
1. ONE PIECE INJECTED WITHOUT WELDING OF FILTER BODY and stand are adopted the integrative mould and increase the intensity of the filter body with the projection rib.
2. According to the chemical density and temperature feature to inject the filter body, the material of filter body can be made of PP,CPVC, or PVDF, w hich has the characteristics of high temperature resistance, acid and alkali resistance.
3. The least welding of filter in the filter field, it greatly decrease the leakage.
4. Assemble with self-priming pump or magnetic drive pump is depend on customer. If with magnetic drive pump, it can avoid the problem of dry running leakage and environment pollution.
5. The same machine can be used for different filter element materials: lock core filter, paper filter and bag filter and so on.
6. Safety switch device, when the motor is overloaded or single load, the safety switch automatically cuts off the power supply.
7. Humanized component design, production of all parts by mold opening,100% easy to exchange parts, and can be changed at any time according to different filter materials.
8. The motor protective cover ensures that the motor is not easy to be corroded in acid gas.
9. it is equipped with a bottom valve and a check valve , also equipped with a group of PVC or PP flange at the inlet and outlet.
10. Standard accessories: union or flange (with gasket and PVC screws).
11. Purchase accessories: switch (include guard),foot valve, check valve, flow-seeing tube, in/outlet flexible, or filter bag, etc.
Structural Feature :
