Quick Details
-
Floor:
-
18mm thickness MGO Board
-
Window:
-
Aluminum alloy/PVC Window
-
Door:
-
Steel security/Sliding door
-
Color:
-
Customized
-
External Size:
-
6000*3000*2800mm or customized
-
Electrical Device:
-
Switch, Light, Socket, etc for customized standard
-
Product name:
-

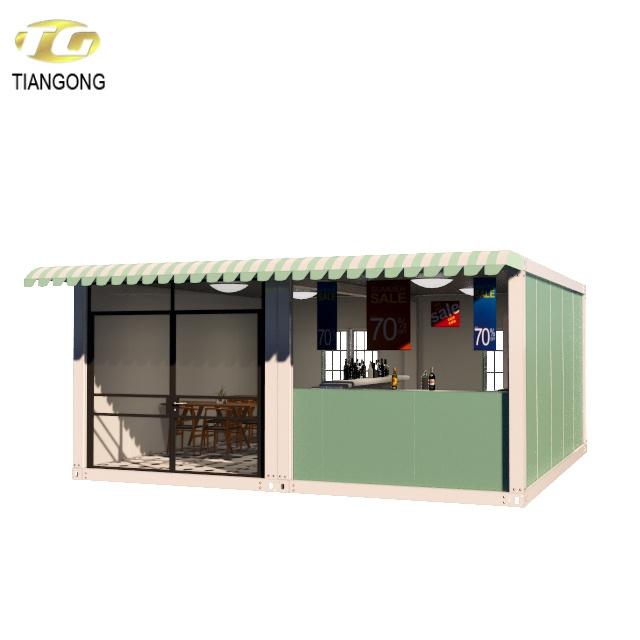

Mobile container restaurant fast outdoor food kiosk design
Quick Details
-
Place of Origin:
-
Henan, China
-
Wall:
-
EPS/Rcok wool Sandwich Panel
-
Roof:
-
EPS/Rock wool Sandwich Panel
-
Floor:
-
18mm thickness MGO Board
-
Window:
-
Aluminum alloy/PVC Window
-
Door:
-
Steel security/Sliding door
-
Color:
-
Customized
-
External Size:
-
6000*3000*2800mm or customized
-
Electrical Device:
-
Switch, Light, Socket, etc for customized standard
-
Product name:
-
Mobile container restaurant fast outdoor food kiosk design
Product name:prefabricated bar Mobile container restaurant fast outdoor food kiosk design for sale
|
External Size |
6000mm(L)*3000mm(W)*2800mm(H) |
|
Internal Size |
5800mm(L)*2800mm(W)*2600mm(H) |
|
Roof Board |
Insulation board with corrugated Steel Plate |
|
Wall Panel |
50mm/75mm thickness EPS/Rock wool Sandwich Panels |
|
Floor |
18mm Mgo Board |
|
Door |
930mm*1980mm |
|
Window |
W930mm*H1200mm PVC/Aluminum alloy |
|
Frame |
Q235 steel |
|
Material |
All Steel Galvanized + baking powder paint |
Technical Parameter
| Number | Item | Value | Number | Item | Value |
| 1 | Roof load | ≥50kilograms/m² | 6 | Wall deformation | ≤300kilograms/m² |
| 2 | Flooring load | ≥150kilograms/m² | 7 | Seismic grade | 10-magnitude |
| 3 | Aisle load | ≥200kilograms/m² | 8 | Wind loading | 11 level of wind loading |
| 4 | Wall side stress | ≥80kilograms/m² | 9 | Internal width | 2800mm |
| 5 | Fire proof | A grade | 10 | EXternal width | 3000mm |
Introduction of prefabricated bar Mobile container restaurant fast outdoor food kiosk design for sale
Frame made of Q235 steel board, seamless bended, seamless welded, surface galvanized. Painted with anticorrosive baking paints, laying materials: laminate board, PVC board, blockboard, MGO board etc.
Introduction of the Wall System
Consists of 0.42mm colored steel sheets on both sides or one 0.42 colored sheet and one 0.42mm stainless sheet, integrated with EPS\ROCK WOOL etc. The thickness of wall panels is 50mm--75mm. The density of the EPS is 12kg\m³, the density of the rock wool is 120kg\m³. And the color of the wall is as per the clients’ demands.
Advantage of prefabricated bar Mobile container restaurant fast outdoor food kiosk design for sale
1.Perfect for modular/prefab site offices,cabins,warehouse,villa,toliet,shop,hotel,camp,office.
2.Efficient, low cost designs that can be customized for end user requirements.
3.Easy for low skilled workers to assemble.
4.The light steel frame structure is strong and reliable.
5.Many modular units can be stacked and linked together to create more space.
Project design
The container products of fast assembly low cost insulated materials container dormitory for these kinds of projects are customized design.
| One 20'GP shipping container can most hold 6 units of container houses |
| one 40'HC shipping container can most hold 14 units of container houses |
