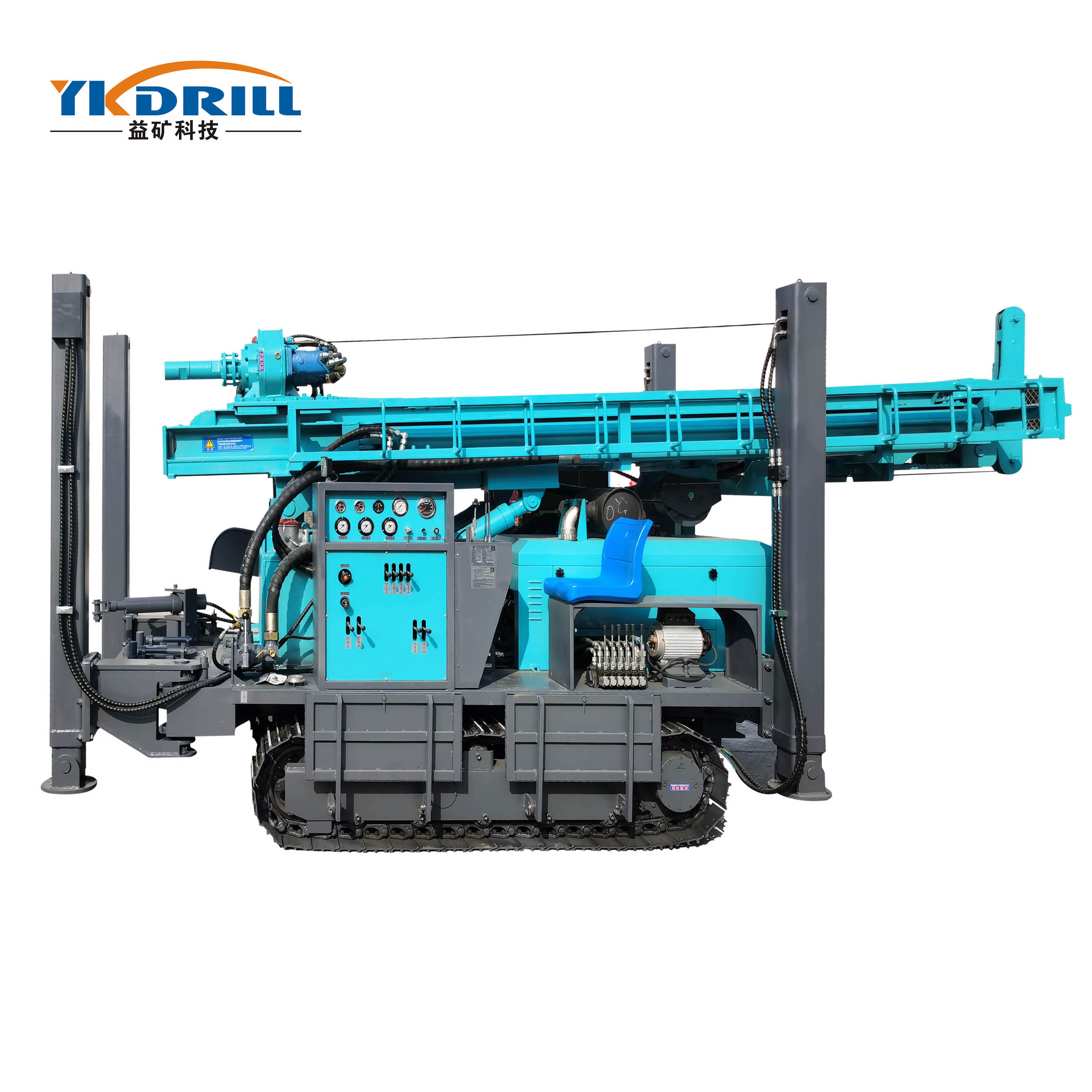

ZY series full hydraulic core drilling rig is a new type of drilling rig developed by our company on the basis of referring to the advanced technology of similar drilling rigs at home and abroad. The series products include ZY600, ZY800 and ZY1000. Fully hydraulic core drilling rigs are mainly suitable for drilling of solid mineral deposits, engineering geology, shallow oil, natural gas, and groundwater drilling, and can also be used for drilling surveys, tunnel ventilation, and dam grouting for railways, highways, bridges, water conservancy and hydropower, and tunnel engineering Engineering drilling.
The main features of the drilling rig:
The drilling rig is driven by full hydraulic pressure, the rotation of the power head is driven by an axial plunger pump and an inclined-axis plunger motor, two mechanical gears plus stepless speed regulation, and an advanced structure. The power head adopts an oil cylinder chain double-speed feeding mechanism, which is stable and reliable in movement, and has a lateral translation mechanism of the power head. The mast adopts an oil cylinder to lift and fall to slide as a whole, and can drill holes within the range of 0-90°. The hydraulic system adopts load sensitive control, with high working efficiency and large torque. The drilling rig is equipped with hydraulic trojan grippers, hydraulic leveling legs, retractable mast and other devices to facilitate the rapid positioning of the drilling rig. Equipped with wireless remote control crawler, it is suitable for various terrains and controls the crawling of the drilling rig within a safe distance to prevent sudden danger.
Structural part
The overall structure of the drilling rig is compact, the layout is reasonable, the performance is superior, and the operation is simple. The crawler of the drilling rig adopts a low-speed high-torque hydraulic motor, wireless remote control walking, high safety, strong climbing ability, and the moving speed of the whole machine can reach 2km/h, which is suitable for transition and operation in mountainous areas and muddy ground.
Hydraulic system
The hydraulic system is equipped with double hydraulic oil filtration, two-stage air cooling + one-stage water cooling system, which ensures the heat balance and cleanliness of the hydraulic system, keeps its system temperature within the specified range, and greatly improves the stability and durability of the drilling rig , The hydraulic hose adopts two layers of steel wire braided high-pressure hose, plus a protective sleeve, which is wear-resistant.
power part
It adopts Yuchai/Weichai turbocharged engine, axial piston pump + triple gear pump full hydraulic drive, high system pressure and strong power output.
power head part
The power head adopts mechanical two-speed stepless speed regulation design, low-speed torque multiplication, stable and reliable drilling, and the power head is equipped with a lateral translation mechanism, which is convenient for lifting and unloading drilling tools.
hydraulic motor
The drilling rig is driven by an inclined-axis plunger motor, which has the advantages of compact structure, small size, impact resistance, long life, and large torque, which greatly improves drilling efficiency.
Technical Parameter
|
Rig model
|
|
ZY-600
|
ZY-800
|
ZY-1000
|
|
|
Drilling capacity
|
BTW (m)
|
650
|
1200
|
1400
|
|
|
|
NTW (m)
|
600
|
1000
|
1200
|
|
|
|
HTW (m)
|
300
|
800
|
1000
|
|
|
Hydraulic system
|
Rated pressure Mpa
|
32+16
|
32+16
|
32+16
|
|
|
|
cooling method
|
Air cooling plus water cooling
|
Secondary air cooling plus water cooling
|
Secondary air cooling plus water cooling
|
|
|
engine parameters
|
model
|
Yuchai four-cylinder 92kW
|
Yuchai/Weichai six-cylinder 118kW
|
Weichai six-cylinder 129kW
|
|
|
|
Rated power Kw
|
92
|
118
|
129
|
|
|
|
Rated speed rpm
|
2200
|
2200
|
2300
|
|
|
Power head
parameters |
Maximum torque N.m
|
1400
|
1800
|
2600
|
|
|
|
Maximum speed rpm
|
1400
|
1400
|
1400
|
|
|
|
give process m
|
1.9
|
2
|
3.5
|
|
|
|
Through hole diameter mm
|
95
|
95
|
95
|
|
|
|
Lifting force kN
|
240
|
300
|
360
|
|
|
|
Propulsion kN
|
120
|
150
|
180
|
|
|
Parameters of Rope
Coring Winch |
Capacity m
|
800
|
1000
|
1200
|
|
|
|
Lifting force kN
|
15
|
20
|
24
|
|
|
|
Lifting speedm/min
|
110
|
110
|
110
|
|
|
|
Wire rope diameter mm
|
5
|
6
|
6
|
|
|
Mast parameters
|
Full height/m
|
6.1
|
7.9
|
7.9
|
|
|
|
Drilling angle°
|
45-90
|
0-90
|
0-90
|
|
|
|
Sliding stroke mm
|
800
|
1200
|
1200
|
|
|
Gripper parameters
|
|
BQ/NQ/HQ/PQ
|
130mm
|
130mm
|
|
|
Track parameters
|
Maximum climbing angle°
|
20
|
30
|
30
|
|
|
|
Maximum driving speedkm/h
|
2
|
2
|
2
|
|
|
shipping size
|
Length*width*height mm
|
4500*1900*2300
|
4500*2100*2800
|
5600*2200*3000
|
|
|
Machine mass (t)
|
|
4.5
|
6
|
7.3
|
|
Note: The above parameters are subject to change without further notice, please refer to the actual product.
Drilling parameters
|
Drill model
|
Drill pipe outer
diameter |
Drill pipe inner
diameter |
Drilling
diameter |
Core diameter
|
|
BTW
|
57.3mm
|
48mm
|
59.6mm
|
42mm
|
|
NTW
|
73.3mm
|
64mm
|
75.3mm
|
56.1mm
|
|
HTW
|
91.3mm
|
81mm
|
95.5mm
|
71mm
|
Note: The drilling capabilities of the above types of drilling rigs may be different due to factors such as construction environment, formation conditions, supporting drilling tools and drilling technology.
