Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
11KW
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
1650mm*856mm*1280mm
-
Product name:
-
Banana dryer machine
-
Function:
-
Cooling+Drying+Dehumidity
-
Heating source:
-
Electricity
-
Production capacity:
-
200-3000 kg per batch
-
Temperature:
-
10-75 (adjustable)
-
Operation:
-
Simple Operation
-
Material:
-
Steel or 304# stainless steel
-
Advantage:
-
Low Consumption High Efficiency
-
Dehumidify:
-
24 L/H
-
After-sales Service Provided:
-
Online support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DRYTECH
-
Type:
-
Dryer
-
Voltage:
-
220V/380V
-
Power:
-
11KW
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
1650mm*856mm*1280mm
-
Product name:
-
Banana dryer machine
-
Function:
-
Cooling+Drying+Dehumidity
-
Heating source:
-
Electricity
-
Production capacity:
-
200-3000 kg per batch
-
Temperature:
-
10-75 (adjustable)
-
Operation:
-
Simple Operation
-
Material:
-
Steel or 304# stainless steel
-
Advantage:
-
Low Consumption High Efficiency
-
Dehumidify:
-
24 L/H
-
After-sales Service Provided:
-
Online support
Nature drying type banana dryer machine for banana chips

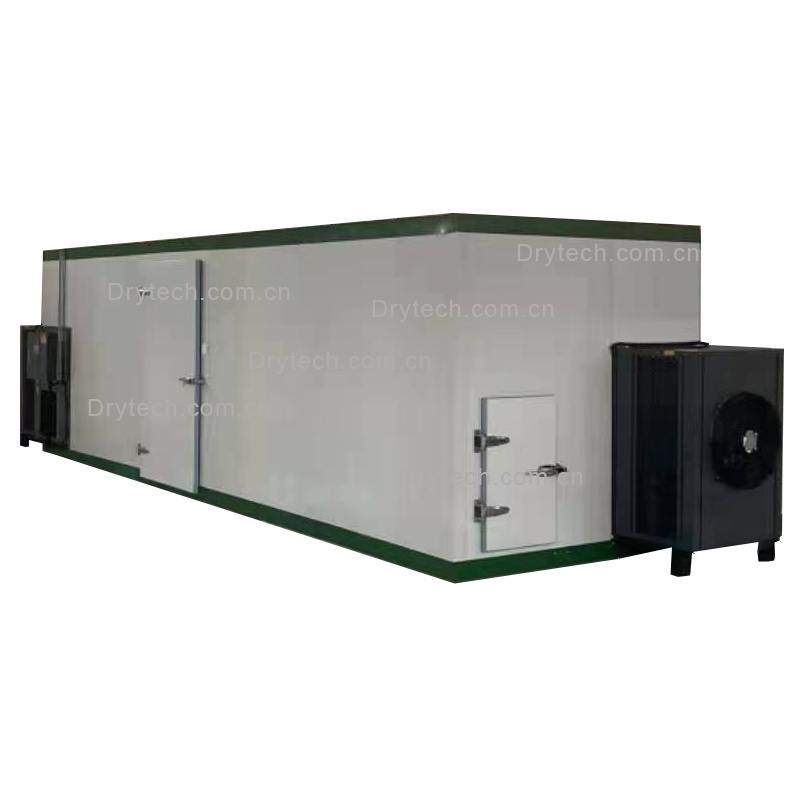

DRYTECH Banana Dryer Machine Introduction
DRYTECH banana dryer machine takes advantage of the reversed Carnot principle, With free air to absorb the heat from around and sending the heat to the materials which will be dried. New designed dryer a dopt cycle drying with second waste heat recovery technology. This dryer will be controlled by touch screen controller, and the temperature can be adjusted. It has low electric consumption.
Main Parts of One Set Banana Dryer Machine
1, Heat pump drying host
2, Drying chamber
3, Fan frame with fan
4, Trolley with tray
The drying chamber is used 100mm polyurethane insulation board, supporting 304 stainless steel trolleys and trays.
(You can order full one set drying machine from us, also you can order only heat pump drying host and insulation board from us, the trolleys and trays you can order from other suppliers)
Specifications for DT300HD Dryer + Drying Chamber
| Dryer model | DT300HD | Quantity of dryer | 2 unit |
| Heating capacity | 21kw | Cooling capacity | 15.6kw |
| Dehumidify | 24L/H | Drying temperature | 10-75℃ |
| Working condition | 0-43℃ | Power consumption | 8.6KWH |
| Power input | 11.0kw | Blowing type | Horizontal Blowing 360℃ |
| Drying chamber size | L7050*W2190*H2200mm | Material of chamber |
2 sides of coated cover
or 1 side SS304# cover |
| PU-thickness of chamber | 100mm | For drying fresh fruits | 800-1000kg per batch |
| Quantity of trolley | 16 sets | Trolley size | L870*W610*H1750mm |
| Quantity of tray | 256 pcs | Tray size | L800*W600*H30mm |
Main Features
1, Energy saving
Adopt heat pump technology, absorb heat from air and recovery waste heat at the same time
Adopt close dehumidify + circulating drying type, saving operating cost;
2, Exact control temperature and humidity
The drying temperature can be easily controlled by PLC +Touch Screen control system.
3, Uniform drying
By using the forced ventilation function, there are partition sheet and fan motors inside the drying chamber to make sure hot air cycle, so the raw materials can be dried evenly
4, The temperature: 10-75°C, Max 75°C, similar nature drying.
5, The baking plate dimensions and materials can customize as customer request.
6, Good drying quality.
During drying, the material does not craze, does not distortions, non-discoloring, never degenerate, non-oxidize, drying completely, with good rehydration, keep nutrient content;
7, Safe and reliable operation
Automatic intelligent control, 24-hour continuous drying; Without waste gas and waste heat pollution,low noise
