Quick Details
-
Voltage:
-
380V
-
Weight:
-
1250 kg
-
Color:
-
Customer Request
-
Quality:
-
High Level
-
Bearing:
-
Imported bearing
-
Hammer:
-
Tungsten carbide hammer
Quick Details
-
Max. Capacity:
-
30 ton/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YS
-
Voltage:
-
380V
-
Weight:
-
1250 kg
-
Color:
-
Customer Request
-
Quality:
-
High Level
-
Bearing:
-
Imported bearing
-
Hammer:
-
Tungsten carbide hammer
Product Paramenters
|
Model SFSP series
|
Power（KW）
|
Capacity（t/h）
|
Rotor diameter（mm）
|
Rotate speed（RPM）
|
|
50-1
|
7.5/15
|
0.5—2
|
500
|
3540
|
|
50-2
|
11/18.5
|
1.5-2.5
|
500
|
3540
|
|
56*36
|
18.5/22/30
|
1.5-5
|
560
|
2980
|
|
56*40
|
30/37
|
4-7
|
560
|
2980
|
|
56*60
|
37/45/55
|
6-9
|
560
|
2980
|
|
60*30
|
18.5/22
|
2-5.5
|
600
|
2980
|
|
60*45
|
45/55
|
5-9
|
600
|
2980
|
|
60*60
|
75/90
|
6-10
|
600
|
2980
|
|
112*40
|
90/110
|
12-22
|
1120
|
1440
|
Products Description

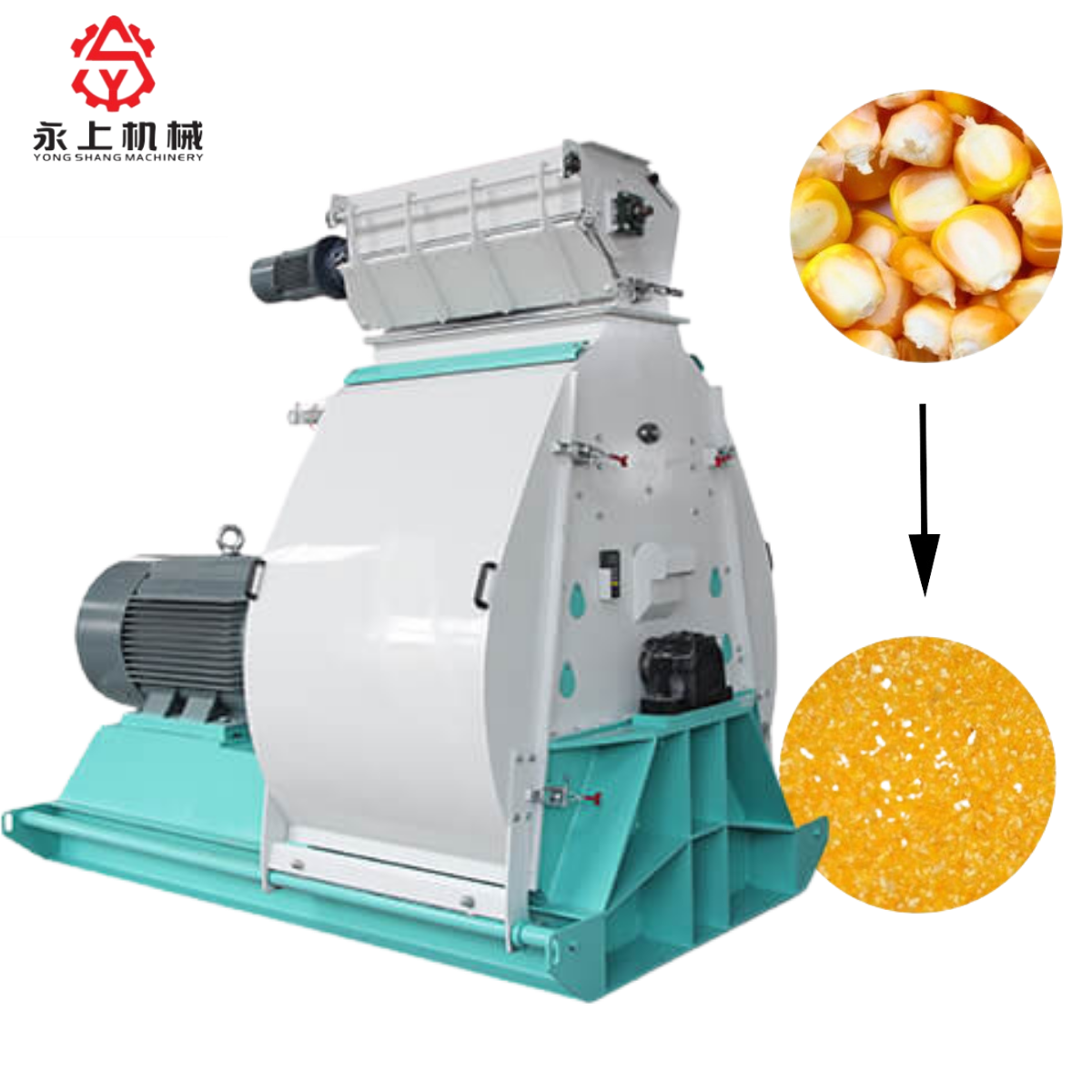

SFSP Series Hammer Mill
■ the base is welded with thickened steel plate and designed to reduce the rotation center
of gravity of the main shaft to effectively improve the vibration phenomenon;
■ the rotor is verified by dynamic balance and can work in forward and reverse directions; Effectively improve the utilization rate of hammer and screen;
■ the crushing cavity increases the thickness of the wallboard and adopts more wear-resistant materials at the easily worn parts.
Effectively prolong the service life of the equipment;
■ replace the bearing with a larger load model. Effectively improve the bearing temperature rise. Effectively prolong the service life of the bearing;
■ quick opening full opening mobile access door;
■ quick change screen structure;
■ intelligent design to improve crushing efficiency and output
The best frequency and hammer arrangement ensure the maximum contact with materials, so as to achieve the most appropriate and
effective crushing effect;
■ low vibration, low loss and less maintenance; The low vibration design reduces the friction and collision between components and reduces the replacement and maintenance of parts.
■ the crushing cavity increases the thickness of the wallboard and adopts more wear-resistant materials at the easily worn parts.
Effectively prolong the service life of the equipment;
■ replace the bearing with a larger load model. Effectively improve the bearing temperature rise. Effectively prolong the service life of the bearing;
■ quick opening full opening mobile access door;
■ quick change screen structure;
■ intelligent design to improve crushing efficiency and output
The best frequency and hammer arrangement ensure the maximum contact with materials, so as to achieve the most appropriate and
effective crushing effect;
■ low vibration, low loss and less maintenance; The low vibration design reduces the friction and collision between components and reduces the replacement and maintenance of parts.
