- Product Details
- {{item.text}}
Quick Details
-
Cutting Force:
-
32t - 38t
-
Max. Cutting Capacity:
-
30mm Q235 Circle Steel
-
Available Machine Time:
-
1s
-
Power:
-
Rechargeable battery self contained/Vehicle Electricity
-
Dimension:
-
903*281*183mm
-
Weight:
-
21.8kg
Quick Details
-
Brand Name:
-
STARYE
-
Type:
-
Hydraulic Cutting Tools
-
Model Number:
-
BC-320/120-A
-
Cutting Force:
-
32t - 38t
-
Max. Cutting Capacity:
-
30mm Q235 Circle Steel
-
Available Machine Time:
-
1s
-
Power:
-
Rechargeable battery self contained/Vehicle Electricity
-
Dimension:
-
903*281*183mm
-
Weight:
-
21.8kg
Product Description

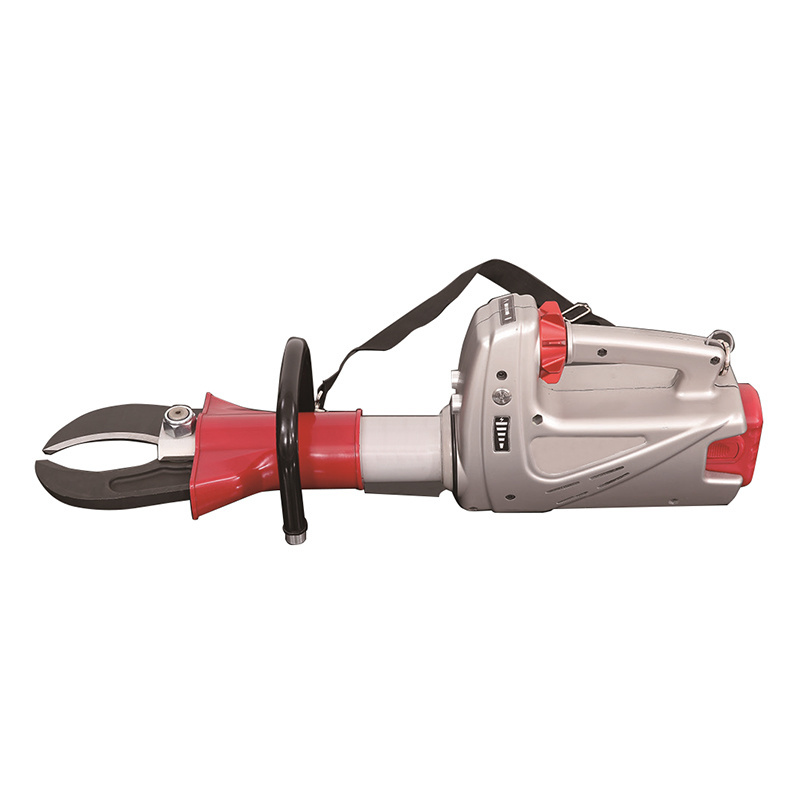

Vehicle Accident Battery Powered Hydraulic Pipe Cutter
The battery rescue cutter is designed for emergency accident rescue site where big rescue trucks or electricity is not allowed to go inside. With working pressure of 720bar, this cutting tool can create great cutting force of 182tons to damage metal any type of structures within a short period. LED light in front of handle can help rescue in darkness go safer and faster.
Application
1. It is suitable for any kind of accidents and emergency rescue: traffic accident, earthquake and other
2. disasters etc. and suitable for rescue operations maneuverable;
3. Unclenching the door and metal structure into deformation;
4. Cut metal structure, vehicle parts, pipeline and metal plates.
Features
1. Self-contained battery power, no need for extra hose, power unit;
2. Low noise;
3. One-button LED light;
4. Tool’s operation and light switch is separately for independent work;
5. Battery power is shown by LED light;
6. Star type handle for more convenient operation;
7. Handle with LED lights for dark work.
Product Specifications
|
Model
|
BC-230/33-A
|
|
Rated Working Pressure
|
720bar
|
|
Max. Opening Distance of Blades
|
≧230mm
|
|
Max. Cutting Force
|
≧1793KN
|
|
Max. Cutting Capacity
|
ф33mm(Q235 circle steel)
|
|
Rated Hauling Force
|
43KN
|
|
Weight
|
18.4kg(battery included)
|
|
Dimension
|
838x215x280mm
|
Product Actual Shooting
Product Details
01
Blade
The blade is made of high-strength steel material, which is not damaged or deformed after repeated use.
It can make the tool work in a dark environment, good light transmission
Voltage: 24V
Capacity: 5Ah
Duration of continuous operation on full charge: 40 minutes
Charging time: 2H
Customized internal fixed module, external aluminum alloy packing box, protect the tool while increasing the product grade
