Quick Details
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Goosam UV2030 Printer
-
Voltage:
-
AC220/110±10
-
Dimensions(L*W*H):
-
600mm*500mm*400mm
-
Weight:
-
23 KG
-
Marketing Type:
-
New Product
-
Warranty of core components:
-
2 years and lifetime technology support
-
Product name:
-
3d uv printer
-
Key words:
-
Acrylic Printing Machine 3D Embossed Uv Printer
-
Power supply:
-
AC220/110±10, 50HZ~60HZ, P 120W
-
Print head:
-
1 Epn Printhead
-
Color:
-
CMYK+WHITE
-
Accurarcy:
-
2880dpi
-
Operating system:
-
RIP
-
Input Format:
-
TIFF(RGB&CMYK), BMP, PDF, EPS, JPEG, AI, PSD
-
Printing material:
-
Any Plane hard/soft material
-
Printing Speed:
-
0.5-2.5㎡/h
Quick Details
-
Print Dimension:
-
200mm*200mm, A4, A5, 200mm*300mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Goosam UV2030 Printer
-
Voltage:
-
AC220/110±10
-
Dimensions(L*W*H):
-
600mm*500mm*400mm
-
Weight:
-
23 KG
-
Marketing Type:
-
New Product
-
Warranty of core components:
-
2 years and lifetime technology support
-
Product name:
-
3d uv printer
-
Key words:
-
Acrylic Printing Machine 3D Embossed Uv Printer
-
Power supply:
-
AC220/110±10, 50HZ~60HZ, P 120W
-
Print head:
-
1 Epn Printhead
-
Color:
-
CMYK+WHITE
-
Accurarcy:
-
2880dpi
-
Operating system:
-
RIP
-
Input Format:
-
TIFF(RGB&CMYK), BMP, PDF, EPS, JPEG, AI, PSD
-
Printing material:
-
Any Plane hard/soft material
-
Printing Speed:
-
0.5-2.5㎡/h
Product Information

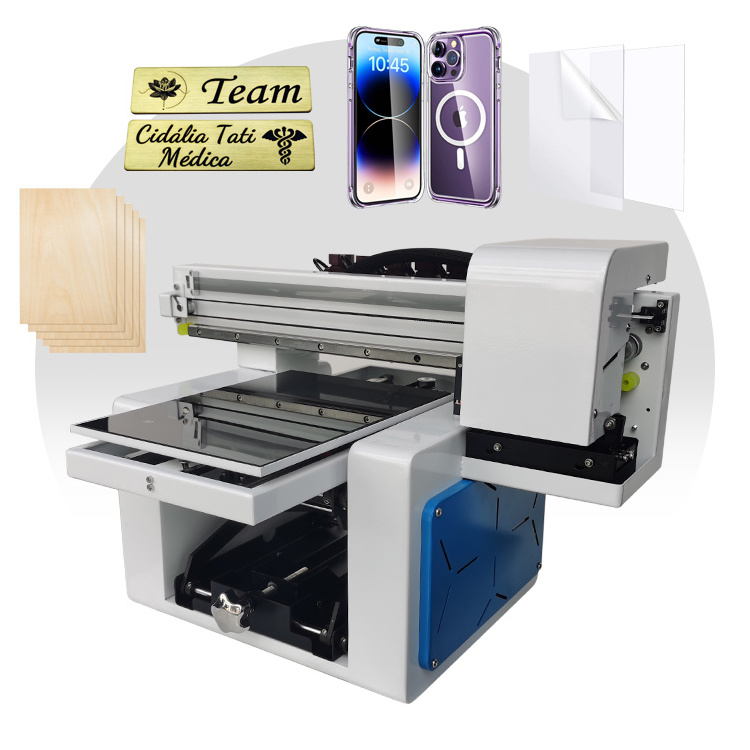

China Manufacturer Wholesale High Glossy Uv Flatbed Marble Sheet Acrylic Printing Machine 3D Embossed Uv Printer
|
Model Number
|
Goosam 2030 Uv Flatbed Printer
|
|
Prrinthead
|
1 Epson Printhead
|
|
Color
|
CMYK+WHITE
|
|
Printing Speed
|
0.5-2.5㎡/h
|
|
Weight
|
23KG
|
|
Appearance Dimension
|
600mm*500mm*400mm
|
|
Application
|
Phone case, Glass, Ceramic, Metal, Wood, Acrylic, Clothes, Label, PVC, PP, EVA, Plastic, Toy, Bottle, Golf, Ball, USB, etc.
|
Features:
1.
High speed printing with high quality and wide color gamut can be achieved in five colors at the same time. High speed printing with CMYK ink can be achieved in four colors. White ink can be added to facilitate printing materials of any color, such as black mobile phone case, black wood, black furniture and other materials of any plane;
2.
It can output any image and text with high precision, high quality and high speed;
3.
Professional technology to maintain a constant voltage for ink, ink fluency doubled; Continuous ink does not drip ink nor cross color;
4.
Adjustable white ink and color ink are output at the same time, the printing efficiency is doubled, and the printing material can be increased by countless;
5.
The maximum width can realize perfect printing of 20 * 30cm. The computer software controls printing at any position.
6.
Be competent for high-intensity all-weather 7 * 24 continuous production capacity.
7. We also provide Uv Ink with high quality and low price!
2030 Technical Parameters
|
Model Number
|
Goosam 2030 Uv Flatbed Printer
|
|
|
|
|||
|
Print Size
|
200mm*300mm
|
|
|
|
|||
|
Printhead
|
1 Epson Printhead
|
|
|
|
|||
|
Ink Drop Size
|
Min:2.5pl, Max:12pl
|
|
|
|
|||
|
Color
|
CMYK+WHITE
|
|
|
|
|||
|
Print Height
|
120mm(custom height available)
|
|
|
|
|||
|
Print Weight
|
Nondestructive precision weight 30KG
|
|
|
|
|||
|
Ink System
|
100ML × 6-color uninterruptible intelligent circulating continuous supply system
|
|
|
|
|||
|
Lifting Function
|
Platform lifting
|
|
|
|
|||
|
Printing Accuracy
|
2880dpi*1440dpi*720dpi*360dpi
|
|
|
|
|||
|
Printing Speed
|
Sketch Mode
|
720×720dpi/4Pass 2.5㎡/H
|
|
|
|||
|
|
Production Mode
|
1440*720dpi/8Pass 1.8㎡/H
|
|
|
|||
|
|
Fine Mode
|
1440*1440dpi/16Pass 1㎡/H
|
|
|
|||
|
|
2880*1440dpi/32Pass 0.5㎡/H
|
|
|
|
|||
|
Receive Files
|
TIFF(RGB&CMYK),BMP,PDF,EPS,JPEG,AI,PSD
|
|
|
|
|||
|
Power Requirements
|
AC220/110±10
|
|
|
|
|||
|
|
50HZ~60HZ,
|
|
|
|
|||
|
|
120W
|
|
|
|
|||
|
Interface Mode
|
High speed USB transmission interface
|
|
|
|
|||
|
Operating
Platform
|
Windows98/Me /2000 /XP/Win7/win10
|
|
|
|
|||
|
Software
Output
|
RIP
|
|
|
|
|||
|
Work
Environment
|
Optimum temperature: 15 ℃ - 35 ℃(59℉-95℉), relative humidity 20% - 80%
|
|
|
|
|||
|
Equipment
Weight
|
23KG
|
|
|
|
|||
|
Equipment
size
|
600*500*400 mm
|
|
|
|
|||
