Quick Details
-
Productivity:
-
170m3/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JH/JIUHE
-
Weight:
-
34000 kg
-
Dimension(L*W*H):
-
12150*2500*4000
-
Max. diameter of aggregate:
-
40MM
-
Max vertical placing height:
-
52M
-
Max. placing radius:
-
47.5M
-
Boom section:
-
6
-
truck:
-
sinotruk/faw
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
52m
-
Max. horizontal conveying distance:
-
47.5m
-
Productivity:
-
170m3/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JH/JIUHE
-
Weight:
-
34000 kg
-
Dimension(L*W*H):
-
12150*2500*4000
-
Max. diameter of aggregate:
-
40MM
-
Max vertical placing height:
-
52M
-
Max. placing radius:
-
47.5M
-
Boom section:
-
6
-
truck:
-
sinotruk/faw

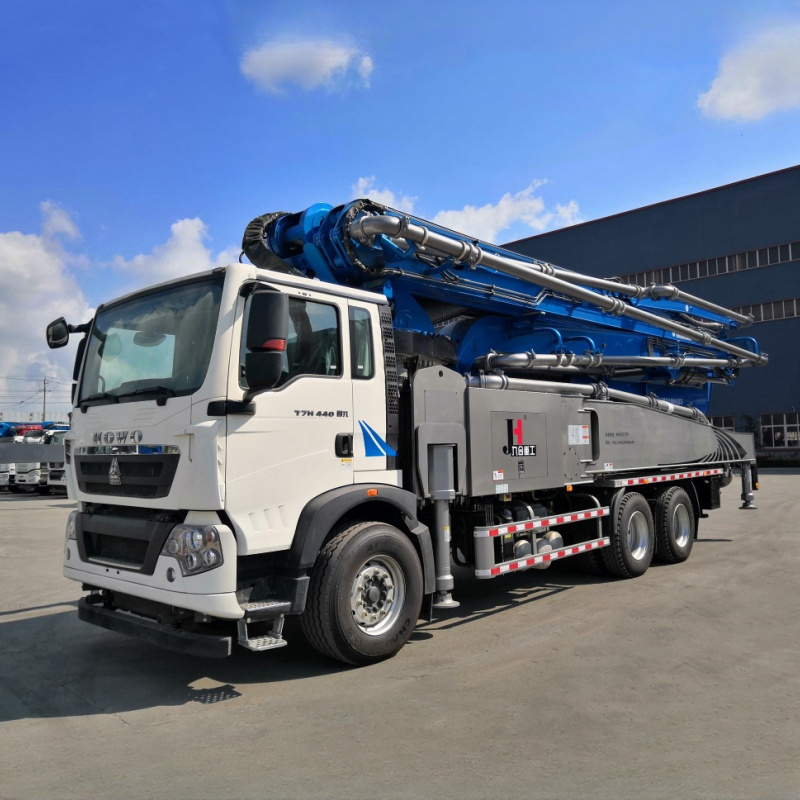

China new concrete pump factory JIUHE 52m concrete pumping machine
JH concrete pump trucks are competitive products designed by JIUHE MACHINERY.it is high reliability, high efficiency, high security, high durability at an organic whole, which with reasonable matching on Chassis, power, electrical, hydraulic, pumpingsystem. Jib structures are flexible, the trucks move easily, safe and stable.
JIUHE Produce 25m to 63m concrete pump truck, full range pumping capacity and boom length to meet different meet in concrete pumping projects.CE, ISO, CCC, BV, all authorized certificates, excellent quality with favorable price, welcome contact us for detailed infomration.
|
I. Chassis |
||
|
1 |
Chassis Brand |
Sinotruk |
|
2 |
Power |
440HP |
|
3 |
Driving type |
6*4 |
|
II. Boom system |
||
|
1 |
Max. Vertical height(M) |
51.3 |
|
2 |
Max. Horizontal Concrete Placing radius (M) |
47.5 |
|
3 |
Concrete placing depth(M) |
36.8 |
|
4 |
Boom Control mode |
Electric proportional control |
|
5 |
Boom No. |
6 |
|
6 |
Opening mode of landing leg |
X-R |
|
7 |
Rotating angle of each boom |
90°/180°/180°/235°/220°/110° |
|
8 |
Boom folding way |
6RZ |
|
9 |
Length of end hose (MM) |
3000 |
|
10 |
Concrete delivery pipe dia. |
125 |
|
III. Electric Control System |
||
|
1 |
Working voltage(V): |
24 |
|
IV. Hydraulic transmission system |
||
|
1 |
Type of hydraulic system |
Open type |
|
2 |
System working pressure (Mpa) |
32 |
|
3 |
Cooling mode of hydraulic oil |
Forced-air Cooling |
|
VI. Dimension and weight of whole truck |
||
|
1 |
Total length (MM) |
12500 |
|
2 |
Total width (MM) |
2550 |
|
3 |
Total height (MM) |
4000 |
|
4 |
Total weight (T) |
35 |
|
VII. Pumping system |
||
|
1 |
Form of concrete distribution valve |
S Valve |
|
2 |
Concrete cylinder |
260 |
|
3 |
Hopper capacity (M3 ) |
0.6 |
|
4 |
Slump of pumped concrete |
160-220 |
|
5 |
Dimension of allowable maximum aggregate (MM) |
40 |
|
6 |
Lubricating method |
Centralized lubrication |
|
7 |
Concrete theoretic delivery volume |
170m3/h |
|
8 |
Water pump pressure |
1-8Mpa |
JIUHE concrete pump truck is used for pumping and placing wet concrete in acutal concrete pumping work, they are widely used for building construction.
CE For JIUHE concrete pump truck
