Quick Details
-
Model Number:
-
T3030
-
Stroke:
-
64mm
-
Push Rod Thread:
-
5/8"-18UNF2A
-
Air Inlet Thread:
-
3/8"-18NPTF
-
Mounting Bolt Thread:
-
5/8-11UNC2A
-
Operating temperature:
-
-40 °C~+80 °C
-
Life-time Parking Chamber:
-
200000 times
-
Life-time Service Chamber:
-
1000000 times
-
Weight:
-
9.5kg
Quick Details
-
Material:
-
Steel & Aluminum Alloy, Steel, Aluminum
-
Place of Origin:
-
China
-
Size:
-
Standard Size
-
Model Number:
-
T3030
-
Stroke:
-
64mm
-
Push Rod Thread:
-
5/8"-18UNF2A
-
Air Inlet Thread:
-
3/8"-18NPTF
-
Mounting Bolt Thread:
-
5/8-11UNC2A
-
Operating temperature:
-
-40 °C~+80 °C
-
Life-time Parking Chamber:
-
200000 times
-
Life-time Service Chamber:
-
1000000 times
-
Weight:
-
9.5kg

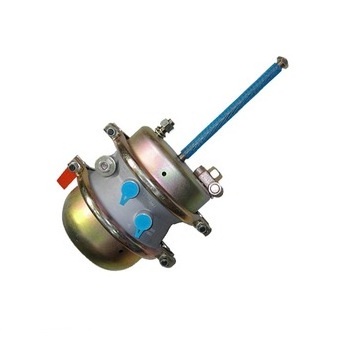

t3030 Double Diaphragm Spring Brake Chamber
1>Product Introduction of the t3030 Double Diaphragm Spring Brake Chamber
T3030 Double Air Brake Chamber for Heavy Truck produced by Lahoo Auto. Air brake chambers are round metal containers, located at each wheel, where compressed air is converted into mechanical force to apply the brakes and stop the vehicle. There are two kinds of air brake chambers — service and spring brake chambers.
2> Product Specification of the T3030 Double Air Brake Chamber
|
Item No. |
Stroke |
R1 |
R2 |
L1 |
L2 |
L4 |
Push Rod Thread |
Air Inlet Thread |
Mounting Bolt Thread |
Weight |
|
mm |
mm |
mm |
kg |
|||||||
|
LHC-T3030 |
64 |
125 |
105 |
238±5 |
285±5 |
255±5 |
5/8"-18UNF2A |
3/8"-18NPTF |
5/8-11UNC2A |
9.5 |
3> Product Feature And Details of the T3030 Double Air Brake Chamber
Name: T3030 Double Air Brake Chambers
Name: air brake chambers
Material: Steel, Aluminum
Max operating pressure: 800Kpa ~ 1Mpa
Operating temperature: -40 °C~+80 °C
Stroke: 0-76MM
Life-time: Service Chamber: ≥1000000 times
Life-time: Parking Chamber: ≥200000 times
Aplication: Universal
Leading Standard: SAE J1469-95 by Society of Automobile Engineers USA
