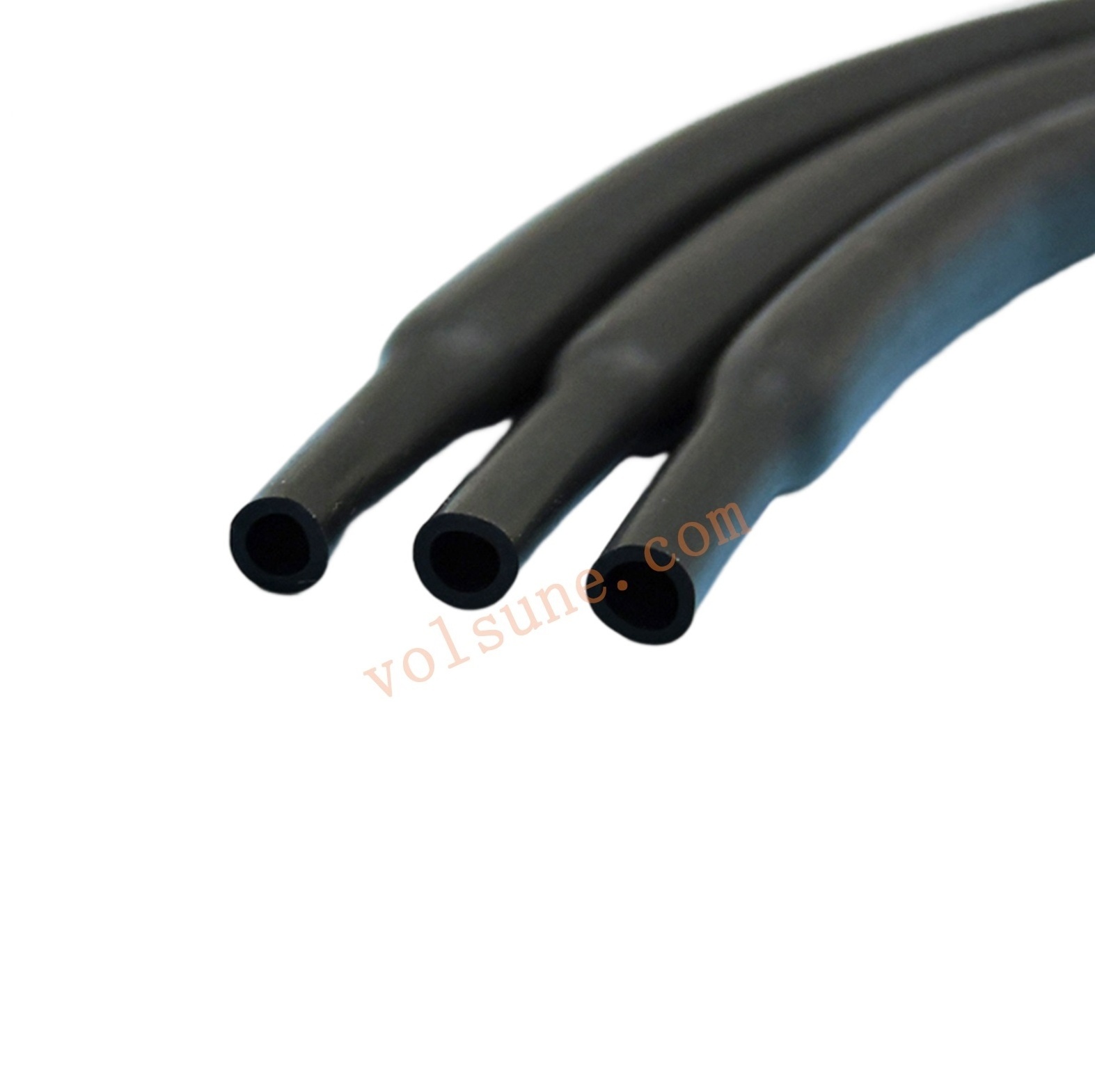

High Temperature Oil Resistant Crosslinked Viton Fluororubber Black Heat Shrink Tubing

High Temperature Oil Resistant Crosslinked Viton Fluororubber Black Heat Shrink Tubing

FOB Reference Price: Get Latest Price

≥100 Meters

US $2.3

≥1000 Meters

US $1.5

≥10000 Meters

US $1.05

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: Viton

Tensile Strength:: ≥8.2MPa

Elongation at break:: ≥250%

Elongation at break after aging:: ≥200%

Flammability:: Self-extinguishing within 15 seconds

Longitudinal shrinkage:: -10%~+10%

Breakdown strength:: ≥7.9kV/mm

Volume resistivity:: ≥10*9Ω.cm

Shrink temperature:: 90℃~170℃

Continuous operating temperature:: -65℃~200℃

Shrink ratio:: 2:1

Environmental standard:: RoHS

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: VOLSUN

Model Number:: TZRS-VT200(2X)

Material:: Viton

Tensile Strength:: ≥8.2MPa

Elongation at break:: ≥250%

Elongation at break after aging:: ≥200%

Flammability:: Self-extinguishing within 15 seconds

Longitudinal shrinkage:: -10%~+10%

Breakdown strength:: ≥7.9kV/mm

Volume resistivity:: ≥10*9Ω.cm

Shrink temperature:: 90℃~170℃

Continuous operating temperature:: -65℃~200℃

Shrink ratio:: 2:1

Environmental standard:: RoHS

Product Description

Made of fluororubber and polymer elastomer by radiation modification. It can be used at high temperature for a long time, and it is resistant to diesel oil, aviation fuel and high temperature fluid. It can be used for the protection of military vehicles, high-speed trains, ship equipment or commercial cable terminals, separation joints, etc .

Features:

* Oil and solvent resistant

* High flame retardant, soft and elastic

* Shrink temperature：100℃～175℃

* Continuous operating temperature：-40℃～200℃

* Shrink ratio：2 :1

* Environmental standard：RoHS

* Standard color：Black

Technical Performance

Items	Typical Value	Test Method
Tensile strength	≥8.5MPa	ASTM D 638
Elongation at break	≥250%	ASTM D 638
Elongation at break after aging	≥200%	250℃×168h
Flammability	VW-1	UL224
Longitudinal shrinkage	-10%～+10%	ASTM D 2671
Heat shock	No cracks, no dripping	300℃×4h
Volume resistivity	≥10 ⁹ Ω.cm	IEC60093
Breakdown strength	≥15kV/mm	IEC60243

Dimensions

Size(mm)	Supplied I.D.(mm)	After fully recovered (mm)		After Fully Recovered (mm)	Standard package
Size(mm)	Supplied I.D.(mm)			Inner Diameter	Wall Thickness	(M / Roll)
Φ 2.4	≥2.4	≤1.2	0.51±0.08	200
Φ 3.2	≥3.2	≤1.6	0.76±0.13	100
Φ 4.8	≥4.8	≤2.4	0.89±0.18	100
Φ 6.4	≥6.4	≤3.2	0.89±0.18	50
Φ 7.9	≥7.9	≤4.0	0.89±0.18	50
Φ 9.5	≥9.5	≤4.8	0.89±0.18	50
Φ 12.7	≥12.7	≤6.4	0.89±0.18	50
Φ 15.9	≥15.9	≤8.0	1.00±0.21	30
Φ 19.1	≥19.1	≤9.5	1.07±0.21	30
Φ 25.4	≥25.4	≤12.7	1.25±0.30	30
Φ 38.1	≥38.1	≤19.1	1.40±0.38	30
Φ 50.8	≥50.8	≤25.4	1.65±0.43	25

Special sizes or packages are available to customize.

Company Show

Suzhou Volsun Electronics Technology Co.,Ltd. was founded in 2006. We keep focusing on the R&D, production and sales in insulation, sealing & protection solutions for over 18 years.

Quality is our culture. Volsun has a modern quality management system, which has passed a series of quality system certification such as IATF16949, ISO9001 etc. And we have gained some advanced titles such as Jiangsu famous scientific and technical corporation, China new high-tech enterprise etc. have independent intellectual property rights, 88 patents and 97 product certifications.

Up to now, Volsun cooperated with customers from 88 countries, we offer suitable sealing, waterproof solutions for some well-know enterprises in communication,Automobile, Power industry etc.

Packing & Delivery

Trade terms	FOB, EXW, CIF, DDU, DDP, CFR
Payment terms	T/T, L/C, Negotiable
MOQ	100 M
Supply capability	1,000,000 mts per month
Lead time	usually 3-5 working days
Shipment	Express, Air, Sea
Port	Shanghai, Ningbo, Shenzhen
Sample availability	Yes
Sample time	usually 1-3 days
Packaging	Normal: Plastic bag & Carton & Pallet Special: Customized packing
