Quick Details
-
Model Number:
-
T1206N-8
-
Dimension:
-
LxWxH:12*12*6.9in
-
Output Power:
-
1300Watts(AES)
-
Name:
-
12 Inch Subwoofer
-
Voice coil diameter:
-
100mm/4.0inch
-
Nominal Diameter:
-
320mm/12inch
-
Nominal Impedance:
-
8 Ω
-
Frequency Range:
-
30-1000 Hz
-
Sensitivity:
-
91 dB
-
EBP:
-
73Hz
-
Magnet material:
-
Neodymium
-
Basket Material:
-
Aluminum
-
Use:
-
Stage/Outdoor/Party
Quick Details
-
Warranty:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
T1206N-8
-
Dimension:
-
LxWxH:12*12*6.9in
-
Output Power:
-
1300Watts(AES)
-
Name:
-
12 Inch Subwoofer
-
Voice coil diameter:
-
100mm/4.0inch
-
Nominal Diameter:
-
320mm/12inch
-
Nominal Impedance:
-
8 Ω
-
Frequency Range:
-
30-1000 Hz
-
Sensitivity:
-
91 dB
-
EBP:
-
73Hz
-
Magnet material:
-
Neodymium
-
Basket Material:
-
Aluminum
-
Use:
-
Stage/Outdoor/Party
Subwoofer 12 inch
Neodymium 2600W Professional Audio Bass Line Array Active Speaker Unit
Products Description
Applicable use
Use for pro DJ speakers, pro PA speakers, pro karaoke speakers, live sound speakers, fixed installation speakers, studio monitors and home audio speakers.
SEE MORE.
Product Paramenters
|
SPECIFICATIONS
|
|
|
|
|
TYPE
|
ND SUBWOOFER
|
|
|
|
Nominal Diameter
|
320/12
|
mm/in
|
|
|
Rated impedance
|
8
|
ohm
|
|
|
RMS Power Handing
|
650
|
W
|
|
|
AES Power Handing
|
1300
|
W
|
|
|
Max Power Handing
|
2600
|
W
|
|
|
Sensitivity
|
91
|
dB
|
|
|
Frequency Range
|
30-1000
|
Hz
|
|
|
Voice Coil Diameter
|
100/4.0
|
mm/in
|
|
|
Winding Material
|
Copper
|
|
|
|
Former Material
|
Glass Fibre
|
|
|
|
Winding Depth
|
42/1.65
|
mm/in
|
|
|
Megnetic Gap Depth
|
16/0.63
|
mm/in
|
|
|
Megnetic Material
|
Neodymium
Inside Slug
|
|
|
|
THIELE & SMALL PARAMETERS
|
|
|
|
|
Resonance frequency
|
Fs
|
30
|
Hz
|
|
Dc resistance
|
Re
|
5
|
ohm
|
|
Mechanical factor
|
Qms
|
4.04
|
|
|
Electrical factor
|
Qes
|
0.27
|
|
|
Total factor
|
Qts
|
0.25
|
|
|
BL factor
|
Bl
|
24
|
T.M
|
|
Effective Moving mass
|
Mms
|
174
|
g
|
|
Effective Cas air load
|
Vas
|
66
|
liters
|
|
Effective piston area
|
Sd
|
547
|
cm2
|
|
Inductance
|
L1kHz
|
2.8
|
mh
|
|
Max linear excursion
|
Xmax
|
±17
|
mm
|
|
|
EBP
|
111
|
Hz
|
|
MOUNTING AND SHIPPING
|
|
|
|
|
Overall Diameter
|
315/12.4
|
mm/in
|
|
|
Bolt Circle Diameter
|
300/11.8
|
mm/in
|
|
|
Mount Baffle Cut-out
|
283/11.1
|
mm/in
|
|
|
Depth
|
176/6.9
|
mm/in
|
|
|
Flange And Gasket Thickness
|
15/0.59
|
mm/in
|
|
|
Net Weight
|
8.3
|
kg
|
|
|
Shipping Weight
|
9.1
|
kg
|
|
|
Shipping Box
|
335x335x200 mm
|
13.6x13.6x7.9 in
|
|

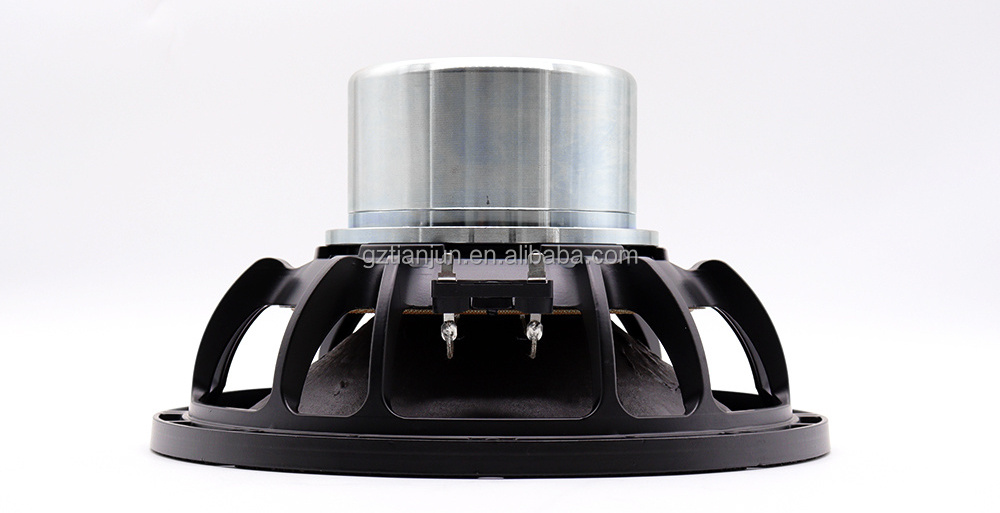

Details Images
