- Product Details
- {{item.text}}
Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
1-20mm
-
Control Software:
-
software
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FORSUN
-
Weight (KG):
-
2500 KG
-
Product name:
-

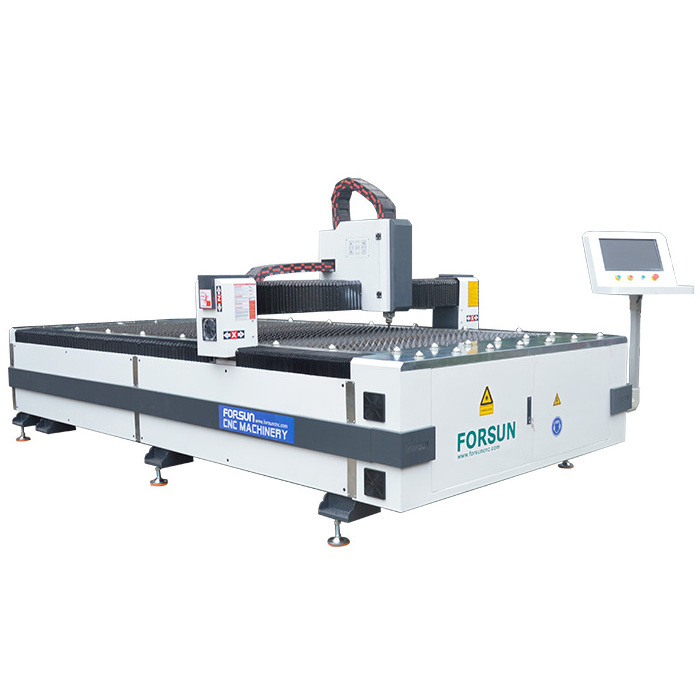

CNC Fiber Laser Metal Cutting Machine for Carbon Steel
-
Effective cutting size:
-
3000*1500mm*200mm
-
Laser Cutting Head:
-
Raytools Fiber Laser Cutting Head
-
Motor and Driver:
-
Delta Servo Motor and Driver
-
Control System:
-
Cypcut Control System
-
Fiber Laser Source:
-
Raycus / Maxphotonics Fiber Laser
-
Working table:
-
Sawteeth working table
-
Application Material:
-
Carbon Steel Stainless Steel Aluminum
-
Reducer:
-
Japan Shimpo Reducer
-
Guide rail:
-
Taiwan PMI Square Guide Rails
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
1-100mm/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
1-20mm
-
Control Software:
-
software
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FORSUN
-
Weight (KG):
-
2500 KG
-
Product name:
-
CNC Fiber Laser Metal Cutting Machine for Carbon Steel
-
Effective cutting size:
-
3000*1500mm*200mm
-
Laser Cutting Head:
-
Raytools Fiber Laser Cutting Head
-
Motor and Driver:
-
Delta Servo Motor and Driver
-
Control System:
-
Cypcut Control System
-
Fiber Laser Source:
-
Raycus / Maxphotonics Fiber Laser
-
Working table:
-
Sawteeth working table
-
Application Material:
-
Carbon Steel Stainless Steel Aluminum
-
Reducer:
-
Japan Shimpo Reducer
-
Guide rail:
-
Taiwan PMI Square Guide Rails
China cheap cnc water jet sheet metal fiber laser cutting machine for carbon steel MS SS aluminum
What's the feature of our China cheap cnc water jet sheet metal fiber laser cutting machine for carbon steel MS SS aluminum?
Ø Effective cutting size : 3000*1500mm*200mm
Ø Raytools Fiber Laser Cutting Head
ØCypcut control system
Ø Delta servo motor
Ø Raycus / Maxphotonics Fiber Laser
Ø Sawteeth working table
Ø Taiwan TBI Ball Screw,Germany Helical Rack and Pinion
Optional parts :
Ø4th Rotary Axis for Metal Tubes
ØEnclosed cover,protect from laser.
ØJapan Shimpo Reducer
What’s the Technical data of Forsun 1325 Fiber Laser Cutting Machine With 4000w For Metal Sheet ?
|
Technical Data |
||
|
NO |
Description |
Parameter |
|
1 |
Laser Source |
Raycus / Maxphotonics |
|
2 |
Positioning Accuracy |
±0.02mm/300mm |
|
3 |
Laser Power |
500w, 750w, 1000w,1500W,2000W,3000W etc |
|
4 |
Maxinum Speed |
100M/min |
|
5 |
Running Environment Temperature |
0 - 45 Centigrade |
|
6 |
Relative Humidity |
30% - 75% |
|
7 |
Voltage |
3PH, AC 380V/50HZ |
What's the advantage of Forsun Fiber Laser Cutting Machine?
| 1.Controller |
Cypcut control system -Which can realize intelligent layout of graphics, automatically choosing and matching cutting paths, save processing time |
| 2.Laser Source |
Famous Brand Raycus/Maxphotonics -Solid state laser lasts over 50,000hrs; Various power options of 500w, 750w, 1000w,1500W,2000W,3000W etc |
| 3.Auto focusing |
Capacitive Auto-height adjusting Raytools cutting headCutting Head -Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal. |
| 4.Servo system |
Japan YASKAWA Servo driver and motor -With strong power and high precision |
| 5.Reducer |
Japan Shimpo Reducer -The world best reducer brand.Used for replace traditional rack and belt,to make machine more powerful and stable |
| 6.High accuracy |
Precision cutting -Which can reach ±0.02mm/300mm |
What's the Benefits of Forsun CNC Fiber Cutting Machine ?
Applicable Industry:
This machin is widely used in various industries such as advertising decoration,kitchen ware,engineering machinery,steel and iron,automobile,metal plate chassis,air-conditioner manufacturing,metal plate cutting,etc.
Applicable Materials:
Carbon steel: 0-20mm; Stainless steel: 0-10mm.
Professional used to cut thin sheet metal, aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminium zinc plate and other metal.
Customer in our factory from all over the world:
Our Services
What's our service for Forsun CNC Fiber Laser Cutting Machine ?
Guarantee:
1.5 years for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email, WhatsApp, Wechat or Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by
Why choose us?
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
If there is still have any question, we will provide free professinal guide for you until you could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
