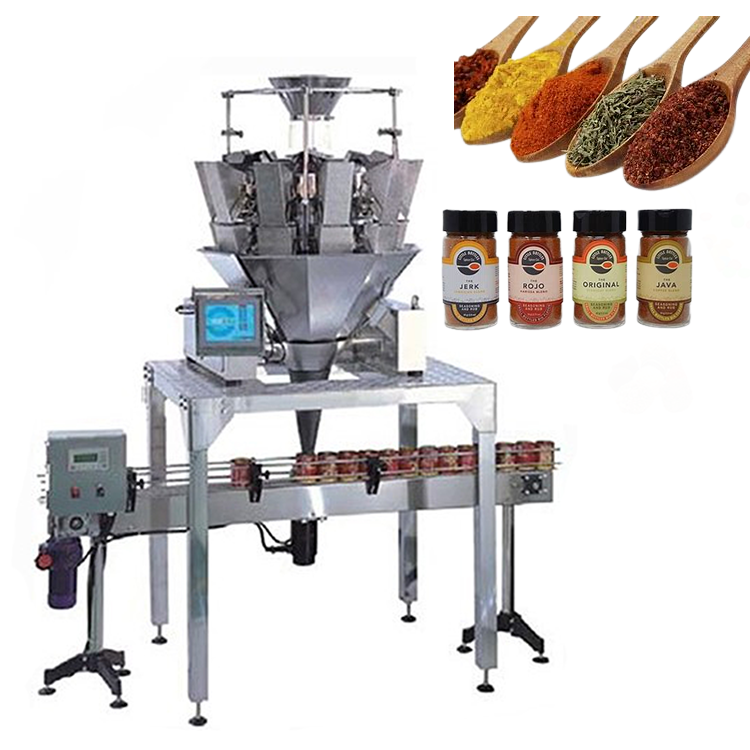

Automatic Bottle Packing Line Spices Granule Powder Weighing Filling Machine

Automatic Bottle Packing Line Spices Granule Powder Weighing Filling Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $8000

≥3 Sets

US $6000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: >=99%

Voltage:: 220/380v

Place of Origin:: Zhejiang, China

Brand Name:: ZON PACK

Dimension(L*W*H):: based on customer size

Weight:: 1200 KG

Warranty of core components:: 18 months

Product name:: Bottle Filling Capping

Function:: Filling Sealing Forming

Bottle type:: PET Plastic Bottle

Keywords:: Fillng Machine

Processing Types:: Automatic Bottle Filling Sealing Machine

Feature:: Automachine

Advantage:: Long Life Service

Control:: PLC+ Touch Screen

Operation:: Easy Opperation

Suitable bottle:: Plastic Glass Round Square Bottle

Quick Details

Machinery Capacity:: 2000BPH, 3000BPH

Packaging Material:: Plastic, Glass, Wood

Filling Material:: Other, nuts, candy

Filling Accuracy:: >=99%

Voltage:: 220/380v

Place of Origin:: Zhejiang, China

Brand Name:: ZON PACK

Dimension(L*W*H):: based on customer size

Weight:: 1200 KG

Warranty of core components:: 18 months

Product name:: Bottle Filling Capping

Function:: Filling Sealing Forming

Bottle type:: PET Plastic Bottle

Keywords:: Fillng Machine

Processing Types:: Automatic Bottle Filling Sealing Machine

Feature:: Automachine

Advantage:: Long Life Service

Control:: PLC+ Touch Screen

Operation:: Easy Opperation

Suitable bottle:: Plastic Glass Round Square Bottle

Products Description

It is suitable for weighing /filling /packing for different products, such as nuts / seeds/candy /coffee Beans , Even can count / weighing packing for the vegetables / Laundry beads / Hardware into Jar / bottle or even case

Technical Specification
Model	ZH-BC10
Packing speed	20-45 jars/Min
System Output	≥8.4 Ton/Day
Packaging Accuracy	±0.1-1.5g
For Target packing , we have weighing and counting Option

Technical Feature
1.This is automatically packing line , just need one operator, save more cost of labor
2. From Feeding / weighing (Or counting ) / filling /capping /Printing to Labeling , This is fully automatic packing line , it more efficiency
3. Use HBM weighing sensor to weighing Or Counting product , It with more high accuracy ,and save more material cost
4. Using fully packing line , the product will packed more beautiful than Manual packing

5.Using fully packing line , product will be more safe and clear in the packaging process
6.Production and cost will be more easy to control than manual packing

Working Process Of Whole Packing Line
Item	Machine Name	Working Content
1	Feeding Table	Collect the empty jar / bottle /Case, make it line up, and waiting for the filling one by one
2	Bucket Conveyor	Feeding product into Multi-head weigher continuously
3	Multi-head Weigher	Use high combination from multi weighing heads to weighing or counting product with high accuracy
4	Working Platform	Support the Multi-head weigher
5	Filling Machine	We have a Straight filling machine and Rotary Filling machine option , Filling product into jar / bottle one by one
6 (Option)	Capping Machine	Lids will line up by conveyor , and it will capping automatically one by one
7 (Option)	Labeling Machine	Labeling for the Jar/ bottle /case due to your demand
8 (Option)	Date Printer	Print the date or QR code / Bar code by printer

Main Parts

1.Bucket Conveyor
1.	VFD Control the speed
2.	Easy to operate
3.	Save more space

2.Multi-head Weigher
1.	we have 10/14 heads Option
2.	We have more than 7 different Language for different counties
3.	It can measure 3-2000g product
4.	High Accuracy :0.1-1g
5.	We have weighing / counting Option

3.1 Rotary Filling Machine

1.It with 10 /12 filling cups option

2.Filling speed more high

3.Filling more stable for product

4.This just suitable for Jar / bottle

3.2 Straight Filling Line

1.More easy to adjust

2.More cheap than Rotary filling machine

3.It will be more easy when it change other size jar /bottle /case

4.Capping Machine
1.	Lid feeding automatically
2.	Sealing have rotating-seal and Glanding-seal option
3.	More easy to adjust for different size of jars
4.	High speed and accuracy of capping
5.	Sealing more closed

5.Labeling Machine
1.	We have circular and Square labeling machine Option
2.	Labeling with high accuracy
3.	Speed more fast than Manual
4.	Labeling more beautiful than manual
5.	Working more stable

6.Feeding Table /Collected Table
1.	It can be used for the empty jar feeding and Finished-product collection
2.	VFD control the speed , working more stable
3.	Diameter is 1200mm , more space to collected jars
4.	Easy to adjust for different jars / bottles

Pre-sale service

1.Over 5,000 professional packing video,give you direct feeling about our machine.
2.Free packing solution from our chief engineer.
3.Welcome to viste our factory and discuss face to face about packing solution and testing machines.

After-sale service

1.Installing and Training services: We will train your engineer to install our machine. Your engineer can come to our factory or we dispatch our engineer to your company.

2.Trouble shooting service: Some times if you can not fix the problem in your country,our engineer will go there if you need us to support.Of course, you need to afford the round trip flight ticket and accommodation fee.

3.Spare Parts replacement: For machine in guarantee period, if spare part are broken, we will send you the new parts free and we will pay the express fee.
