Quick Details
-
Travel (X Axis)(mm):
-
650 mm
-
Travel (Y Axis)(mm):
-
650 mm
-
Repeatability (X/Y/Z) (mm):
-
0.1 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lunyee
-
Voltage:
-
AC100-240V
-
Dimension(L*W*H):
-
650*650mm
-
Weight (KG):
-
9
-
Product name:
-
500mw laser head laser engraving machines on metal engraving
-
Laser power:
-
2500mw/5500mw/7500mw/15000mw
-
Power Supply:
-
AC100-240V
-
Engrave Mode:
-
Photo, Word, Scan, outline, Pixel Laser Engraving
-
Supported Formats:
-
jpg, bmp, svg, G-code
-
Material:
-
Stainless Steel and Acrylic
-
Control Software System:
-
CNC software
-
Engraving Accuracy:
-
0.01mm
-
Engraving Area:
-
650*500mm
-
Function:
-
Cutting Engraving Non-metal Materials
-
Certification:
-
CE,
-
Marketing Type:
-
Hot Product 2021
Quick Details
-
Working Table Size(mm):
-
650*650
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.1 mm
-
Travel (X Axis)(mm):
-
650 mm
-
Travel (Y Axis)(mm):
-
650 mm
-
Repeatability (X/Y/Z) (mm):
-
0.1 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lunyee
-
Voltage:
-
AC100-240V
-
Dimension(L*W*H):
-
650*650mm
-
Weight (KG):
-
9
-
Product name:
-
500mw laser head laser engraving machines on metal engraving
-
Laser power:
-
2500mw/5500mw/7500mw/15000mw
-
Power Supply:
-
AC100-240V
-
Engrave Mode:
-
Photo, Word, Scan, outline, Pixel Laser Engraving
-
Supported Formats:
-
jpg, bmp, svg, G-code
-
Material:
-
Stainless Steel and Acrylic
-
Control Software System:
-
CNC software
-
Engraving Accuracy:
-
0.01mm
-
Engraving Area:
-
650*500mm
-
Function:
-
Cutting Engraving Non-metal Materials
-
Certification:
-
CE,
-
Marketing Type:
-
Hot Product 2021

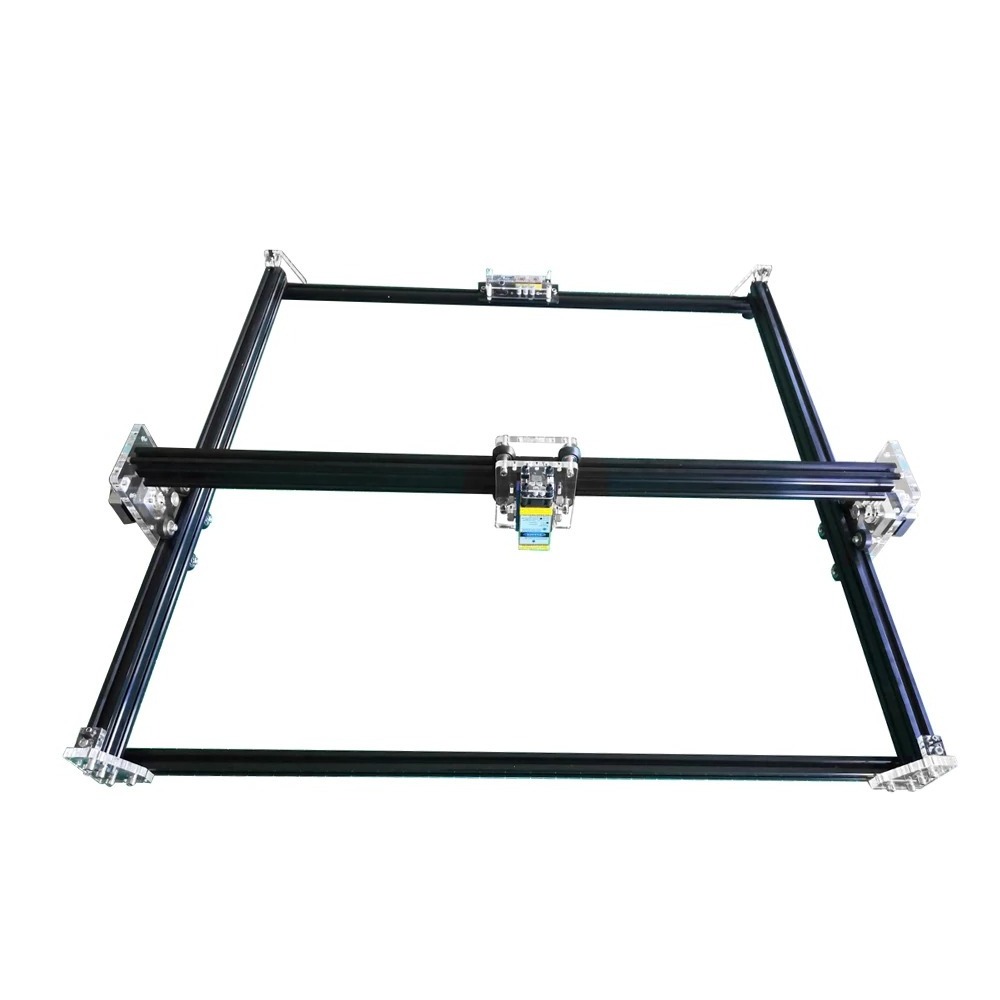

6565 CNC DIY 500mw laser head laser engraving machines on metal engraving
Feature:
--Aluminum and Acrylic frame tough and stable
--Fast laser head changing design
--Adjustable focus design for thicker material
--Big working area
--No limitation of engraving height
--Easy cool down laser head
--Lighter and easy to be carried
--The maximum engraving an area to achieve 65* 50CM
--Aluminum material, acrylic produced
--The software is easy to use, free upgrades for life.
--It can adjust laser power by software
Notice:
This paragraph engraving laser engraving machine is not available the following materials:
ceramics, jewelry, reflective material, a colorless transparent material, soft material.(It can not recommended to cut plywood)
This paragraph laser engraving machine can engrave the following materials:
Metal (only 7500mw laser can engrave on stainless steel ),Wood, plastics, paper, bamboo, horns, and some cortex (purse), cell phone plastic shell, rubber stamp, photosensitive chapter, sponges, paper,stone.
Specifications for 500mw laser head laser engraving machines on metal engraving
| Item | Specifications |
| Model | 65*65CM |
| Control Board | Lasrexe |
| Communication Port | MircoUSB |
| Laser Quick Replace | Support |
| Stepper Motor | 42H34S-1304A |
| Power Input | AC100-240V |
| Sysytem Support | Win XP/7/8/10 |
| Engrave Mode | Photo, Word, Scan, outline, Pixel Laser Engraving |
| Supported Formats | jpg, bmp, svg, G-code |
| Material | Stainless Steel and Acrylic |
| Working Voltage | DC 12V |
| Working Current | DC 2.5A |
| Laser Power | 2500mw/5500mw/carved stainless steel |
| Control Software System | cncc software |
| Engraving Accuracy | 0.01mm |
| Engraving Area6 | 5x50cm / 25.59 x 19.68inch (maximum) |
| Engraved object height limitatiion | No Limitation |
| Package Weight | 6kg |
| Can Engrave | Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather, |
| Sponge Paper, etc. | |
| Can not engrave | Metal(7500mw can), Stone, Ceramics, Glass, Reflective or Transparent Material |
| Certification | CE, (Please contact us if you need them) |
| Function | ideal for amateur laser engraving usage low-light positioning |
| and freedom positioning functions. | |
| Features | 65*50 ultra large engraving area,gantry shape design, |
| no engraving height limitation. | |
| Three stepper motor drive providing faster moving speed. | |
| 500mW violet laser module with heatsink, high laser | |
| engraving power and long-term available. | |
| can print any pictures easily |
Packaging Details
1.Inside :Plastic bags with foam For Machine.
2.Middle :Individual Carton packaging
