available source 'Ambient Air'.
ACE is huge in size and occupied large area that are capable of rejecting large amount of heat into the atmosphere.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OEM
-
Liquid Flow Rate:
-
Customized
-
Maximum Working Pressure:
-
Customized
-
Weight:
-
Customized
-
Dimension(L*W*H):
-
4000*4000*200(MAX), Up to 4000*4000*200mm L*W*H
-
Working Temperature Range:
-
Customized
-
Product Name:
-
Cheap finned tube air cooled heat exchanger
-
Max pressure:
-
Customized
-
Thermal capacity:
-
Customized
-
Fluid material:
-
Gas and Air
-
Gas flow rate:
-
Customized
-
Cold air flow rate:
-
Customized
-
Type:
-
finned tube air cooled heat exchanger
-
Surface finish:
-
Mill finish or custom
-
Application:
-
Oil & gas refineries, power plant and petrochemical plant
Quick Details
-
Structure:
-
Tube Heat Exchanger
-
Voltage:
-
220v/380v/customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OEM
-
Liquid Flow Rate:
-
Customized
-
Maximum Working Pressure:
-
Customized
-
Weight:
-
Customized
-
Dimension(L*W*H):
-
4000*4000*200(MAX), Up to 4000*4000*200mm L*W*H
-
Working Temperature Range:
-
Customized
-
Product Name:
-
Cheap finned tube air cooled heat exchanger
-
Max pressure:
-
Customized
-
Thermal capacity:
-
Customized
-
Fluid material:
-
Gas and Air
-
Gas flow rate:
-
Customized
-
Cold air flow rate:
-
Customized
-
Type:
-
finned tube air cooled heat exchanger
-
Surface finish:
-
Mill finish or custom
-
Application:
-
Oil & gas refineries, power plant and petrochemical plant
Product Description

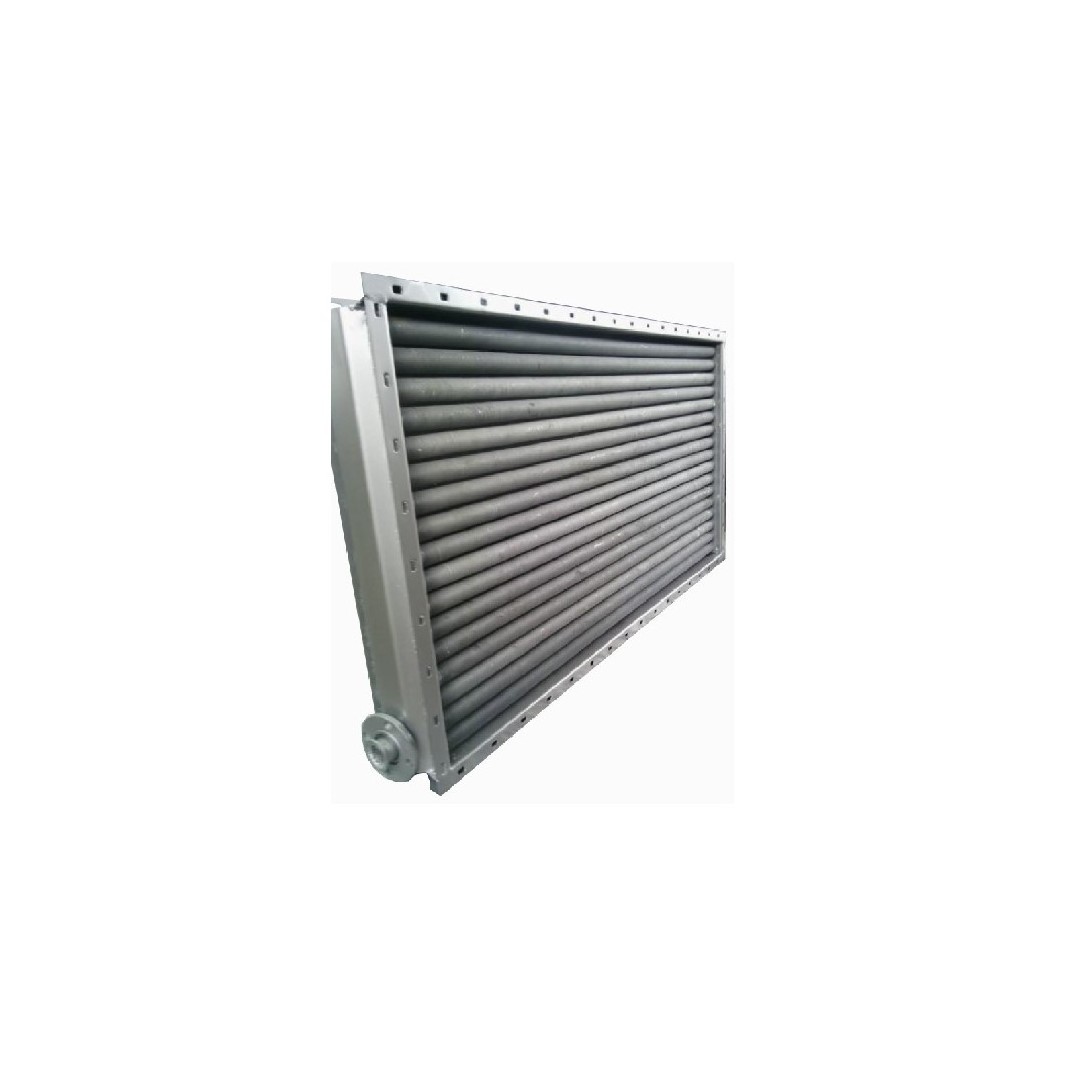

Air cooled heat exchanger/Finned tube air cooled heat exchanger/industrial air cooler
Air cooled heat exchanger/Finned tube air cooled heat exchanger/industrial air cooler
Air Cooled type Heat Exchangers (ACE) are widely used when cooling medium are not easily available. lt cools with the cheapest
available source 'Ambient Air'.
available source 'Ambient Air'.
PARAMETERS OF SPIRALLY WRAPPED FINNED TUBES
Outside diameter core tube:15 - 51mm
Diameter of the fins:28 - 82mm
Fin spacing:2 - 6mm freely selectable
Material of core tube:Copper, Cu-Ni-alloying, brass, carbon steel, stainless steel, titan
Material of fins:Copper, Aluminium, carbon steel, steel zinced
The fins are formed by extrusion from an aluminium outer tube onto the host tube. This results in a very good contact between the
host tube and the fin and an efficient corrosion protection.
Application temperature: max. 300°C
Material combinations:
Core tube: all metals
Fin: Aluminium
host tube and the fin and an efficient corrosion protection.
Application temperature: max. 300°C
Material combinations:
Core tube: all metals
Fin: Aluminium
The fin is wrapped under tension and mechanically embedded in a groove, which was spirally cut into the outside surface of the
tube. This results in a good, permanent bond between the fin and the tube.
Application temperature: max 400°C
Material combinations:
Core tube: Carbon steel, stainless steel
Fin: Carbon steel, aluminium
tube. This results in a good, permanent bond between the fin and the tube.
Application temperature: max 400°C
Material combinations:
Core tube: Carbon steel, stainless steel
Fin: Carbon steel, aluminium
An L-shaped band is spirally wrapped under tension over the outside surface of a tube. This results in a large contact area between the fin and the tube.
Application temperature: max. 130°C/max. 200°C
Material combinations:
Core tube: Carbon steel, stainless steel,
duplex
Fin: Aluminium
Application temperature: max. 130°C/max. 200°C
Material combinations:
Core tube: Carbon steel, stainless steel,
duplex
Fin: Aluminium
A band is spirally wrapped under tension over the outside surface of a tube. The special feature here is the corrugated fin foot,which enlarges the contact area between the fin and the tube. In addition, the fin is galvanized onto the tube for efficient heat transfer and excellent corrosion protection.
Application temperature: max. 380°C
Material combinations:
Core tube: Carbon steel, stainless steel
Fin: Carbon steel
Application temperature: max. 380°C
Material combinations:
Core tube: Carbon steel, stainless steel
Fin: Carbon steel
