- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YJ, YongJin
-
Dimension(L*W*H):
-
1.5*0.98*2.1m, 1.5*0.98*2.1m
-
Weight:
-
500kg
-
Power:
-
1.5KW
-
Commodity name:
-
weaving machine,price of weaving machine,industrial weaving looms
-
Model Number:
-
YJ-NF2/130
-
Place of origin:
-
GuangZhou, China
-
Export Markets:
-
Southeast Asia, the Middle East, Europe and America
-
Certification:
-
3C
Quick Details
-
Type:
-
Shuttleless Loom
-
Production Capacity:
-
300sets / month, 300sets / month
-
Application:
-
to produce various of narrow fabric, It can be used to produce various of elastic and non-elastic ribbons
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YJ, YongJin
-
Dimension(L*W*H):
-
1.5*0.98*2.1m, 1.5*0.98*2.1m
-
Weight:
-
500kg
-
Power:
-
1.5KW
-
Commodity name:
-
weaving machine,price of weaving machine,industrial weaving looms
-
Model Number:
-
YJ-NF2/130
-
Place of origin:
-
GuangZhou, China
-
Export Markets:
-
Southeast Asia, the Middle East, Europe and America
-
Certification:
-
3C
Product Description
We are manufacturer ( Quality Guaranteed , Integrity Services, Competitive price )

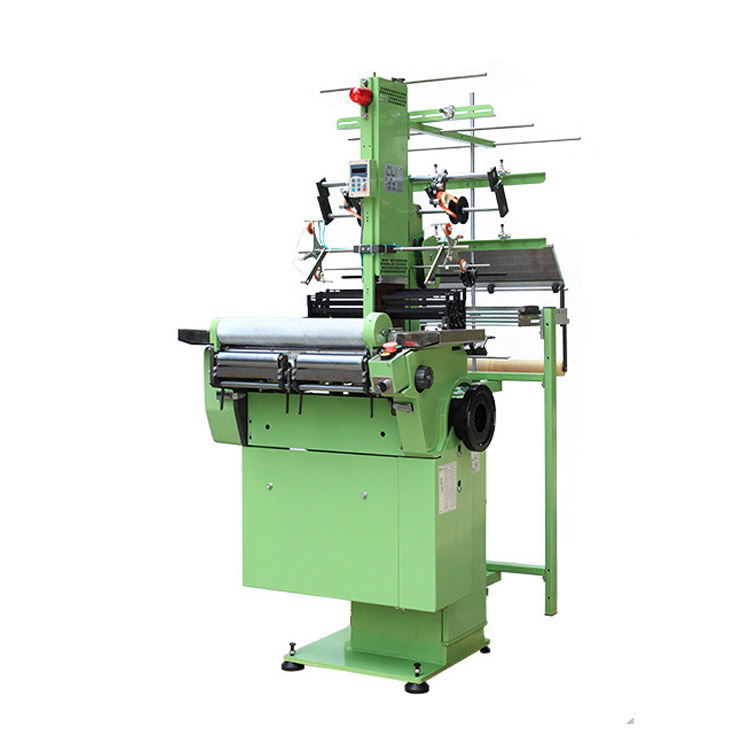

This is the shuttle less loom , this machine is to produce elastic belts, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller.
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link
https://youtu.be/80VmuYpsSWg
Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.
Video link
https://youtu.be/80VmuYpsSWg
|
Main Features
|
|
1. The machine is suitable for making elastic or non elastic narrow fabrics, like
underwear ribbon
,
shoose lace
,
shoulder strap
,
gifts lace
.
|
|
2. The width of machine body is
780mm
, and the capacity is 1.5 times that of the conventional model.
|
|
3. High speed, can be up to
1100-1300rpm.
|
|
4. Independent R & D and production of the machine, effectively control the quality of parts, so that the machine
life is long,
stable and reliable
.
|
|
5 Stepless frequency conversion motor,
easy to operation
,
saving labor
,
protecting the yarns
.
|
|
6. The
main brake system (patent no. ZL201320454993.0)
is stable and reliable, can protect yarns.
|
Product Paramenters
|
Model
|
NF2/130
|
NF2/175
|
NF2/210
|
NF4/66
|
NF4/84
|
NF4/110
|
|
Number of tapes
|
2
|
2
|
2
|
4
|
4
|
4
|
|
Width of reed
|
130
|
175
|
210
|
66
|
84
|
110
|
|
Maximum of tapes
|
128
|
170
|
200
|
65
|
80
|
100
|
|
Number of frames
|
20
|
20
|
20
|
20
|
20
|
20
|
|
Speed
|
300-1200
rpm |
200-800
rpm |
200-500
rpm |
600-1500
rpm |
500-1200
rpm |
500-1000
rpm |
|
Model
|
NF6/42
|
NF6/66
|
NF6/80
|
NF8/27
|
NF8/42
|
NF8/55
|
|
Number of tapes
|
6
|
6
|
6
|
8
|
8
|
8
|
|
Width of reed
|
42
|
66
|
80
|
27
|
42
|
55
|
|
Maximum of tapes
|
40
|
65
|
78
|
25
|
40
|
53
|
|
Number of frame
|
20
|
20
|
20
|
20
|
20
|
20
|
|
Speed
|
800-1700
rpm |
500-1200
rpm |
500-1000
rpm |
800-1700
rpm |
500-1200
rpm |
500-1000
rpm |
|
Model
|
NF10/27
|
NF12/27
|
NF14/25
|
NF6/42-2
|
NF8/27-2
|
NF16/15
|
|
Number of tapes
|
10
|
12
|
14
|
12
|
16
|
16
|
|
Width of reed
|
27
|
27
|
25
|
42
|
27
|
15
|
|
Maximum of tapes
|
25
|
25
|
23
|
40
|
25
|
13
|
|
Number of frame
|
20
|
20
|
20
|
20
|
20
|
20
|
|
Speed
|
500-1200
rpm |
500-1000
rpm |
500-1000
rpm |
500-1200
rpm |
500-1200
rpm |
500-1200
rpm |
