Quick Details
-
Brand Name:
-
Shengding
-
Dimension(L*W*H):
-
2000x1500x1200
-
Weight:
-
500kg-2000kg
-
Product Name:
-
Mobile fuel station
-
Type:
-
Explosion-proof
-
Application:
-
fuel refueling
-
Medium:
-
Diesel or gasoline
-
Material:
-
Carbon steel
-
Frame Shape:
-
Rectangular
-
Tank Shape:
-
Cylindrical
-
Feature:
-
Safe and Economic
-
Color:
-
Customer's Request
-
Option:
-
Generator
-
Certification:
-
ISO
Quick Details
-
Capacity:
-
1000L-5000L
-
Max Working Pressure(MPa):
-
0.1 MPa
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shengding
-
Dimension(L*W*H):
-
2000x1500x1200
-
Weight:
-
500kg-2000kg
-
Product Name:
-
Mobile fuel station
-
Type:
-
Explosion-proof
-
Application:
-
fuel refueling
-
Medium:
-
Diesel or gasoline
-
Material:
-
Carbon steel
-
Frame Shape:
-
Rectangular
-
Tank Shape:
-
Cylindrical
-
Feature:
-
Safe and Economic
-
Color:
-
Customer's Request
-
Option:
-
Generator
-
Certification:
-
ISO
Products Description

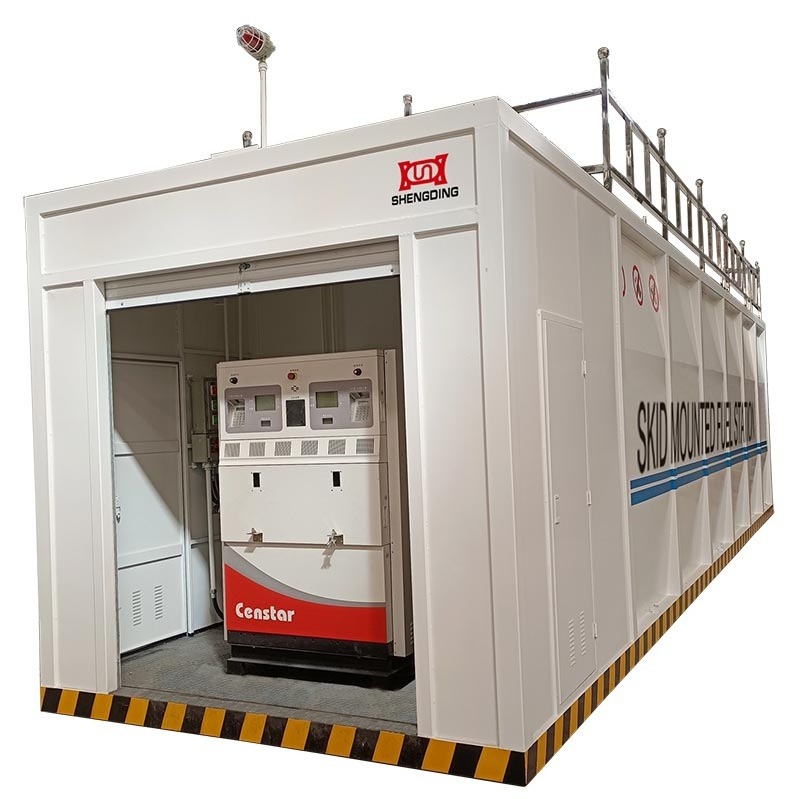

CONTAINER FUEL STATION
These fuel stations are suitable for petrol/diesel supply. The tank is manufactured with steel and has explosion-proof
design. They can also be placed out in the open. The pumping and measuring kit are protected and reliable.
CONFIGURATIONS
Tank compartment and pump compartment
Fuel tank
Pumping kit
Manhole cover
Fuel dispenser: Accuracy : ± 1%
Delivery hose
FEATURES
Chassis made of steel
Weatherproof
Explosion proof
Mechanical/digital options
* Please contact us for a larger range of fuel stations.
These fuel stations are suitable for petrol/diesel supply. The tank is manufactured with steel and has explosion-proof
design. They can also be placed out in the open. The pumping and measuring kit are protected and reliable.
CONFIGURATIONS
Tank compartment and pump compartment
Fuel tank
Pumping kit
Manhole cover
Fuel dispenser: Accuracy : ± 1%
Delivery hose
FEATURES
Chassis made of steel
Weatherproof
Explosion proof
Mechanical/digital options
* Please contact us for a larger range of fuel stations.
Specification
Total volume 2,000-40,000 liters, and can be customized.
|
S. No
|
Description of configuration
|
Specification
|
|
1
|
Explosion-proof storage tank
|
Total volume 5m3-40m3.
Tank steel Q235, submerged arc automatic welding process. |
|
2
|
Lightning and static protection set
|
With electrostatic grounding device
|
|
3
|
Explosion proof materials
|
V-type explosion-proof material
|
|
4
|
Fuel dispenser
|
Dispenser equipped with pump and filling gun
|
|
5
|
Fuel loading system
|
Explosion proof fuel pump with flow rate of 38m3 / h
|
|
7
|
Liquid level measurement system
|
Measuring range 0.5-3m, measuring error ± 1mm, with LCD, temperature monitoring function, high liquid level alarm and low liquid
level alarm. |
|
8
|
Airtight loading system
|
DN80 self-sealing ring valve is adopted for quick connection of oil loading port.
|
|
9
|
Discharging system
|
DN40 oil outlet pipe, equipped with maintenance protection device.
|
|
10
|
Emergency cut-off device
|
DN40 emergency cut-off valve, normally closed, automatically cut off oil in case of fire or emergency.
|
|
11
|
Painting
|
The equipment is polished, derusted and degreased.
With external three coats of painting: 80 micron epoxy zinc rich primer, epoxy micaceous iron midcoat, polyurethane cooling and fireproof finish. |
|
12
|
Other configuration
|
Anti-static system
Oil leakage detection device Manual oil measuring system Automatic fire extinguishing system Emergency pressure relief device Power supply system Anti-overflow system Lighting Filter unit Cleaning device Safety auxiliary facilities Door |
