Quick Details
-
Size:
-
70.4X60.4X13mm
-
Unlock Mode:
-
Smart Automatic
-
Material:
-
Zinc Alloy
-
Application:
-
Storage Cabinets/Parcel Cabinets/Mailbox
-
Working Voltage:
-
DC 12~24V
-
Working Current:
-
2.4A when working
-
Working Temperature:
-
-20°C~+70°C
-
Working Life:
-
200,000 Times of Open-close with 30-second Interval
-
Housing Test:
-
Pass 48-hour Salt-spraying Test
Quick Details
-
Place of Origin:
-
Xiamen,China
-
Brand Name:
-
Headleader
-
Model Number:
-
HLD3875
-
Size:
-
70.4X60.4X13mm
-
Unlock Mode:
-
Smart Automatic
-
Material:
-
Zinc Alloy
-
Application:
-
Storage Cabinets/Parcel Cabinets/Mailbox
-
Working Voltage:
-
DC 12~24V
-
Working Current:
-
2.4A when working
-
Working Temperature:
-
-20°C~+70°C
-
Working Life:
-
200,000 Times of Open-close with 30-second Interval
-
Housing Test:
-
Pass 48-hour Salt-spraying Test
Related Products
Product Paramenters
|
Product Name
|
electronic lock
|
|
Item No.
|
HLD3875
|
|
Material
|
Zinc alloy
|
|
Working Voltage
|
DC 12V~24V
|
|
Working Current
|
2.4A in working
|
|
Working Temperature
|
-20℃~ +70℃
|
|
Reaction Time
|
Less than 0.2msec
|
|
Working Life
|
200,000 times of open-close with intervals of 30s
|
|
Housing Test
|
Pass 48-hour salt-spraying test
|
|
Manner of Working
|
Open after power on
|
|
Working Humidity
|
5% ~ 95% RH
|
|
Signal Detection
|
Lock status feedback
|
|
Emergency Unlock
|
One mount
|
|
Relock Type
|
Auto & Delayed
|
|
Certification
|
CE, ISO9001, ROHS
|
Product Application
Product Description
-
Product Description
1.
Slim design
: HLD3875 is suitable for all kinds of doors, and it can be attached to the wall or arranged for a embedded-installation.
2.
Manual release upon emergency
: The lock is designed with an unlocking hole, which can be unlocked manually without doing harm to the cabinet.
3.
Lock status feedback
: There is a lock status detector, which allows you to monitor the status of lock/door by software.
4.
Working mode
: It unlocks at the moment of power-on (the power-on time is less than 1 second) and manual lock is acceptable.
5.
Safety
: Anti-vibration and anti-vandalism
6.
Self-protection
: We put two positioning columns in the lock in order to protect the internal parts, which might caused by the likely high-speed impact from the cabinets’ door panel.

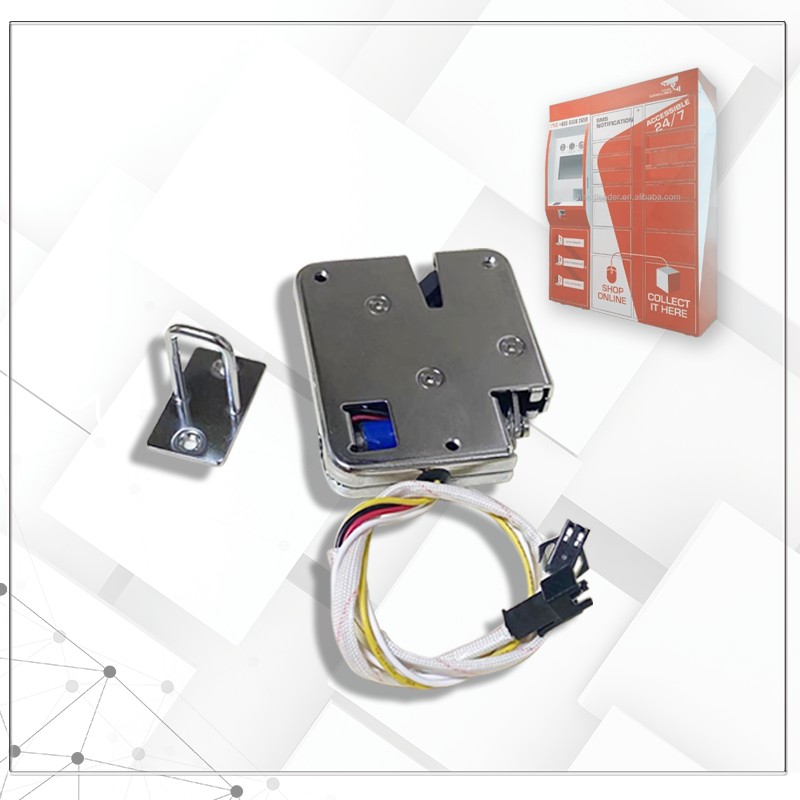

Products Show
Steel shell, electroplated and electrophoretic painted.
The open/close status signal can be detected by the built-in microswitch.
Users can press the lever to release the lock manually under power failure.
Product Usage
-
-
Product Usage Introduction
-
When HLD3875 powers on, the electromagnet drives the control piece to overcome the elastic force of the tower spring and makes it rotate until it reaches the release position. The blocking part will go away from the buckling part, and the locking piece will rotate to the unlocking position under the torsion-spring’s action. Then the opening status signal will be sent at the same time.
When HLD3875 needs to be locked, it can be easily locked with a gentle push, and the closing status signal will be sent at the same time.
Topological Diagram
(
Lock Control System)
We provide a complete set of mature lock control system, and the main control board is connected to the Internet through WIFI, TCP/IP, etc. External LCD display, IC card reading and writing module and the
terminal
electromagnet
lock
can also be connected to it.
Company Introduction
Headleader
is a hi-tech company located in Xiamen, which is
an important port city of
China. Since the establishment in 2009, Headleader has always been working on the development of IOT control systems. We stick to the principle of “Being professional, focusing on quality and always improving efficiency”, keep on delivering our customers the appropriate solutions for their requests.
Headleader specializes in designing and manufacturing electronic intelligent l ocks and lockers and various kinds of control systems. Headleader’s intelligent lockers, control system and electronic rotary lock are patented. The intelligent locker and its main parts are CE and UL certified. From the software to hardware, all major components are designed by Headleader itself. Headleader has distributed more than 6000 intelligent lockers and over 9000 control system kits to Europe, Asia and North America, providing solutions to logistics and storage industry, medical device industry, home automation industry, remote monitoring industrial purposes, etc.
Headleader majors in ODM & OEM, offering innovative and o ptimized solutions in the technology field of remote temperature controlling, UV application, refrigerated control system, customized HAVC devices, etc. High-quality products, stable delivery time, timely aftersales service, these advantages make us stood out from the market and win a great popularity among our clients worldwide.
Headleader specializes in designing and manufacturing electronic intelligent l ocks and lockers and various kinds of control systems. Headleader’s intelligent lockers, control system and electronic rotary lock are patented. The intelligent locker and its main parts are CE and UL certified. From the software to hardware, all major components are designed by Headleader itself. Headleader has distributed more than 6000 intelligent lockers and over 9000 control system kits to Europe, Asia and North America, providing solutions to logistics and storage industry, medical device industry, home automation industry, remote monitoring industrial purposes, etc.
Headleader majors in ODM & OEM, offering innovative and o ptimized solutions in the technology field of remote temperature controlling, UV application, refrigerated control system, customized HAVC devices, etc. High-quality products, stable delivery time, timely aftersales service, these advantages make us stood out from the market and win a great popularity among our clients worldwide.
attached much importance to technology upgrading, and obtained many patents in the field of intelligent cabinet system. At the
same time, Headleader gained ISO9001 certification in 2013, and its products have obtained UL, CE, ROHS and some other
certifications.
FAQ
1. Q: What’s the most advantages of your company?
A: Our company have own R&D team to provide ODM & OEM services to our customers.
2. Q: What kinds of lock control systems could be customized and supported by your company?
A: TCP/IP, WiFi, 4G, Lora and other communication methods can be customized
and supported.
3. Q: What is your sample policy?
A: Sample could be sent to test within 7 days after customers buy it on line directly, with the same
privilege of technology supported.
4. Q: What are the merits of Electric Locks compared with Solenoid Lock?
A: Motor driver, lower power consumption, stability, safety, durability, water-proof and
anti-vandalism etc.
5. Q: How does the smart locker work?
A: It’s well designed and controlled by the lock control system, please browse our
Topological
Diagram on each product details page.
