Quick Details
-
Dimension(L*W*H):
-
4000*2100*2300mm
-
Year:
-
2022
-
Power (kW):
-
74 kW
-
Weight (KG):
-
6000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
visit factory:
-
supply
-
sample processing:
-
supply
-
installation:
-
engineer guided
-
OEM:
-
supply
-
Certification:
-
ISO9001
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huahong
-
Voltage:
-
220,230,380v
-
Dimension(L*W*H):
-
4000*2100*2300mm
-
Year:
-
2022
-
Power (kW):
-
74 kW
-
Weight (KG):
-
6000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
visit factory:
-
supply
-
sample processing:
-
supply
-
installation:
-
engineer guided
-
OEM:
-
supply
-
Certification:
-
ISO9001
-
Marketing Type:
-
Ordinary Product
new design waste tyre recycling machine for rubber powder
Features of double shaft shredder machine
1.This series double shaft shredder is suitable for waste type, oil tank,bags,tyres,thin wood sheet,thin steel sheet, waste electrical shell, film etc.
2.Features: double blade shaft structure with multi-claw type blade. It can save energy and has strong strength. The blade is made of special steel through heating treatment with long life. It can be changed easily and can be reused again through repairing.
3.The gearbox adopt oil lubrication with low noise, big torque etc. Low speed and high torque design make low noise and little dust. It is specially for film, PP woven bag, etc. It also can be suitable for PP/PE baled film and PET bottle.
Main Technical Parameters
|
Model |
2000 |
1500(1600) |
1200 |
1000 |
800 |
600 |
|
Main power (kw) |
55KWx2 |
45KWx2 |
37KWx2 |
30KWx2 |
15kwx2 |
11kwx2 |
|
Shaft speed (r/min) |
30 |
30 |
30 |
30 |
30 |
30 |
|
Capacity(t/h) |
10-25 |
5-15 |
3-10 |
2-10 |
1-5 |
1-3 |
|
Cutter thickness and number |
40mm/50pcs |
40mm/40pcs |
40mm/30pcs |
40mm/24pcs |
40mm/20pcs |
40mm/14pcs |
|
Discharging size (mm) |
30-100 |
30-100 |
30-100 |
20-100 |
20-100 |
20-100 |
|
Hopper size (mm) |
2600x1400 |
2000x1400 |
2000x1400 |
1500x1000 |
1200x1000 |
1000x1000 |
|
LxWxH (mm) |
5500x2100x2900 |
4500x2100x2200 |
4000x2100x2300 |
3500x1800x2000 |
3000x1200x1900 |
2800x1200x1800 |

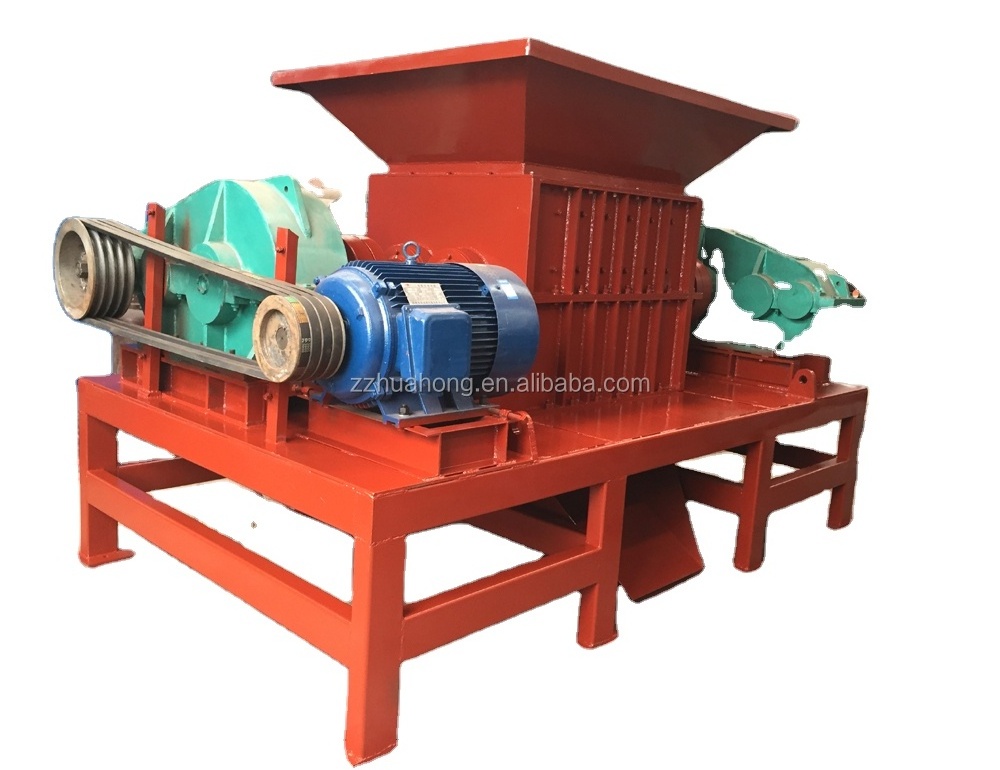

Our model 1200 shredder with red color:
'
This is our shredder for tyre trying:
We can supply whole production line including rubber crusher, rubber grinding machine, magnetic separator,centrifugal separator,belt conveyor
