Quick Details
-
Warranty(Year):
-
1-Year
-
Input Voltage(V):
-
110 ~ 220 VAC, 50~60HZ
-
Working Temperature(℃):
-
-20 - 60
-
Working Lifetime(Hour):
-
100000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
sunform
-
Emitting Color:
-
rgb
-
Viewing Angle:
-
H: 110° , V:110°
-
Material:
-
Die-casting
-
Control System:
-
NOVASTAR
-
Operation System:
-
Windows 98/me/2000 NT/XP/Win7
-
Temperature-Operating:
-
-20℃~60℃
-
Humidity-Operating:
-
10% ~ 90%
-
Defect Rate:
-
≤0.0001
-
MTBF/Life span:
-
MTBF/Life span 35,000 Hrs/ 100,000 Hrs
-
Certification:
-
CCC, CE, RoHs, ETL, FCC, CCC, CE, FCC, RoHS
Quick Details
-
Color Temperature(CCT):
-
4100K (Neutral White)
-
Type:
-
Ground Row Lights
-
Application:
-
hotel,wedding,party,disco,club,dj,concert,stage,etc
-
Warranty(Year):
-
1-Year
-
Input Voltage(V):
-
110 ~ 220 VAC, 50~60HZ
-
Working Temperature(℃):
-
-20 - 60
-
Working Lifetime(Hour):
-
100000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
sunform
-
Emitting Color:
-
rgb
-
Viewing Angle:
-
H: 110° , V:110°
-
Material:
-
Die-casting
-
Control System:
-
NOVASTAR
-
Operation System:
-
Windows 98/me/2000 NT/XP/Win7
-
Temperature-Operating:
-
-20℃~60℃
-
Humidity-Operating:
-
10% ~ 90%
-
Defect Rate:
-
≤0.0001
-
MTBF/Life span:
-
MTBF/Life span 35,000 Hrs/ 100,000 Hrs
-
Certification:
-
CCC, CE, RoHs, ETL, FCC, CCC, CE, FCC, RoHS
portable p5 p6 led screen indoor wedding hall interactive led dance floor with touch sensor
We have both 500x500mm and 500x1000mm cabinets for your selection.We can do both indoor and outdoor
| Item no. | SF-D481S | SF-D625S | SF-D100S |
| Pixel Pitch(mm) | 4.81 | 6.25 | 10 |
| Brightness(nit) | 800-1200 | 800-1200 | 800-1200 |
| Refresh rate (Hz) | 1920/3840 | 1920/3840 | 1920/3840 |
| Drive mode | 1/26S | 1/16S | 1/13S |
| Gray scale(bit) | 12~14 | 12~14 | 12~14 |
| Trillion | 1R1G1B | 1R1G1B | 1R1G1B |
| LED type | SMD 2121 | SMD 3535 | SMD 3535 |
| View angle(H/V) | 160~140 | 160~140 | 160~140 |
| Protection level (front/back) | IP65/IP55 | IP65/IP55 | IP65/IP55 |
| W/m2 Max power (max/average) | 800/350 | 800/350 | 800/350 |
| Carbinet | |||
| (mm) Carbinet size | 500×1000×80 | 500×1000×80 | 500×1000×80 |
| (Kg) Carbinet weight | 25 | 25 | 25 |
| Cabinet material | metal | metal | metal |
| (mm) Module size | 250×250 | 250×250 | 250×250 |
| Application Environment | |||
| Input ac voltage | 110-240V | 110-240V | 110-240V |
| Operating temperature | -20℃~50℃ | -20℃~50℃ | -20℃~50℃ |
| Operating humidity | 10%-95%RH | 10%-95%RH | 10%-95%RH |
| Control distance | Super five network cable: <100m; single mode fiber; <10 km | ||
Features of LED Interactive Video Dance Floor:
1. Fast and flexible installation: no direct installation or rail installation can be used.
2. High load-bearing performance: with a high load capacity of 1.5 tons per square meter.
3. Excellent maintenance performance: it can be exchanged directly without removing adjacent boxes
4. High contrast design: technical design mask, clear play effect
5. Excellent low brightness and high ash effect, showing the uniformity of gray uniformity and good consistency
Application:
Wedding,Party,Club, Concert, Nightclubs, DISCO , Supermarket, children‘s playground etc.
Details:
The details of connection between support and cabinet:

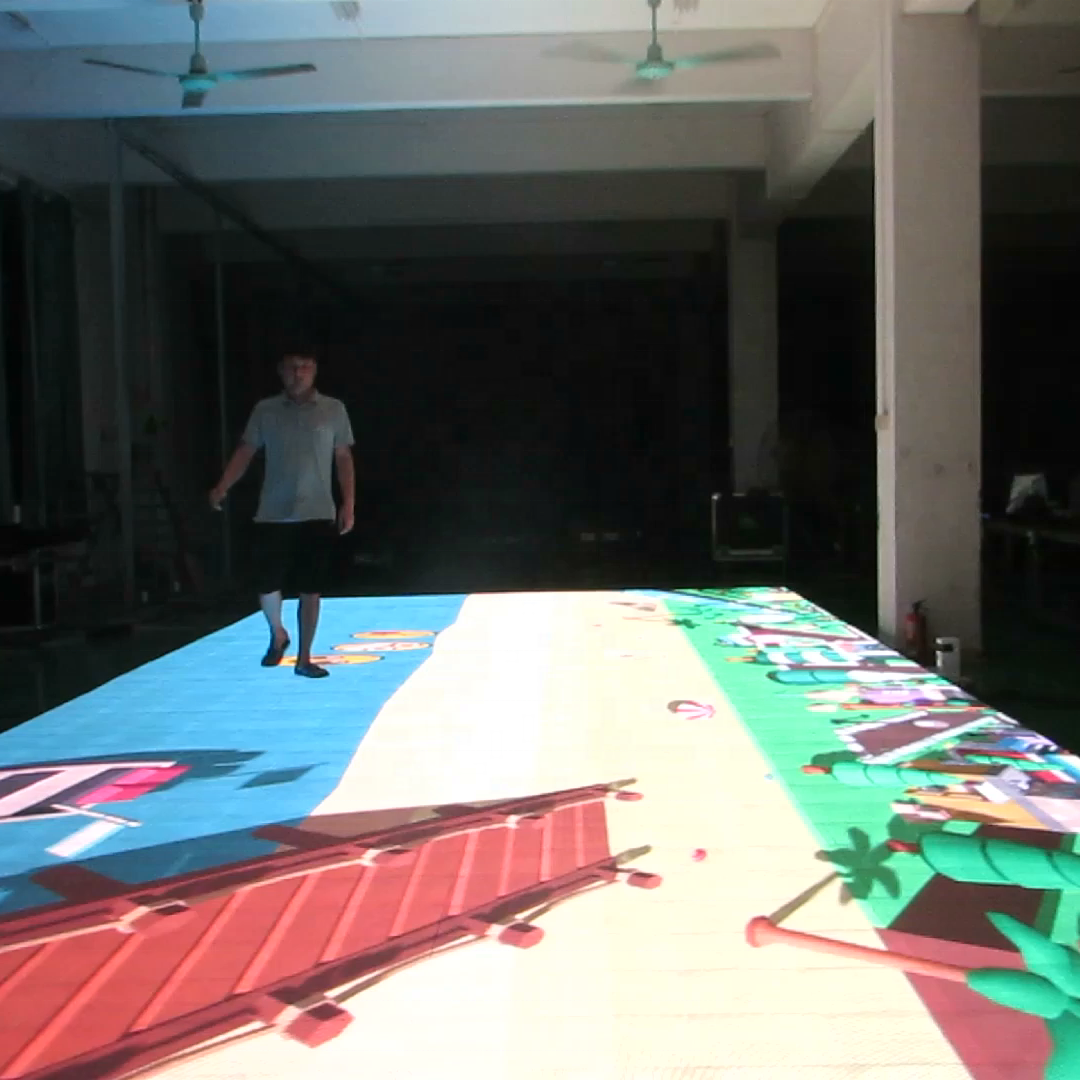

Testing of dance floor led screen:
