1) Work for digging projects, landscaping, moving materials and more
2) Performance with economy: one machine can do two kinds of work, dig and load.
3) Hydraulic joystick, A/C and Reverse camera are standard spec
4) The relatively small frame size and versatility our backhoe loaders improve construction productivity and lower your machine
operating costs.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
7000 x 2,300 x 3,100MM
-
Machine Weight:
-
7600 kg
-
Bucket capacity:
-
1.5m3
-
Max. Dumping Height:
-
3900mm
-
Max. Digging Depth:
-
4100mm
-
Color:
-
Customize
-
Tier:
-
16/70-24
Quick Details
-
Engine Brand:
-
Standard engine is Yunnei brand
-
Power:
-
85kw
-
Brand Name:
-
HERACLES
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
7000 x 2,300 x 3,100MM
-
Machine Weight:
-
7600 kg
-
Bucket capacity:
-
1.5m3
-
Max. Dumping Height:
-
3900mm
-
Max. Digging Depth:
-
4100mm
-
Color:
-
Customize
-
Tier:
-
16/70-24
MAIN PRODUCTS
PRODUCT SPECIFICATIONS

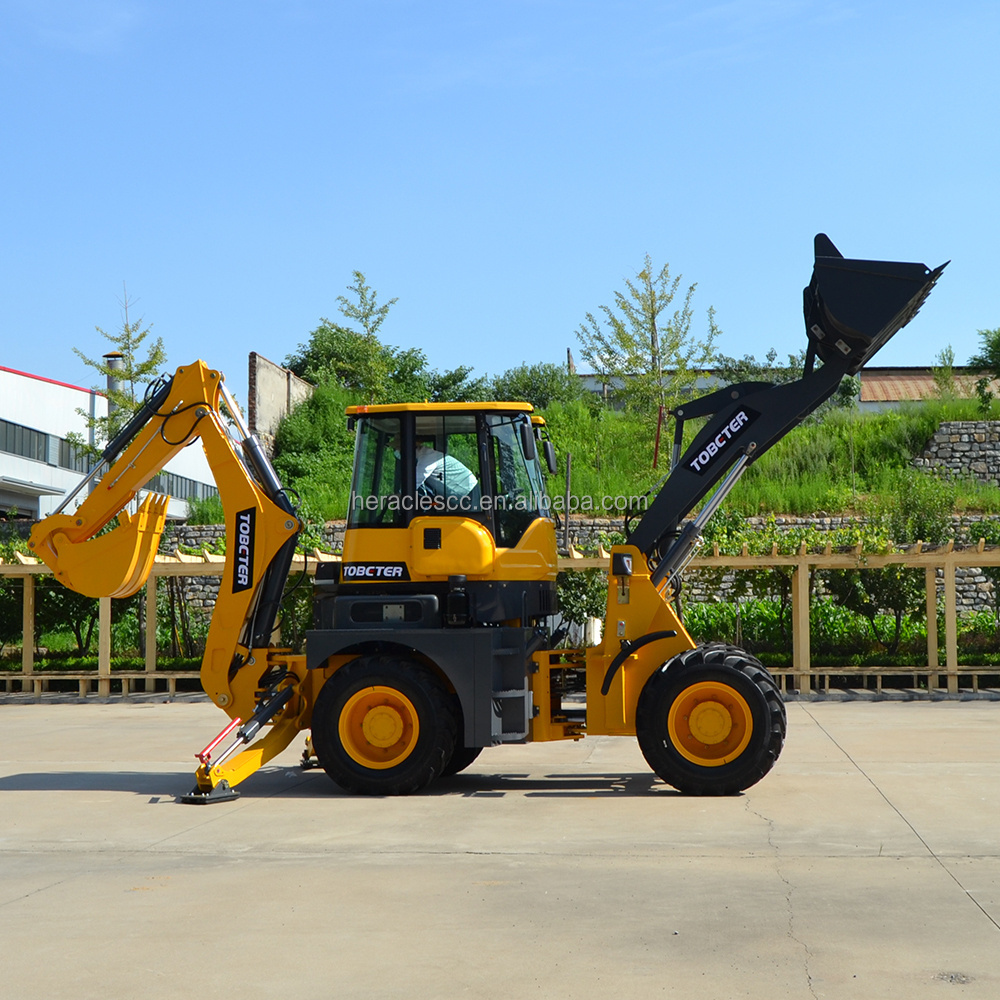

Backhoe Loader
|
Performance
|
Length x Width x Height:7000 x 2,300 x 3,100MM
|
|
|
Cab Roof Height: 2,900MM
|
|
|
Wheel Base: 2,250MM
|
|
|
Track: 1,640MM
|
|
|
Min. Ground Clearance: 300MM
|
|
|
Total Weight: 7600KG
|
|
|
Maximum Speed: 35Km/h
|
|
|
Maximum Grade ability Capacity: 30°
|
|
|
Loading Bucket Capacity: 1.5CBM
|
|
|
Loading Capacity: 2,800KG
|
|
|
Bucket Discharge Distance: 1,048MM
|
|
|
Backhoe Bucket Capacity: 0.3CBM/600MM width
|
|
|
Backhoe Discharge Height: 3,878MM
|
|
|
Maximum Digging Depth: 4,000MM
|
|
|
Minimum Turning Radius: 5,688MM
|
|
|
Bucket Slewing Angle: 180°
|
|
Diesel Engine
|
Model: Yuchai turbocharged engine
|
|
|
Engine Power:85KW
|
|
|
Type: Inline, direct injection, four-stroke, liquid cooled
|
|
|
Optional engine: same with offer sheet
|
|
|
Rated Speed: 2,400RPM
|
|
Transmission System
|
Type of Hydraulic Pump: Fixed shaft power shift transmission
|
|
|
Gear Shift: 2 forward shift 2 reverse shift
|
|
|
Torque: YJ-280
|
|
|
Pump: 2*63 model
|
|
Steering System
|
Type: Articulated hydraulic steering
|
|
|
Steering Angle: 36°
|
|
|
Minimum Turning Radius: 5,018MM
|
|
Axles
|
Heavy big reducer axle
|
|
Tyre
|
16/70-24
|
|
Brake System
|
Service Braking: Air over hydraulic disc on 4 wheels
|
|
|
Parking Brake: Manual parking brake
|
|
Hydraulic System
|
System Flow: 140L/Min
|
|
|
Bucket Digging Capacity: 46KN
|
|
|
Bucket Stick Digging Capacity: 31KN
|
|
|
Bucket Hydraulic Translation Function: Yes
|
ATTACHMENTS LIST
RATED PRODUCTS
Hot sale new products
HR180 wheel loader
This model is same series with HR180 wheel loader.
Rated Capacity: 800kg
Total weight: 2000kg
Engine model: Kubota/Yanmar/XINCHAI with EPA4 and Euro5 tier
Lifting height: 2617mm
One 40HQ container can load 7 sets
This model is same series with HR180 wheel loader.
Rated Capacity: 800kg
Total weight: 2000kg
Engine model: Kubota/Yanmar/XINCHAI with EPA4 and Euro5 tier
Lifting height: 2617mm
One 40HQ container can load 7 sets
New design telescopic loader
HR580T telescopic wheel loader, you can check the details by the left photo
Rated Capacity: 2500kg
Total weight: 6500kg
Engine model: Cummins with EPA4 and Euro5 tier
Max. dumping height:4100mm
Bucket capacity: 1.3cbm
One 40HQ container can load two sets
Rated Capacity: 2500kg
Total weight: 6500kg
Engine model: Cummins with EPA4 and Euro5 tier
Max. dumping height:4100mm
Bucket capacity: 1.3cbm
One 40HQ container can load two sets
Backhoe loader
This series backhoe loader toal have severn models, from 1 ton to 3 ton. Include WZ15-10, WZ25-18, WZ28-20, WZ30-25, WZ40-28,
WZ30-25 deluxe and WZ40-28 deluxe model. The Max. digging depth can reach 5m.
Backhoe loaders are very common and can be used for a wide variety of tasks: construction, small demolitions, light transportation
of building materials, powering building equipment, digging holes/excavation, landscaping, breaking asphalt, and paving roads.
WZ30-25 deluxe and WZ40-28 deluxe model. The Max. digging depth can reach 5m.
Backhoe loaders are very common and can be used for a wide variety of tasks: construction, small demolitions, light transportation
of building materials, powering building equipment, digging holes/excavation, landscaping, breaking asphalt, and paving roads.
