- Product Details
- {{item.text}}
Quick Details
-
Drilling Speed:
-
30-60mm/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TeRui
-
Model Number:
-
DD703.30
-
Voltage:
-
50hz.380v
-
Dimension(L*W*H):
-
1260*1160*1900
-
Power (kW):
-
3
-
Weight (KG):
-
800 KG
-
Workbench size:
-
260*380mm
-
X-Y travel:
-
300*400mm
-
Spindle servo travel:
-
300mm
-
Spindle head travel:
-
200mm
-
Spindle head speed:
-
20-120rpm
-
Clamping electrode diameter:
-
0.3-3mm
-
Guide and table distance:
-
300mm
-
Taper:
-
0
-
Advantage:
-
Good stability and low electrode consumption
-
Certification:
-
ISO CE
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
3 mm
-
Range of Spindle Speed(r.p.m):
-
20 - 120 r.p.m
-
Drilling Speed:
-
30-60mm/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TeRui
-
Model Number:
-
DD703.30
-
Voltage:
-
50hz.380v
-
Dimension(L*W*H):
-
1260*1160*1900
-
Power (kW):
-
3
-
Weight (KG):
-
800 KG
-
Workbench size:
-
260*380mm
-
X-Y travel:
-
300*400mm
-
Spindle servo travel:
-
300mm
-
Spindle head travel:
-
200mm
-
Spindle head speed:
-
20-120rpm
-
Clamping electrode diameter:
-
0.3-3mm
-
Guide and table distance:
-
300mm
-
Taper:
-
0
-
Advantage:
-
Good stability and low electrode consumption
-
Certification:
-
ISO CE

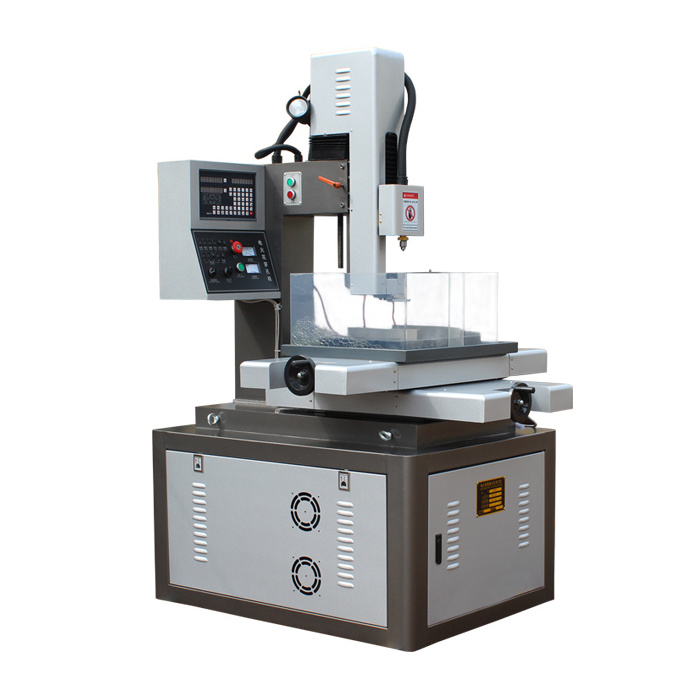

DD703.30 high speed small hole drilling edm machine
| Model Number | DD703.30 | DD703.50 |
| X-Y travel(mm) | 300*400 | 500*630 |
| Workbench size(mm) | 260*380 | 700*1000 |
| Spindle servo travel (mm) | 300 | 600 |
| Spindle head travel (mm) | 200 | 500 |
| Spindle head speed | 20-120rpm | 20-120rpm |
| Electrode wire diameter (mm) | 0.3-3 | 0.3-3 |
| Maximum distance between the director and the table (mm) | 300 | 500 |
| Input power(KW) | 3 | 3 |
| Dimension (mm) | 1260*1160*1900 | 2000*1500*1900 |
Q:Could you print the logo or company name on the products or package?
A:Yes. Customer's logo or company name can be printed on products or package,we will do what you want.
Q:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!
Q: Could I visit your factory ?
A:Yes.Welcome to our factory.
Q: How to solve the failure problems after-sales?
A: Please send us photos or video of the problems.After we confirm the problems,we will provide corresponding solution.
DD703.30 spindle head speed 20-120 rpm small hole edm drill
