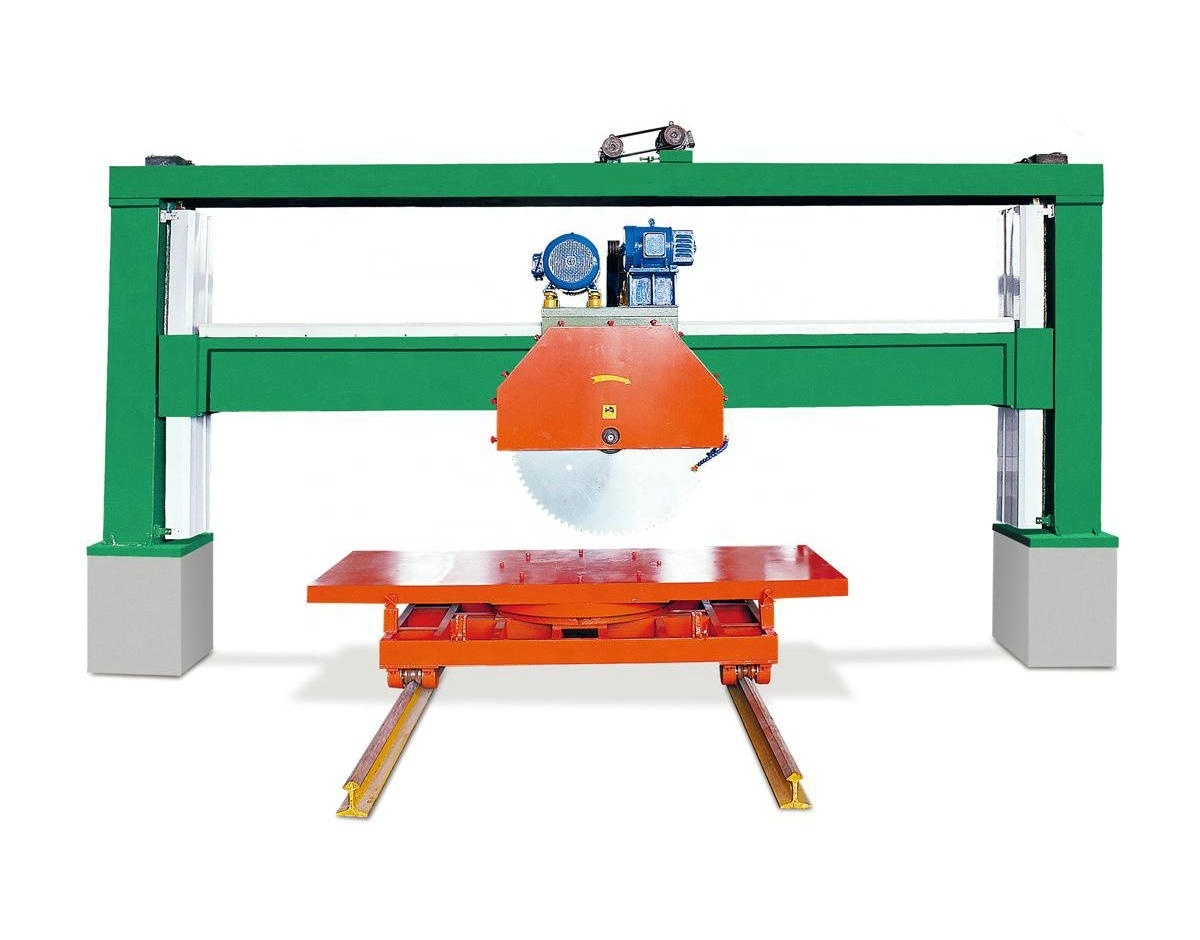

HSQ-2500 Gantry stone block trimming dressing squaring cutter machine

HSQ-2500 Gantry stone block trimming dressing squaring cutter machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $27700

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Production Capacity:: smart fast processing.

Place of Origin:: Fujian, China

Brand Name:: Topland

Voltage:: 380V, 50HZ, 3Phases/as request

Weight:: 125000Kg

Model:: HSQ-2500

Max blade diameter:: 2500mm

Max cutting length:: 4200mm

max cutting height:: 1500mm

max cutting width:: 2500mm

Power of main motor:: 37Kw

Function-1:: cutting block into slabs

Function-2:: Big block dressing-squaring

After Warranty Service:: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location:: Egypt, United States, Viet Nam, Saudi Arabia, Pakistan, India, Mexico, Russia, Ukraine

After-sales Service Provided:: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Certification:: ISO,CE

Quick Details

Type:: Stone Cutting Machine

Power:: 37Kw

Cutting thickness (max):: 1500mm

Production Capacity:: smart fast processing.

Place of Origin:: Fujian, China

Brand Name:: Topland

Voltage:: 380V, 50HZ, 3Phases/as request

Weight:: 125000Kg

Model:: HSQ-2500

Max blade diameter:: 2500mm

Max cutting length:: 4200mm

max cutting height:: 1500mm

max cutting width:: 2500mm

Power of main motor:: 37Kw

Function-1:: cutting block into slabs

Function-2:: Big block dressing-squaring

After Warranty Service:: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location:: Egypt, United States, Viet Nam, Saudi Arabia, Pakistan, India, Mexico, Russia, Ukraine

After-sales Service Provided:: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Certification:: ISO,CE

Features & Function

FEATURE DESCRIPTION | *****

1: Total cast iron building

2: Heavy type stone machine

3: Reliable design, ideal for cutting large stone block into slabs.

4: Compact advance structure.

5: Easy operation and maintaining

Original Manufacturing Products

MACHINE FUNCTION | *****

1: Cutting large stone blocks into slabs

2: Dressing irregular granite blocks into square

3: Squaring marble blocks for gangsaw processing.

4: Stone tombstone process cutting

5: Curbstone cutting

6: Thick slabs cutting.

Technical Parameters

TOPLAND \| HSQ-2500 Gantry Type Stone Block Cutting Machine
Model	HSQ- 2500	HSQ-3500
Blade max.diameter	2500mm (SINGLE BLADE ONLY)	3500mm (SINGLE BLADE ONLY)
Num.of (MULTI-BLADE)	6PCS(3×Φ1650+3×Φ980)	6PCS(3×Φ1650+3×Φ980)
Lifting stroke	1500mm	2000mm
Transverse cutting travel	4200mm	4200mm
Max.cutting size(LxWxH)	4000×2500×1500mm	4000×2500×2000mm
Sprindle drive motor	37KW	45KW
Gross weight	12500kg	13500kg

Big-Medium-Small Multi-Blades.

Depends on the max Dia of blades, it can fix with 5/7/9/11 Blades

Single-One-Blade.

Single 2500mm or 3500mm Blades

Big-Small Multi-Blades.

6pcs 1650mm +6 Pcs 980mm Blades

Video & Photo Album

Our Service

PRE-SALES SERVICES |*****

^ Inquiry and consulting support.
^ Suggest correct and suitable machine based on customer's production requirements.
^ Design whole production flow from A-Z. etc

^ To do all necessary assitant for customer before order placed.

AFTER-SALES SERVICES | *****

^ Provide necessary pictures video drawings instruction to assist machine installation and operation.
^ Engineers available to service machinery overseas.

^ Provide spare parts and maintaining solutions.

Our engineer do installation and test running of our machine in abroad.

Engineer service in Vietnam to do daily checking of machine running situation.

The egnineer do maintaining service in overseas countries are available.

FAQ

HOW TO BUY MACHINE FROM TOPLAND | *****

Firstly , customer will have to provide full information about processing demand , such as block size, finished products size, and production capacity per day etc. Then we will design a production flow and suggest suitable machine. Second , cutomer place the order, we start to prepare the machine. Third , Machine ready and shipped to Customer, we will arrange engineer to do installation based on customer requirement or not ......

DELIVERY TIME | *****

Some machine are stocked and ready for shipment . Some are not , and will take 7~45 days to produce.

PRICE TERM |*****

Normally , we dealing with terms of FOB China port , while CIF , CFR also provided.

Payment method will be TT or LC in RMB /USD

WARRANTY PERIOD | *****

Machine warranty period within 12 months.
